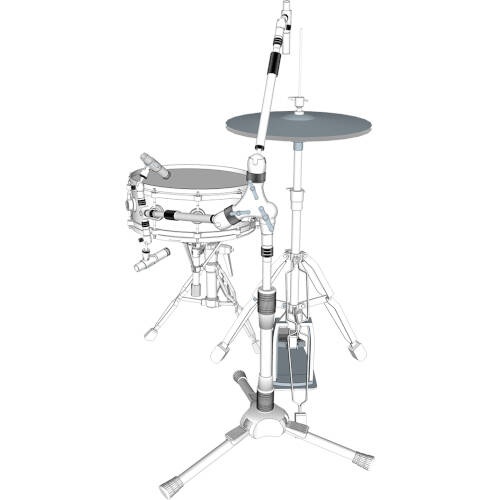

Triad-Orbit Hi-Hat Top and Bottom Snare System

We used a T1, O2x, IO-Vector,and M2‘s.

With Triad-Orbit’s modularity you can build virtually anything.

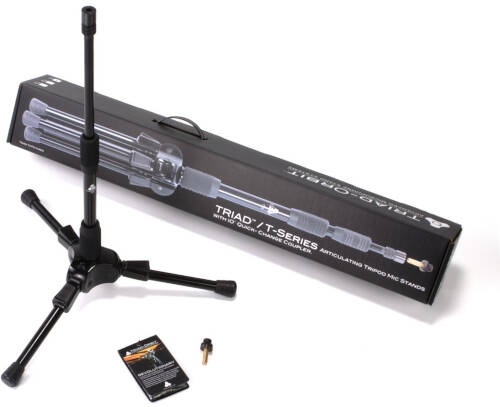

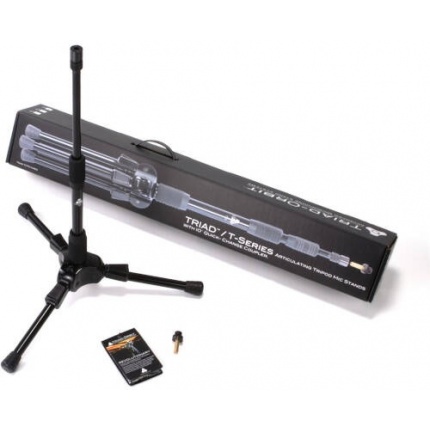

TRIAD ORBIT T1 TRIAD SERIES SHORT TRIPOD STAND
The Triad-Orbit T1 Triad Series short tripod stand is designed to accommodate applications that call for stable, low-profile microphone, camera, and light placement.

With a height range of 21 to 35.8" and a footprint range of 12.3 to 16.5", the T1 is effective for use in the studio, on stage, or in the field. Additionally, each leg can be adjusted to allow for angled positioning.

The T1 features a standard 5/8" thread and a 5/8" to 3/8" adapter for compatibility with a variety of equipment. It is also equipped with an IO-H1 quick-change coupling system to mate with IO-equipped hardware, making it ideal for quickly changing microphones and booms without having to unscrew anything

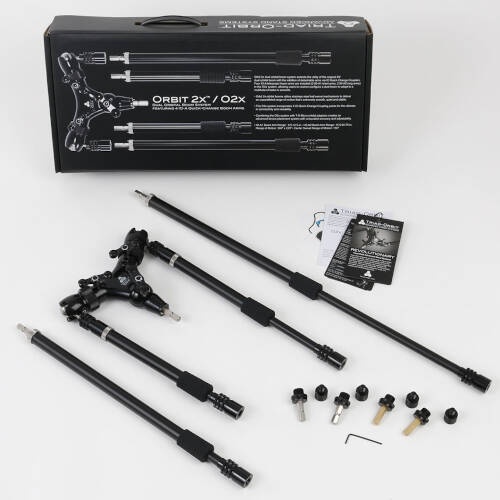

TRIAD ORBIT O2X DUAL ORBITAL BOOM SYSTEM WITH INTERCHANGEABLE ARMS
Providing you with the option of multiple boom lengths, the Orbit 2X Dual Orbital Boom System from Triad-Orbit includes 2 IO-A1 boom arms and 2 IO-A2 boom arms. The IO-A1 booms have an adjustable length of 9.5 to 12.5", while the IO-A2 boom arms can be adjusted between 15.5 to 24.75". They all feature IO quick-change couplers for quick swapping.

The system incorporates the company's Micro Orbital adapters which provide 360°x230° range of motion and a center swivel range of motion of 150°.

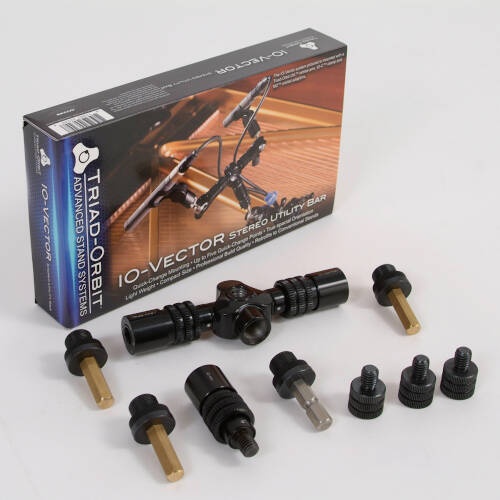

TRIAD ORBIT IO-Vector IO-EQUIPPED UTILITY MOUNTING BAR
The new IO-Vector takes the traditional stereo bar to a new dimension–literally. IO-Vector provides four points of connectivity for 3-D positioning of creative, medical and industrial devices. IO-Vector is bundled with IO-R38 quick-change coupler.

Integrating Micro adapters and IO-A telescoping boom arms greatly expands the capabilities of IO-Vector including innovative left / right stereo imaging, Decca trees and 3D video.

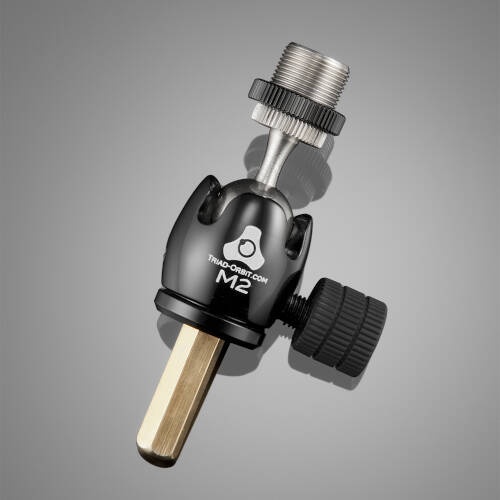

TRIAD ORBIT M2 SHORT STEM ORBITAL MIC ADAPTER
MICRO orbital adapters are miniature versions of ORBIT orbital booms, exhibiting the same enhanced range of motion, thanks to the unique ball swivel mechanism. Using MICRO adapters in conjunction with ORBIT booms, clamps, or wall/ceiling mounts exponentially increases the accuracy and versatility of any microphone, camera, or lighting stand.

The MICRO M2 orbital adapter features unprecedented range of motion purpose-built for applications where precision placement of microphones, cameras, or other devices is required. The exclusive Compass Point ball swivel housing solidly secures attached devices in any mounting position.

All MICRO orbital adapters are IO-equipped, giving them quick-change compatibility with all Triad-Orbit IO (input/output) capable products. Conventional stands can benefit from TRIAD-ORBIT quick-change innovation with the addition of MICRO and IO aftermarket components. Retrofitting conventional stands and boom arms with MICRO(r) and IO(r) aftermarket components provides an instant upgrade in functionality.

In the Box:

TRIAD ORBIT T1 TRIAD SERIES SHORT TRIPOD STAND x 1
TRIAD ORBIT O2X DUAL ORBITAL BOOM SYSTEM WITH INTERCHANGEABLE ARMS x 1
TRIAD ORBIT IO-Vector IO-EQUIPPED UTILITY MOUNTING BAR x 1
TRIAD ORBIT M2 SHORT STEM ORBITAL MIC ADAPTER x 3
