CA601
The CA601 60-Watt Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. The CA601 is easy to install and operate – even for non-technical personnel. Simply put, the CA601 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.Energy Star* Certified
Not only does CA601’s direct drive constant power technology provide superior audio performance and reliability, it also consumes less mains power than competing models, which has earned it Energy Star certification.This amazing technology makes it possible to design and build powerful amplifier systems that not only save money on the electrical bill, but also reduce the requirements and cost at the installation for the mains supply. In fact, it is likely that installation can be done utilising the in-place mains infrastructure. This adds up to significant installation and operational savings and protects the environment.
Easy to Install
The CA601 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.Automatic Power On/Off
The CA601 has a flexible power scheme with seamless and automatic power on/off based on the input signal, which reduces consumption when a signal is not present. With virtually zero configuration required, an energy smart and hassle-free amplifier system can easily be set up for hands-off operation. If the CA601 is powered on but does not receive an input signal for 20 minutes, the system automatically enters sleep mode to reduce power consumption. As soon as the Auto Ramp circuit detects a signal, the system powers on and normal operation resumes. The amplifier can also be instantly forced into standby mode or awakened via the front panel power button.Sublimely Simple Controls

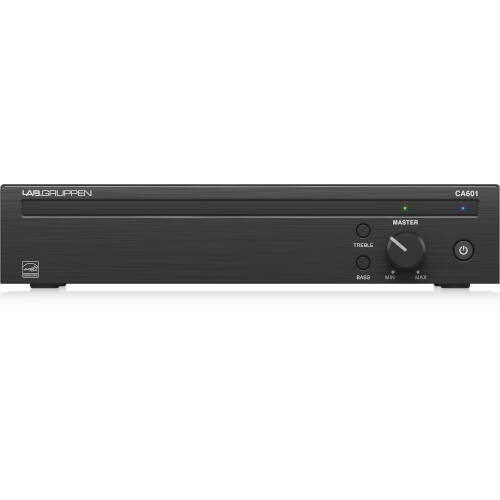

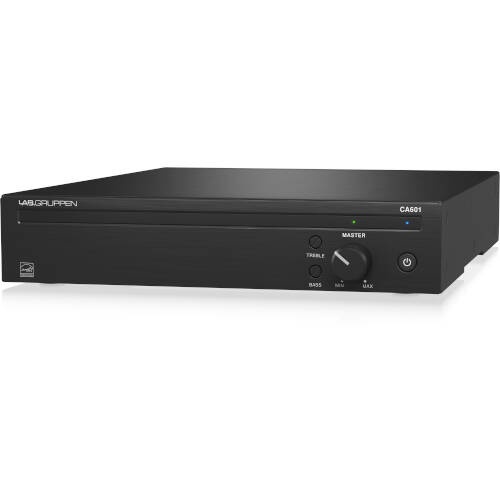

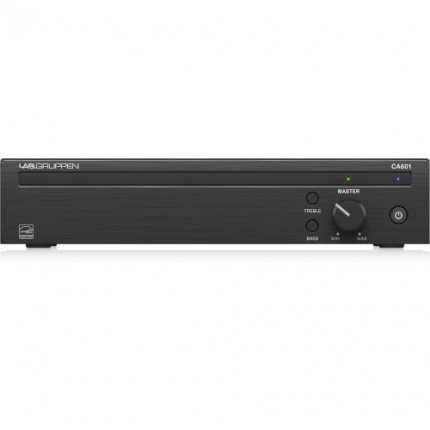

CA601’s controls are sublimely intuitive, allowing the operator to quickly make adjustments. The front panel power button and Master volume knob are easily accessible, enabling virtually anyone to operate the system. Bass and Treble controls are also available for fine tuning – but require a tool when making changes.Easy to Hook Up

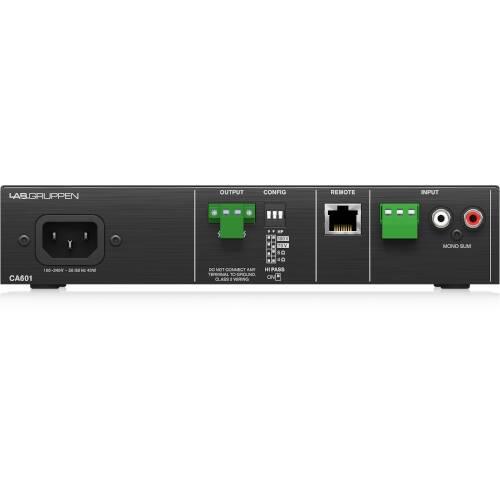

For connecting a balanced source such as a mixer or audio processor, a standard 3-pin Euroblock Input socket is provided. Alternatively, RCA cables can be connected for unbalanced stereo sources (summed to mono), such as players, phones or computers, however only one input source should be used at a time. Loudspeaker Output is provided in the form of a standard 2-pin Euroblock socket.Output Configuration
Intuitive configuration of the flexible output channels is provided directly adjacent to the rear panel Euroblock output connector with dipswitches, which allow selection of 100 V, 70 V, 8 Ω, or 4 Ω operation. This configures both the maximum voltage of the output and the gain through the device. An individual control engages the built-in high-pass filter, which should be used on all constant voltage systems to avoid saturation on transformer-enabled loudspeakers and to help maintain sound integrity.Expandable Remote Control
The RJ45 receptacle on the rear panel opens up a broad range of remote control options, including the CRC-V Series of wall controllers and a stylish tabletop controller, the LAB.LEVEL. All can be interconnected via inexpensive and readily-available Ethernet cabling.System Scalability
Commercial installs vary widely in scope and often grow and change over time. The CA601 is part of a family of products that provides both single and dual zone products that are perfect for building out a system to any size. With its individual zone volume and remote control capabilities, the CA601 is an ideal building block for a dynamic and scalable system solution.Real-World Energy Savings
The CA601 60-Watt Commercial Amplifier makes it easy to bring highest-quality music and announcements to commercial and industrial environments in an easy to integrate – and even easier to operate system. Plus, with features such as its Auto Ramp and revolutionary direct drive constant power technology, the Energy Star certified CA601 can generate enough energy savings to pay for itself in virtually no time at all.In the Box:
Lab.Gruppen CA601 60W Commercial Amplifier
Power Cord
Euroblock Input Connector
Euroblock Output Connector
2 x Coupling Plates with Screws
Long Angle Bracket
Rear Flat Bracket
Rear Angle Bracket with Shoulder ScrewAmplifier
Number of Channels 1
Power Rating 4 Ohms / 8 Ohms / 70 V / 100 V:
1 x 60 W Peak
Amplifier Class Class-D
Load Impedance / Voltage Mono:
4 / 8 Ohms (Minimum)
Mono:
70 / 100 V (Minimum)
Performance
Protections DC Fault, Overcurrent, Thermal, Ultrasonic
Frequency Response 20 Hz to 20 kHz +0.5/-1 dB
Input Sensitivity Euroblock Line:
1.23 V
RCA Line:
0.62 V
Input Impedance Euroblock Line:
20 Kilohms (Balanced)
Euroblock, RCA Line:
10 Kilohms (Unbalanced)
Max Input Level +22 dBu / 9.75 V
SNR > 97 dBA
Distortion 0.05%
Signal Processing
Crossover Yes
EQ 2-Band Shelving EQ per Channel
Filters 1 x High-Pass:
80 Hz
Ducking/Muting No
Limiting Output
Connectivity
I/O 1 x Euroblock 3-Pin Female Balanced Line Input
1 x 2RCA TS Female Unbalanced Line Input
Digital I/O None
USB None
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
AC Power Connector 1 x IEC 15 A / NEMA 5-15
Power Consumption 4 Ohms:
40 W (1/8 Power)
Physical
Rackmount Size 1 RU (with Included Hardware)
Cooling Convection
Certifications CCC, CE, ENERGY STAR, PSE, RoHS, cTUVus, as per Manufacturer
Dimensions 8.6 x 1.7 x 11.8" / 218.4 x 43.2 x 299.7 mm
Weight 5.3 lb / 2.4 kg
Packaging Info
Package Weight 6.25 lb
Box Dimensions (LxWxH) 15.6 x 11.4 x 4.5"
