Touchscreen Interface
PRIME 2's, 7" multitouch, multi-gesture display gives DJs fingertip control of music library navigation, search and track load. Large, color waveforms and essential DJ workflow information is shown as well as access to PRIME 2 preferences and performance customization.
The Power of Engine OS
Powered by a dedicated, multi-core internal processor, the PRIME 2 runs ‘Engine OS.’ A purpose-built embedded software platform built for DJs offering you super-fast track load times, intuitive navigation, management, and search, so you can be at your creative best. The mission for Engine OS is clear, to keep evolving, providing more creative features to enhance the DJ’s performance and experience.
Standalone Digital Media + Streaming
Multiple (USB/SD) media sources and a built-in SATA drive bay give DJs unlimited music access plus onboard recording. PRIME 2 is also enabled for WiFi internet connectivity, enabling streaming playback from Beatport LINK, Beatsource LINK, SoundCloud GO+, TIDAL, and even Dropbox.
Expressive Workflow and Control
Powered by Engine OS software, PRIME 2 is the DJ's essential Pro/Mobile workhorse. Comprehensive performance control is ensured via capacitive touch jog wheels (with color displays), powerful EQ, FX and audio manipulation.
HD Touchscreen
7", HD multi-touch display for waveform views, music library navigation, track search and load.
Jog Wheels with Color Display
6" Capacitive-touch jog-wheels with HD display for loop info, track artwork & custom logo
Multifunction Performance Pads
8 ultra-responsive trigger pads for hot cue juggling, looping techniques, beat rolls, and slicer
Stream or Play Music from the Cloud
With built-in Wi-Fi and an Ethernet Link port for hardwired internet connections, the PRIME 2 connects you with your favorite music streaming service or personal cloud storage without being tethered to a computer. Log in to your streaming account directly on the unit for instant access to the world's largest music collections. The PRIME 2 offers a vast array of streaming service options including Beatport LINK, Beatsource LINK, SoundCloud GO+, and TIDAL, so whatever the genre the PRIME 2 has you covered. If that’s not enough, connect your Dropbox account to access your personal music collection remotely from anywhere in the world.
Dual Mics + Flexible Monitoring
No sacrifice of line faders with 2 independent mic channels plus multi-option headphone monitoring
Powerful Mix & Audio Control
Pristine 24bit/44.1kHz audio quality with 2-channel mixer, 3-band EQ and filter controls. Timestretch and Key Shift functions add more creativity into the mix
Audio
Frequency Response: 20 Hz - 20 kHz (+- 1 dB)
Dynamic Range: > 112 dB (A-weighted)
Signal-to-Noise Ratio: > 92 dB (A-weighted)
Channel Separation: -85 dB (1 kHz, unity)
Headroom:
Aux/Line: > 15 dB
Mic Input: > 20 dB
Outputs: > 20 dB
T.H.D.
Aux/Line: 0.01% (1 kHz, unity)
Microphone: 0.02% (1 kHz, unity)
Analog Input
Aux/Line:
+15 dBV (maximum)
0 dBV (unity)
Microphone:
-40 dBu (unity)
-60 dBu (minimum)
Analog Output
Master, Balanced:
+24 dBu (maximum)
+4 dBu (unity)
Master, Unbalanced:
+20 dBu (maximum)
0 dBu (unity)
Booth:
+24 dBu (maximum)
+4 dBu (unity)
Headphone Output: 150 mW @ 40 Ohms

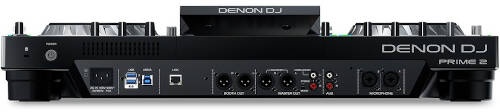

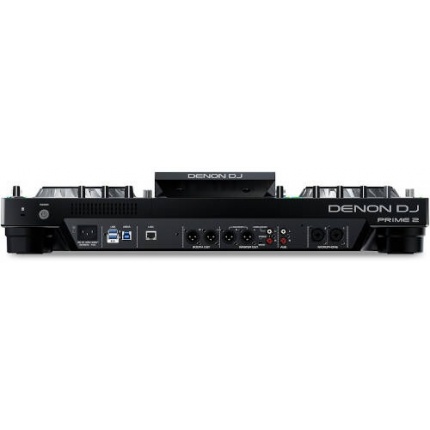

Connections
(2) XLR outputs (master left/right, balanced)
(1) RCA output pair (master left/right, unbalanced)
(2) XLR outputs (booth left/right, balanced)
(1) 1/4" (6.35mm) stereo output (headphones)
(1) 1/8" (3.5mm) stereo output (headphones)
(1) RCA input pair (line-level, unbalanced)
(2) XLR + 1/4" (6.35mm) inputs
(3) USB ports (for USB drives. Port 3 with 5V, 1A)
(1) USB port (to computer)
(1) SD card slot
(1) Ethernet port
(1) IEC power cable input
(1) 2.5" SATA HD bay
Power
Connection: IEC
Input Voltage: 100–240 VAC, 50/60 Hz
Consumption:
34W (with smartphone charging from USB 3 port)
32W (without smartphone charging)
Dimensions (Width x Depth x Height)
644.8mm x 410.1mm x 120.2mm
25.39” x 16.15” x 4.73”
Weight (Without USB and Power Cable)
15.9 lbs.
7.2 kg
