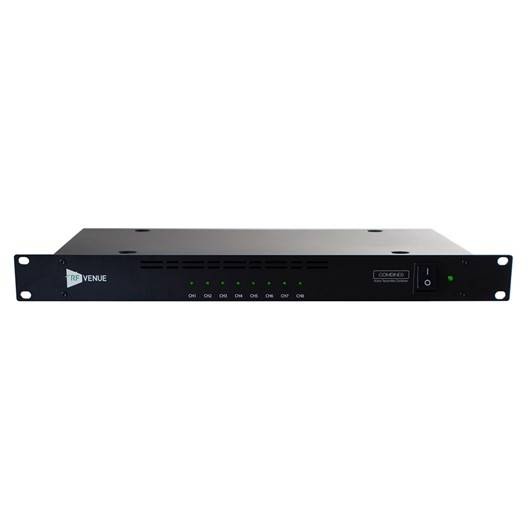

The COMBINE8 IEM combiner brings together up to eight in-ear monitor transmitter signals into a single rear panel mounted antenna connector.
Any brand IEM set to transmit 50 mW or less may be used, as well as any type of directional antenna. It also provides DC power to up to 8 IEM transmitters with an external power supply, removing the need for wall warts.
IEM transmitter combination is important for multi-channel systems to minimize intermodulation artifacts arising from multiple adjacent transmitters interfering with one another. The CP Beam antenna is a recommended accessory for the COMBINE8 and is available within a bundled package.
In the Box
RF Venue COMBINE8 8-Channel IEM Transmitter Combiner (470 to 608 MHz)
8 x BNC Jumper Cables
Auxiliary DC Power Supply for up to 8 Transmitters
AC Power Cable
Auxiliary AC Power Cable
Limited 1-Year WarrantySpecifications
Frequency Range: 470-608MHzInput Connectors: 8 x BNC
Full System Gain: 0dB (± 2 dB)
Maximum RF Input Power: +18dBM (60mW)
LED Indicator (Input Signal Threshold): > +5dBM (Threshold Power)
Power Consumption: 36W
I/O Connector: 8 x RF Inputs, 1 x Antenna Out
Input AC Voltage: 100-240 VAC, 50/60Hz, Max 1.5A
Dimensions: 480 (W) x 45 (H) x 260 (D) mm
Weight: 3.7kg
