Video System Package with Extron SW2 HD 4K + Panasonic PT-VMZ60 + Remaco FIX-2414H + Remaco PSB-10A & CABLES Video System for Small Seminar Room/ Classroom/ Studio

Special bundle assembled for a small meeting space, seminar room or classroom/ studio. With this system, users are able to choose between two different video sources from the HDMI switcher to be projected on the laser projector.
When you buy video system solutions online from Singapore's Premier AVL Superstore, you will benefit from the support of our experienced team of experts. For Government sector customers, we are a GeBiz registered vendor with an EPPU grade S7.
A fixed screen is also included to ensure that the projection image representation is not compromised by any ripples or waviness caused when using just a normal motorized projection screen.
Panasonic PT-VMZ60 Laser Projector (6,000 Lumens)
- Vivid Images in Bright Environments
- High Brightness from a Compact Body
- No Light-Source Replacement for 20,000 Hours*
- High 3,000,000:1* Contrast
- A Clearer View with Daylight View Basic
- Reusable Air Filter Extends Maintenance
- 1.6x Zoom Lens and Lens Shift Function
- Supports 4K signal input*1
- Single-Cable DIGITAL LINK*1 Solution
- Screen Adjustment Function
- Wireless Projection Function with Optional Module
- Memory Viewer Light Function
- Multi Monitoring & Control Software
Remaco FIX2414-H Fixed Projection Screen (110" Diagonal)
(with 4 sides black borders)
- DurableAble to shift screen horizontally
- Precisely Designed Screen
- Fire Retardant
- Special Angular ConnectionsUser friendlyMaintenance free
Remaco PSB-10A Projector Bracket
Remaco Projector Spider bracket PSB-10A fits almost any LCD/DPL projector on the market. Reliable security, adjustable bracket arm and mounting spacer, makes your projector unobtrusive while making the image more visible to the audience. It is durable, lightweight, powder coated (ivory white) and adjustable with a max drop of 62cm.
Extron SW2 HD 4K 2-Input 1 Output HDMI Switcher
- Supports computer and video resolutions up to 4K
- Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12‑bit, 3D, Lip Sync, and HD lossless audio formats
- EDID Minder® automatically manages EDID communication between connected devices
- Automatic input cable equalization to 50 feet (15 meters) when used with Extron HDMI Pro Series cable
- Multiple control options including front panel, RS‑232, IR, contact closure, and auto‑input switching

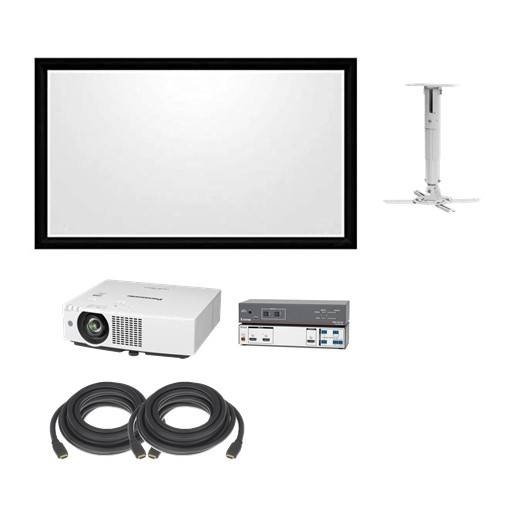

Package consists of
Video System Package, Consisting of:
1 x Panasonic PT-VMZ60 Projector (6,000 Lumens, WUXGA Resolution)
1 x Extron SW2 HD 4K 2-Input HDMI Switcher
1 x Remaco PSB-10A Projector Bracket (Ivory White)
1 x Remaco FIX-2414H Fixed Projection Screen (110" Diagonal)
1 x 5m HDMI 2.0 Cable
2 x 10m HDMI 2.0 Cable
Recommended Projector Throw Distance: 2.589m-4.188m
Not included - Get in touch with us to arrange a site visit and quote
Cabling and conduit
Height access by M.O.M Approved Scaffold Contractor (If required)
Installation, testing & commissioning by W.A.H certified workmen by BizSafe Level 3 contractor.

Specifications

Panasonic PT-VW540 Portable Projector (5,500 Lumens)

Light output*1 6 000 lumens
Technology Laser LCD
LCD panel | Panel size (mm) 16 mm diagonal (16:10 aspect ratio)
LCD panel | Panel size (inch) 0.64 inch diagonal (16:10 aspect ratio)
LCD Panel | Display Method Transparent LCD panel (x 3, R/G/B)
LCD Panel | Drive Method Active matrix
LCD Panel | Pixels 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
Lens 1.6 x Manual zoom (throw ratio 1.09-1.77 :1), F = 1.60-2.12, f = 15.30-24.64 mm
Light Source Laser diode

Screen size (diagonal) (mm) 0.76 - 7.62 m, 16:10 aspect ratio
Screen size (diagonal) (inch) 30-300 in, 16:10 aspect ratio
Center-to-Corner Uniformity*1 85 %
Contrast*1 3,000,000:1 (all white/all black) (Input signals:PC,LIGHT POWER:NORMAL,PICTURE MODE:DYNAMIC,DAYLIGHT WIEW:OFF,DYNAMIC CONTRAST:1,AUTO POWER SAVE:OFF)
Resolution 1920 x 1200 pixels
Optical axis shift | Vertical (from center of screen) 0 % - +44 % (Manual)
Optical axis shift | Horizontal (from center of screen) - 20% - +20% (Manual)
Keystone correction range*2 Vertical: ±25°, Horizontal: ±35°
Installation Horizontal/Vertical, free 360-degree installation
Terminals | HDMI 1/2 IN HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input)
Terminals | Computer 1 In D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | COMPUTER 2 IN / MONITOR OUT D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (input/output switching)
Terminals | Video In Pin jack x 1
Terminals | AUDIO 1/2 IN M3 stereo mini-jack x 2
Terminals | AUDIO 3 IN Pin jack (L/R) x 1
Terminals | Variable Audio Out M3 stereo mini-jack x 1
Terminals | Serial In D-sub 9-pin x 1 for computer control (RS-232C compliant)
Terminals | LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
Terminals | DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection, HDBase-T™ compliant, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color, 4K/30p signal input
Terminals | USB CONNECTOR USB connector (Type A) x 1 for Memory Viewer function, power supply (DC5V, maximum 2A*3), optional wireless module AJ-WM50

Power Supply AC 100-240 V AC, 50/60 Hz
Power Consumption TBD
Built-in Speaker 10 W (monaural)
Operating noise*1 NORMAL: 37dB, QUIET: 27dB
Cabinet Materials Molded plastic
Filter Included Filter cleaning cycle: 20,000 hours (0.08 mg/m3 of particulate matter), 10,000 hours (0.15 mg/m3 of particulate matter)
Dimensions (W x H x D) (mm) 399 x 115 x 348 mm (Not including protruding parts)399 x 133 x 348 mm (With feet at shortest position)
Dimensions (W x H x D) (inch) 15 23/32 x 4 17/32 x 13 11/16 inch (Not including protruding parts)15 23/32 x 5 1/4 x 13 11/16 inch (With feet at shortest position)
Weight (kg)*4 Less than 7.2 kg
Weight (lbs.)*4 Less than 15.87 lbs.
Operating environment (℃/M) Operating temperature: 0 °C- 45 °C, operating humidity: 20 %-80 % (no condensation)
Operating environment (°F/Feet) Operating temperature: 32 °F -113 °F, operating humidity: 20 %-80 % (no condensation)
Applicable software/application Logo Transfer Software, Multi Monitoring & Control Software, Presenter Light for Windows®, Wireless Projector Apps for iOS/Android™

Note *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMALMode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *3 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. *4 Average value. May differ depending on the actual unit.
Light output 6 000 lumens

Remaco FIX2414-H Fixed Projection Screen (110" Diagonal)
(with 4 sides black borders)

Diagonal (inches / cm) 110" / 279
Viewing Area W x H (cm) 236 x 147
Casing Length (cm) 256
Total Height (cm) 167

Remarks:
All frame of the FIX series are wrapped with Classic Matte Black Velvet. Other screen sizes are available on indent basis.
Come with ONE year warranty.

Extron SW2 HD 4K 2-Input 1 Output HDMI Switcher

Frame rate1 24, 25, 30, 50, or 60 fps
Chroma sampling1 4:4:4, 4:2:2, or 4:2:0
Color bit depth1 8 bits per color
Signal type HDMI 1.4, HDCP 1.4
Max. video data rate 10.2 Gbps (3.4 Gbps per color)
NOTE 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/4Kdatarate to determine video parameters supported by this data rate.

Video
Maximum data rate 10.2 Gbps (3.4 Gbps per color)
Maximum pixel clock 300 MHz (600MHz for 4K with 4:2:0 chroma subsampling)
Resolution Up to 1920 x 1200 or 1080p @ 60 Hz, 12-bit color
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz
4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
Formats RGB and YCbCr digital video
Standards DVI 1.0, HDMI 1.4, HDCP 1.4
NOTE The SW HD 4K Series switchers support TMDS data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D**, HD lossless audio, and other HDMI specification features.
**Extron strongly recommends compatibility testing while designing and before installing any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The 3D support in this product is limited to signals operating within 164 MHz pixel clock and requires format and EDID compatibility between source and sink devices. Please contact an Extron Application Engineer for more information.

Video input
Number/signal type 2, 4, 6, or 8 (depending on model) single link HDMI (or DVI-D*)
Connectors 2, 4, 6, or 8 female HDMI

Video output
Number/signal type 1 single link HDMI (or DVI-D*)
Connectors 1 female HDMI
NOTE *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Communication — Switcher
Serial control port 1 RS-232, 3.5 mm, 3 pole captive screw connector
Pin configuration 1 = Tx, 2 = Rx, 3 = GND
Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity
Auto-input switching (1) 3.5 mm, 2 pole captive screw connector
Pin configuration Pins 1 and 2 of captive screw connector shorted together enable auto-input switching
Contact closure
SW2 HD 4K (2) 3.5 mm captive screw, 3 pole (shared with Tally output)
SW4 HD 4K (4) 3.5 mm captive screw, 3 pole (shared with Tally output)
SW6 HD 4K (6) 3.5 mm captive screw, 3 pole (shared with Tally output)
SW8 HD 4K (8) 3.5 mm captive screw, 3 pole (shared with Tally output)
Tally output
SW2 HD 4K (2) 3.5 mm captive screw, 3 pole (shared with Contact closure)
SW4 HD 4K (4) 3.5 mm captive screw, 3 pole (shared with Contact closure)
SW6 HD 4K (6) 3.5 mm captive screw, 3 pole (shared with Contact closure)
SW8 HD 4K (8) 3.5 mm captive screw, 3 pole (shared with Contact closure)
Tally output power (1) 3.5 mm captive screw, 3 pole for +5 VDC, 0.2 A
IR controller module IR 102 remote control (optional)
30' maximum, 40 degrees off axis
Program control Extron Simple Instruction Set™ (SIS™)

General
Power supply
SW2 HD 4K Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts
SW6 HD 4K, SW8 HD 4K Internal
Power consumption
SW2 HD 4K
Device 6 watts, 12 VDC
Device and power supply 8 watts, 12 VDC
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling Convection, no vents
Thermal dissipation
SW2 HD 4K
Device 19.8 BTU/hr
Device and power supply 24.4 BTU/hr
Mounting
SW2 HD 4K
Rack mount Yes, with optional 1U rack shelf
Furniture mount Yes, with optional under-desk mounting kit or through-desk mounting kit
Enclosure type Metal
Enclosure dimensions
SW2 HD 4K, SW4 HD 4K 1.75" H x 8.75" W x 3.0" D (1U high, half rack wide)
(4.4 cm H x 22.2 cm W x 7.6 cm D)
(Depth excludes connectors.)
SW6 HD 4K, SW8 HD 4K 1.75" H x 17.5" W x 8.5" D (1U high, full rack wide)
(4.4 cm H x 44.4 cm W x 21.6 cm D)
(Depth excludes connectors.)
Product weight
SW2 HD 4K 0.5 lb (0.3 kg)
Regulatory compliance
CE, C-tick, c-UL, KC-mark, UL, FCC Class A, ICES, VCCI
Complies with appropriate requirements of RoHs and WEEE.
Product warranty 3 years parts and labor
Everlast power supply warranty 7 years parts and labor
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
(4436-D8)
