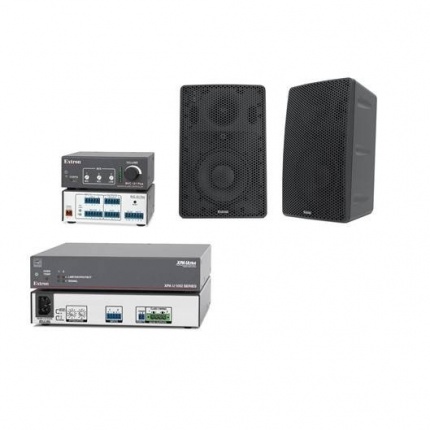

Simple Sound System Extron MVC 121 Plus & XPA U 1002 & SM26 + Cable Package

Extron MVC 121 Plus Three Input Stereo Mixer with DSP

Audio
Gain Unbalanced output: -6 dB; balanced output: 0 dB
Frequency response 20 Hz to 20 kHz, ±0.3 dB
THD + Noise 0.02% @ 1 kHz, at maximum output level
S/N >100 dB, 20 Hz to 20 kHz, at maximum output, unweighted
Crosstalk -90 dB @ 1 kHz, fully loaded
CMRR >60 dB @ 1 kHz

Audio input
Number/signal type
Microphone inputs 2 mono, mic/line, balanced/unbalanced
Line input 1 stereo, line, balanced/unbalanced
Connectors
Microphone inputs (1) 3.5 mm captive screw connector, 6 pole
Line input (1) 3.5 mm captive screw connector, 5 pole
Impedance >10k ohms, balanced/unbalanced, DC coupled
Nominal level +4 dBu when level is set to 0 dB gain; adjustable from -60 dBu to +4 dBu (line input)
Maximum level +21 dBu, balanced, when input gain is set to 0 dB
Volume range
Line input -18 dB to +24 dB, adjustable per input
Mic input -18 dB to +60 dB, adjustable per input
Mic noise level -120 dBV (1 µVrms) at 40 dB gain
Mic phantom power +48 VDC, which can be switched on or off
NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio processing
D/A conversion 24 bit, 48 kHz sampling

Audio output
Number/signal type 2 stereo, line, balanced/unbalanced
Connectors (2) 3.5 mm captive screw connector, 5 pole
Impedance 50 ohms unbalanced, 100 ohms balanced
Gain error ±0.2 dB channel to channel
Maximum level (Hi-Z) >+21 dBu, balanced; >+15 dBu, unbalanced
Control/remote — mixer/volume controller
Serial control port 1 bidirectional RS-232: 3.5 mm captive screw connector, 6 pole (uses 3 poles) (shared with digital input)
Baud rate and protocol 9600 to 115200 baud, 38400 baud (default), 8 data bits, 1 stop bit, no parity, no flow control
Serial control pin configuration 1 = Tx, 2 = Rx, 3 = GND
USB control port 1 front panel female mini USB B
USB standards USB 2.0, low speed
Program control Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™)

Control — digital input ports
Number/type 3 digital input (configurable)
Connector (1) 3.5 mm captive screw connector, 6 pole (shared with RS-232 port, uses 4 poles)
Pin configuration 3 = GND; 4, 5, 6 = digital inputs 1, 2, 3
Digital inputs
Input voltage range 0-24 VDC
Input impedance 10k ohms
Threshold low to high >2.0 VDC
Threshold high to low 0.8 VDC

General
Power External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A
Power consumption
Device 3.5 watts
Device and power supply 4.9 watts
Thermal dissipation
Device 9.4 BTU/hr
Device and power supply 14.7 BTU/hr
Temperature/humidity Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensing
Operating +32° to +122°F (0° to +50°C) / 10% to 90%, noncondensing
Cooling Convection, no vents
Mounting
Rack mount Yes, with optional 1U rack shelf
Furniture mount Yes, with optional mini under-desk mounting kit
Pole mount Yes, with mini pole mount kit
Enclosure type Metal
Enclosure dimensions 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
(4.3 cm H x 10.9 cm W x 7.6 cm D)
(Depth excludes connectors and knobs.)
Product weight 0.6 lbs (0.3 kg)
Regulatory compliance CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI
Product warranty 3 years parts and labor
Everlast power supply warranty 7 years parts and labor
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
(4789-D5)

Shipping Dimensions and Weights
Part #  60-1096-01
Height Width Depth 2.75" (7.0 cm) 10.12" (25.7 cm) 7.43" (18.9 cm)
Weight 1.86 lbs (0.84 kg)

Extron XPA U 1002 Power Amplifier

Audio
Voltage gain
XPA U 1002 23x (27 dB)
CMRR 75 dB @ 1 kHz (typical)

Audio input
Number/signal type 2 balanced/unbalanced
Connectors (1) 3.5 mm captive screw connector, 5 pole
Impedance >10k ohms balanced/unbalanced, DC coupled
Nominal level +4 dBu, balanced
Maximum level +20 dBu (7.75 Vrms), balanced
Input sensitivity +4 dBu
Input signal detection threshold -65 dBu ±3 dB, balanced
NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output
Number/signal type
XPA U 1002 2 channels, 4 or 8 ohms
Connectors (1) 5 mm screw lock captive screw connector, 4-pole
NOTE These connectors accept wires of 22 AWG to 12 AWG.
Load impedance
XPA U 1002 4 ohms minimum
Amplifier type Class D
Output power
XPA U 1002 100 Watts per channel, 8 ohms, 1 kHz, 0.1% THD
100 Watts per channel, 4 ohms, 1 kHz, 0.1% THD
Frequency response 20 Hz to 20 kHz, ±1 dB
THD + Noise 0.1% @ 1 kHz, at 3 dB below clipping
S/N 100 dB, 20 Hz - 20 kHz, unweighted
Damping factor
XPA U 1002 >100 @ 8 ohms

Control/remote
Control port
XPA U 1002 (1) 3.5 mm captive screw connector, 2-pole
Pin configurations
Standby power control (contact closure) Pin 1 = GND, pin 2 = Standby
High pass filter (contact closure) Pin 1 = GND, pin 2 = OFF

General
Power supply Internal
Input: 100-240 VAC, 50-60 Hz
Temperature/humidity
Storage −40 to +158 °F (−40 to +70 °C) / 10% to 90%, non-condensing
Operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing
Cooling Convection, no vents
Protection Clip limiting, thermal, short circuit, DC output
Indication Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, or a short circuit.
Over Temp LED indicates when the amplifier exceeds the recommended operating temperature for optimal unit longevity.
Power LED indicates power state, DC output protection (see XPA Ultra Series User Guide for details).
Rack mount Yes, with included mounting brackets or optional rack shelf
Enclosure Metal
Enclosure dimensions 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)
43 mm H x 220 mm W x 267 mm D
Product weight 3.4 lbs (1.5 kg)
Regulatory compliance CE, CEC, CISPR 22 Class B, C-tick, CUL, ENERGY STAR®, European Code of Conduct, FCC Class B, ICES, RoHS, UL, UL 2043, VCCI Class B
Product warranty 3 years parts
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.

Shipping Dimensions and Weights
Part # 60-1761-01
Height Width Depth 4.5" (11.4 cm) 13.25" (33.7 cm) 14.5" (36.8 cm)
Weight 5.35 lbs (2.43 kg)


Extron SM26 Two-Way Surface Mount Speakers with 6.5" Woofer

Audio/acoustic and electrical
Speaker type 2-way, indoor surface mount speaker
Frequency range 65 Hz to 19.2 kHz, -10 dB, full space
Power capacity 60 W (rms) continuous pink noise (per IEC 60268-5)
120 W (rms) continuous program
Nominal sensitivity 87 dB SPL, 1 W, 1 m, full space
Nominal coverage angles Horizontal: 115° (1 kHz - 4 kHz, weighted 2 kHz - 4 kHz)
Vertical: 55° (1 kHz - 4 kHz, weighted 2 kHz - 4 kHz)
Nominal impedance 8 ohms
Crossover frequency 2.7 kHz
Rotary switch taps (SM 26T only) 70 V: 32 W, 16 W, 8 W, 4 W, 2 W, 8 ohms direct
100 V: null, 32 W, 16 W, 8 W, 4 W, 8 ohms direct
Woofer (1) 6.5" (165 mm) polypropylene cone
Tweeter (1) 1.0" (25 mm) silk dome
Overload protection Full range power limiter protecting the tweeter, woofer, and crossover
Input connectors
Speaker 2 recessed pins
Mounting plate (1) 10 mm Euro-style captive screw terminal block, 4 pole

General
Package 2 speakers (1 pair) with mounting kit
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Mounting Wall mountable with included mounting hardware or optional yoke or pivot mount
0° mounting plate Fixed 0°
10° mounting adapter Fixed 10° up, down, left, or right, based on adapter orientation
Yoke mount (optional) Up to 90° upward/downward or left/right in 10° steps based on orientation of yoke
Pivot mount (optional) Up to 30° up, down, left, right, and anywhere in between
Rotation 360°
Enclosure type Plastic, trapezoidal, with molded grille and bass reflex ports
Enclosure outer dimensions
Speaker only 12.98" H x 8.45" W x 6.45" D
(32.97 cm H x 21.46 cm W x 16.38 cm D)
With 0° mounting plate 12.98" H x 8.45" W x 6.96" D
(32.97 cm H x 21.46 cm W x 17.68 cm D)
With 0° mounting plate attached to 10° adapter Orientation: vertical, angled 10° down
13.26" H x 8.45" W x 8.84" D
(33.67 cm H x 21.46 cm W x 22.44 cm D)
Product weight
SM 26
Speaker only 7.5 lbs (3.4 kg) each
With 0° mounting plate 8.4 lbs (3.8 kg) each

Regulatory compliance
Safety CE
Environmental Complies with the appropriate requirements of RoHS and WEEE.
Product warranty 3 years parts
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
