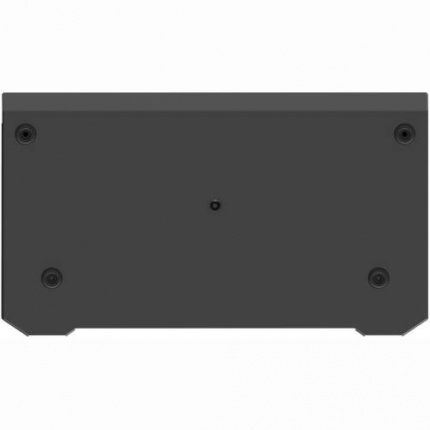

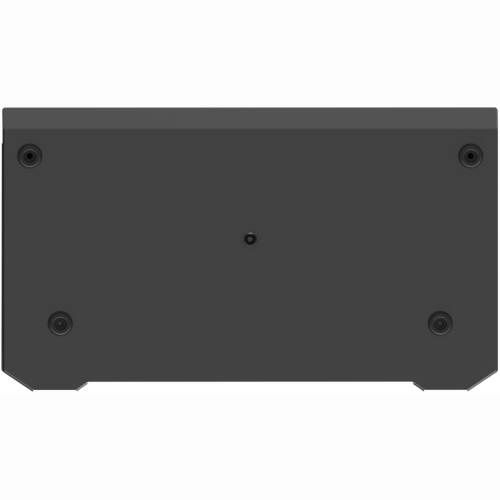

Easily switch up to four different HDMI video inputs. Offering independent multiview and program outputs, you can monitor your inputs easily with the HVS0402U 4-Channel Live Streaming Video Switcher. Small productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some of the sceanrios where the HVS0402U could be deployed. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment and the 1/4"-20 thread on the bottom provides the ability to mount onto a separately available stand or in a console.
Output the four HDMI inputs via one HDMI multiview and one HDMI program output using scaling features, allowing you to view them all on the same screen with configurable PiP functionality. The USB-C output allows easy capture of program video to a computer for video capture and streaming applications without the need for an additional capture card. The HVS0402U features four HDMI inputs that can be connected to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Remotely control the switcher via IP using software through the LAN port.

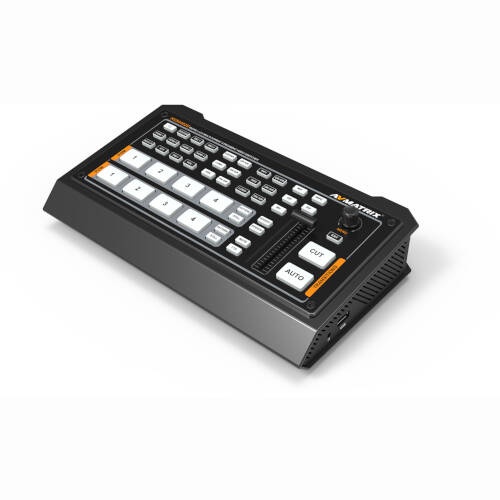

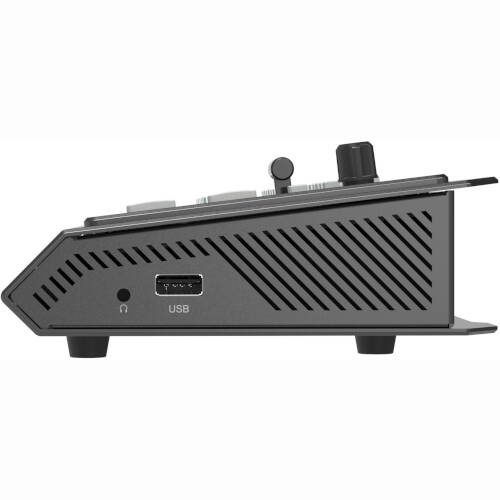

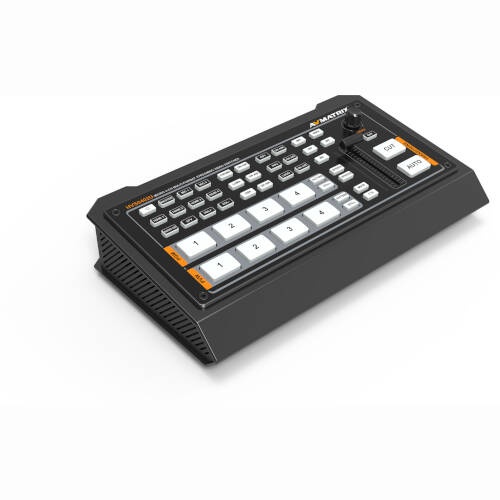

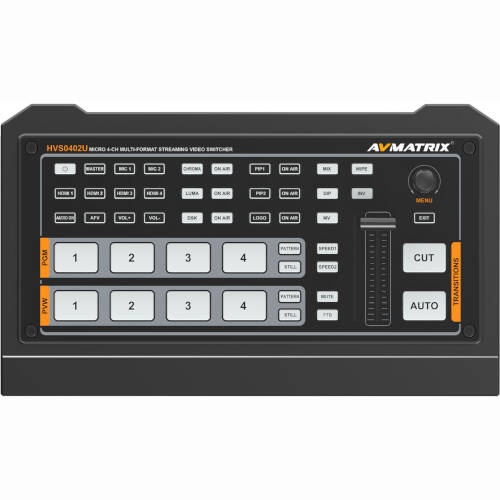

Its interface features source and destination buttons, a T-bar for transitions and cuts, as well as mix, fade, and wipe effects. Make use of the upstream luma key, chroma key, picture-in-picture (PiP), and picture-over-picture (PoP), as well as downstream keying and logo overlay, capture up to 16 screenshots and store up to 16 images using the USB Type-A input. The USB input supports disks up to 256GB in capacity. It also has two color generators and one pattern generator.
The HVS0402U features a tally interface that supports GPIO, mute, still frame, and fade-to-black (FTB) functionality. A power supply, USB cable, and tally connector are included.
In the Box
AVMATRIX HVS0402U 4-Channel Live Streaming Video Switcher
Power Supply
USB Type-A to Type-C Cable
Tally ConnectorCONNECTION

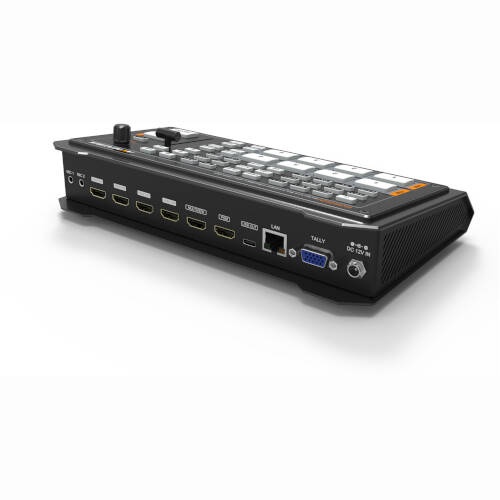

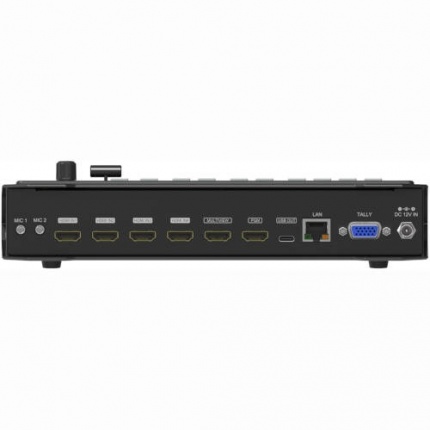

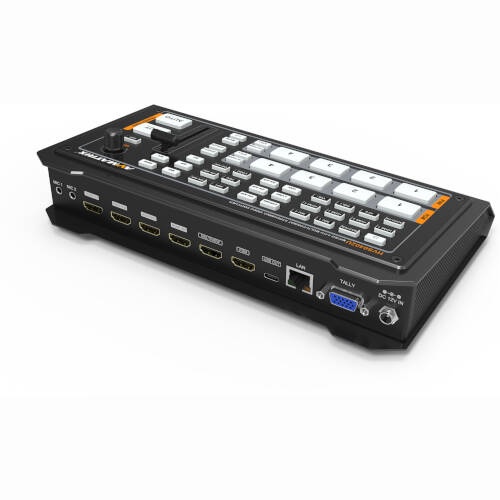

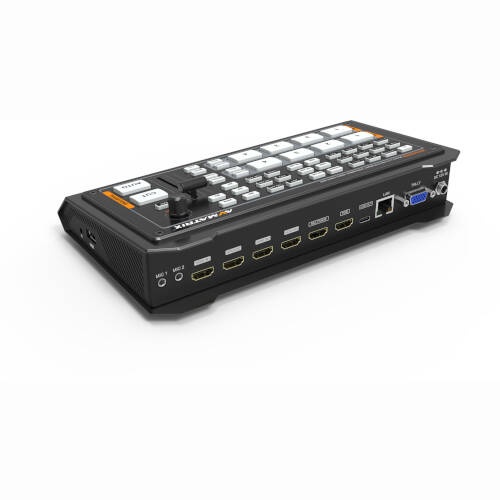

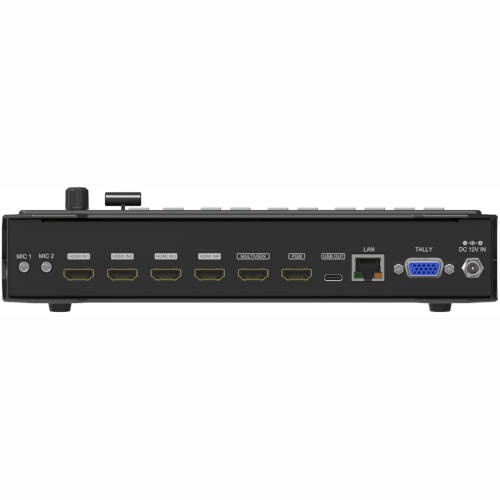

Video In HDMI type-A ×4
Video Out
HDMI type-A PGM ×1
HDMI type-A Multiview ×1
USB2.0 type C ×1 (Streaming on PC)
Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview
Audio In MIC/ Line level (3.5mm stereo audio) ×2
PC Control Port LAN×1
Media Library USB type-A ×1(USB disk port for image import and firmware upgrade)
Tally Port DB-15 ×1
Power In DC 12V ×1
FUNCTIONS
Transitions T-Bar/AUTO/ CUT
Effects Wipe (9×2 patterns)/ Mix/ DIP/ Pattern/ Still(freeze)/ MUTE/ FTB
Layouts 2 styles of Multiview layout (6 windows and status)
Keys
Upstream Key: Luma Key ×1/ Chroma Key ×1/ PiP ×2/ POP
Downstream Key: DSK ×1/ Logo ×1
Audio Mixer
HDMI ×4 and MIC/ Line level ×2;
Audio delay: 0-500ms
Media
Default image: 49 preset patterns
Local image: up to 16 imported images
Capture image: up to 16 captured images
Generators
Pattern generator ×1
Color generators ×2
STANDARDS
HDMI In Format
Support
1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
1080i 50/ 59.94/ 60
720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98
576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
HDMI PGM Out 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Multiview Out 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Color Space RGB/ YUV
USB Capture Out MJPG, Up to 1080p 60
Media Format USB disk format support: FAT32, Ext3, Ext4, up to 256GB
4
Image format support: png, bmp, jpg
Logo format support: png, bmp, jpg;
Logo size support: 10×10 pixel to 600×600 pixel
OTHERS
Power Wide voltage: 7~24V; Operating power:12W (12V 1A)
Dimension (LWD) 244.5 × 143.2 × 44.5mm
Weight Net: 1030g; Gross: 1500g
Temperature Working: -20℃~60℃, Storage: -30℃~70℃
Accessories Power supply (12V 2A) ×1; USB cable (type A-C) ×1; Tally connector (DB-15) ×1
