Whatever PTZ cameras you use, from PTZOptics, Sony, Canon or more, if the camera supports VISCA, Pelco-D & Pelco-P the AV Matrix PKC1000 will provide control for over 255 cameras over Serial RS-232/422/485 Communication.
With support for VISCA, Pelco-D & Pelco-P, this controller will be suitable for compatible cameras.
- Key Features:
- Adopt RS485, RS422, RS232 Multiple Interface Control Signals. Support to connect up to 255 cameras.
- Support PELCO-D, PELCO-P, VISCA control protocol。
- Metal shell, Computer keyboard button design.
- Adopt Three-dimensional joystick to control the speed of the camera.
- Control camera rotation, zoom, aperture, focus, and other camera settings.
- LCD display in English and Chinese，Real-time display of the working status of the decoder and matrix.
- Key sound prompt function.
- Unique control code learning function. Customers can modify the control code instructions by themselves
- Any device on the RS485 bus can be set to a different protocol and baud rate.
- RS422 communication interface has automatic recovery function of short circuit overcurrent protection.
- The longest communication distance is up to 1200M (0.5MM twisted pair).
DISCONTINUED, replaced with PKC3000

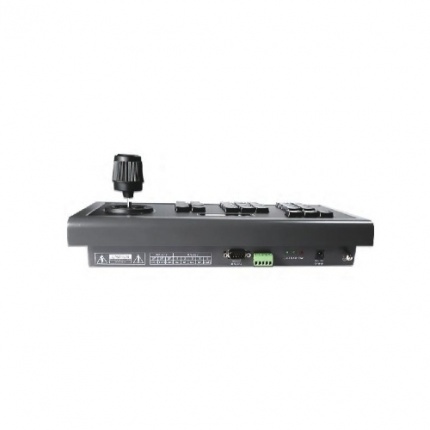

Interfaces RS232 Serial Port; RS232RS485 Half duplex, RS422 Full duplex,
Control Protocol PELCO-D, PELCO-P, VISCA
Communication Baud Rate 2400bps, 4800bps, 9600bps, 19200bps
Joystick Three-dimensional (Control: up, down, left, right, rotate)
Display Mode LCD Blue Screen Display
Power Supply DC12V±10%
Power Consumption 6W MAX
Working Temperature -10℃～50℃
Storage Temperature ≦90%RH (No frosting)
Dimensions 320mm(L)×179.3mm(W)×106.4mm(H)
