Specially designed for 12G-SDI mobile applications
Flexible and low loss structure
Highly-foamed PE insulation
High-density double braided shieldThis cable is sold by the meter run, please indicate the quantity requested in meters.
Due to the nature of cut-bulk cables, once orders have been placed, the order cannot be cancelled or returned, no matter the circumstances.
If you would like to purchase 200m lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.
In the Box

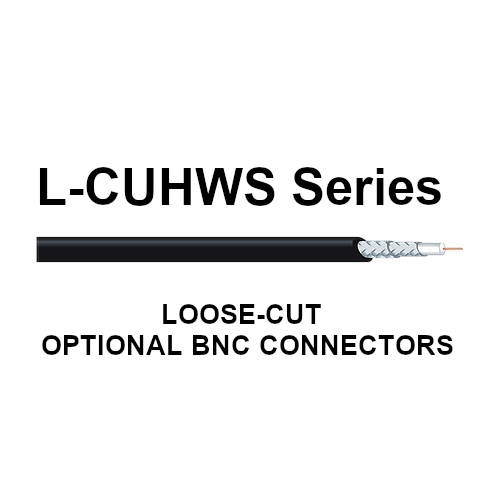

Canare 12G-SDI Mobile Coaxial Cable L-5.5CUHWS (Cut and assembled as ordered)Sales units (m)
100Nom. O.D. (mm)
8.1Weight (kg/100m)
8.9Inner Cord Comp. (AWG) Q'ty/mm
(16)
7/NAInner Cord Comp O.D. (mm)
1.30Insulation O.D (mm)
5.56Outer conductors braid comp. (coverage) mm/ends/carriers
0.10TA/10/24 (92%)
0.10TA/10/24 (90%)Inner cond. resist. (ohm/100m)
1.4
Outer cond. resist (ohm/100m)
0.6Static capacity (PF/m)
54Characteristic impedance (ohm)
75Attenuation dB/100m (750 MHz)
16.7
