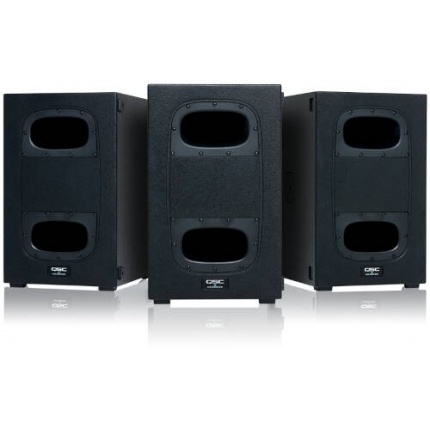

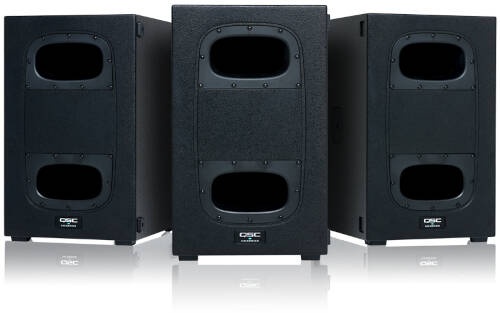

The KS112 is an ultra-compact active subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low-noise casters.
Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).
In The Box
Locking IEC Power Cord
4 x Heavy-Duty Casters (Low-Noise)Configuration: 6th-Order Bandpass Subwoofer
LF Transducer: 305 mm (12 in), Cone
Frequency Response (-6 dB): 41 Hz - 108 Hz
Frequency Range (-10 dB): 38 Hz - 121 Hz
Maximum Rated SPL1: 128 dB @ 1 m (peak)
Amplifier: Class D, 2000W (peak)
Cooling: Low-noise, variable speed fan

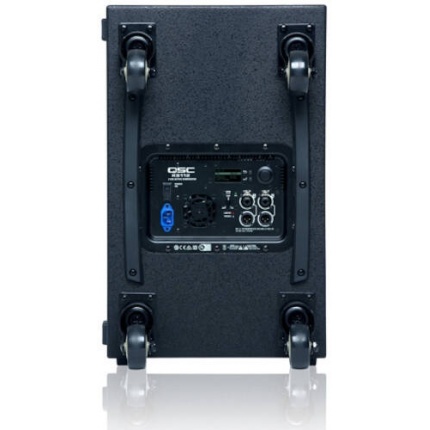

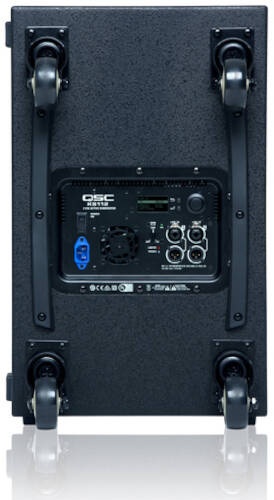

Controls: Power On/Off, Gain Control, Rotary encoder, 2 × selection buttons
Indicators: 2 × Power LED (front and rear), Input Signal LED, Limiter Active LED
Connectors: 2 × locking XLR/F 1/4-inch combo, 2 × XLR/M (Loop-thru Output), 1 × locking IEC power connector
AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption: 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
Enclosure: 15 mm Birch Plywood
Color: Black (RAL 9011)
Grille: Internal woofer cover
Speaker Dimensions (H×W×D): 622 × 394 × 616 mm
Carton Dimensions (H×W×D): 740 × 500 × 673 mm
Net Weight: 28.4 kg
Shipping Weight: 35 kg
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
