One microphone allows you to capture true sound and produce an unforgettable show. Effortlessly. The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. This capsule with SL1 adapter for use with selected Shure / Sony / Lectrosonics wireless transmitters provides transparent, fantastic vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Use it wired or together with your favourite wireless system, either way, just plug it in and hear the vocals shine like never before.
The 2028 sports a super-cardioid capsule with the famously flat DPA off-axis response. This gives the microphone a very high gain-before-feedback and at the same time makes it so much easier for sound engineers to handle bleed from other instruments at close proximity. The 2028 picks up these off-axis sounds in the most natural way.
We have designed a brand new capsule for the 2028, which is an integral part of the mic. It is fixed in its position on top of the shock mount and can’t be dismounted. The newly-designed shock mount and pop filter have been developed specifically for the 2028.
On a live stage, the 2028 will deliver the same open and transparent sound that other DPA microphones deliver. In fact, it needs no (or very little) EQ to sound just like you are standing next to the singer listening to their performance. This allows the singer to use their voice just as if no mic was present, which puts less strain on them. In addition, it allows sound engineers to spend their time shaping the sound experience rather than covering up due to artifacts. This amazing transparency is unique for DPA vocal mics.
In the Box

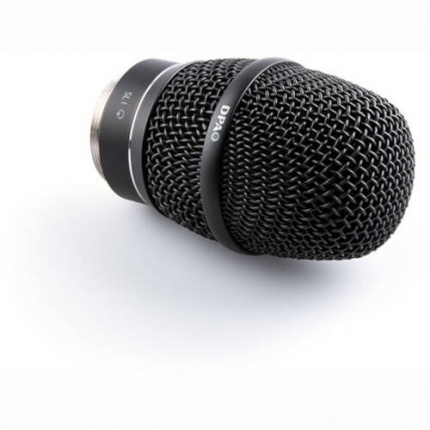

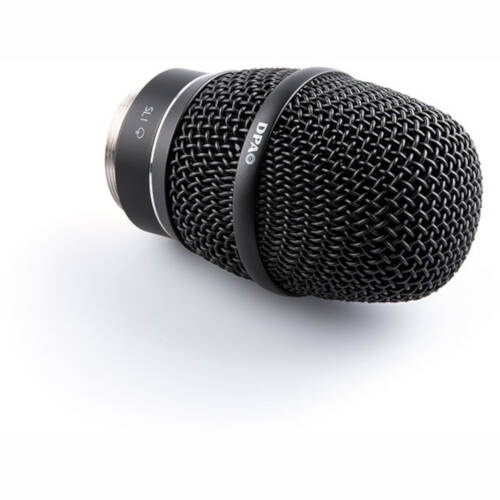

DPA Microphones 2028-B-SL1 Supercardioid Vocal Condenser Microphone Capsule with SL1 Adapter (Black)
Limited 2-Year WarrantyDirectional pattern: Supercardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 12 cm (4.7 in): 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz: 5 mV/Pa; -46 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A))
Distortion, THD 1%: 136 dB SPL RMS, 139 dB SPL peak
Dynamic range: Typ. 117 dB
Max. SPL, THD 10%: 160 dB SPL peak
Rated output impedance: 150 Ω
Minimum load impedance: 1 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common mode rejection ratio (CMRR): >50 dB at 1 kHz
Power supply (for full performance): P48 (Phantom Power)
Current consumption: Max 2.5 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color: Matte black
Weight: 286 g (10.1 oz)
Microphone diameter: 48 mm (1.9 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 188 mm (7.4 in)
Maximum output voltage, RMS: 9 Vrms; 19 dBV; 28 dBu
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90 %
