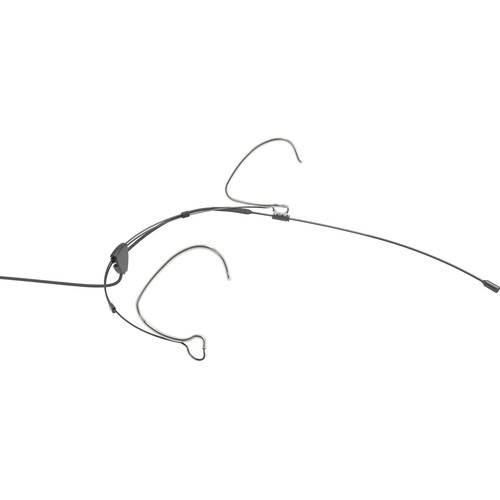

The black 6066 CORE from DPA is a subminiature, lightweight omnidirectional headset microphone with an advanced, fully adjustable, stainless steel headset mechanism. The barely noticeable, dual-ear design offers a very comfortable wearing experience for presenters and performers while the tiny 3mm mic capsule provides broadcast-quality sound up to the demanding standards of theater, TV, and live event professionals.
The 6066 fits the wearer by using 3-point ear grips with spring mechanisms that grip comfortably above and below the ears and to the side of the head for added security. The 2-way adjustable boom system—length and height—features an anti-rotate mechanism that makes it easy to position the tiny 3mm mic capsule for optimal sound quality. A sliding lock mechanism secures the boom positioning. In addition, the 90° cable management system safeguards the cable from stress and directs it down the wearer's back, where it can't be seen.
DPA's CORE technology is at the heart of the electret-condenser capsule, providing an ultralow noise floor and wide dynamic range, even though this capsule is 60% smaller than comparable DPA models. With an SPL rating of 144 dB, the microphone is more than capable of handling loud speakers, vocalists, and presenters to deliver clean, transparent, and reliable sound for critical performances and presentations.
The 6066 CORE is powered by 5 to 10V plug-in power from a wireless microphone transmitter and features a modular design using a Microdot output connector. A foam windscreen, protective cover, makeup cover, and carrying case are included.
In the Box
DPA Microphones d:fine Core 6066 Subminiature Headset Microphone
Limited 2-Year WarrantyNot in the Box
Adapters (Not Included)Directional pattern: Omnidirectional
Principle of operation: Pressure
Principle of operation: Pressure
Frequency response: 20 Hz - 20 kHz
Effective frequency range ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
Distortion, THD 1%: 125 dB SPL RMS, 128 dB SPL peak
Dynamic range: Typ. 102 dB
Max. SPL, THD 10%: 144 dB SPL peak
Rated output impedance: 30 - 40 Ω
Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter, with DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color: Black
Weight: 11 g (0.4 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d): 3.4 / 8.9 mm (0.13 / 0.35 in)
Capsule diameter: 3 mm (0.12 in)
Cable length: 1.3 m (4.3 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity: (RH)Up to 90%
