The Clarity M provides precise visual metering that helps make crucial mix and mastering decisions during audio production, mixing, mastering, or sound for picture post production. The seven-inch high-resolution display can show a quick overview, or the ever-important fine points at a glance. Aside from standalone operation, the unit supports plug-in metering via all modern plug-in standards, allowing a user to work with any preferred DAW.
Digital connectivity via the included custom breakout cable hosts six channels of unbalanced AES3 digital audio, connecting the meter to an external mixing desk, console, or audio interface for broadcast-grade 5.1 metering. Also available is a stereo optical input that can connect to an audio interface through TOSLink for maximum flexibility. The breakout cable allows for hooking up a two-button footswitch for easy resetting of the meter, as well as for triggering play and pause.
Features:
Professional stereo and 5.1 audio meter for mixing, mastering and post production
Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59
State-of-the-art True-Peak Meter identifies clipping in DACs, CODECs and downstream filters

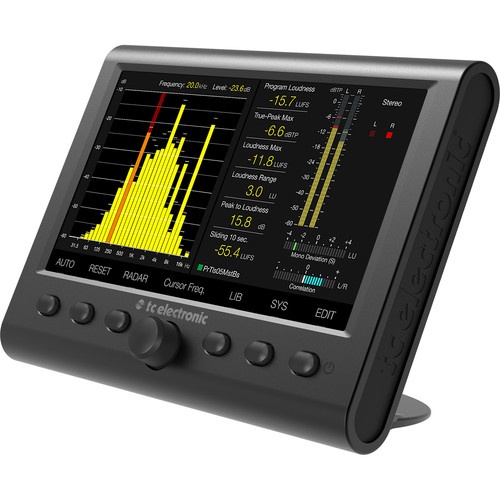

7" high resolution LCD display for precision metering in all studio environments
Six input channels of unbalanced AES3 digital audio on 75-Ohm BNC connectors for broadcast-grade 5.1 metering
Downmix compliance meter based on the company's industry-standard loudness measurement algorithms

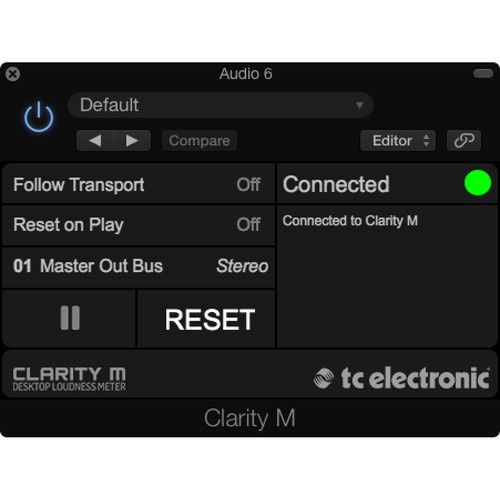

USB connection for hassle-free AAX Native, Audio Units, and VST plug-in metering

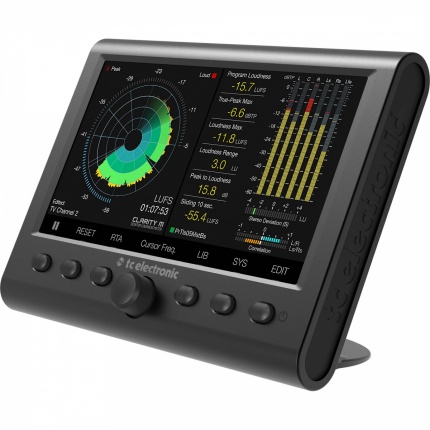

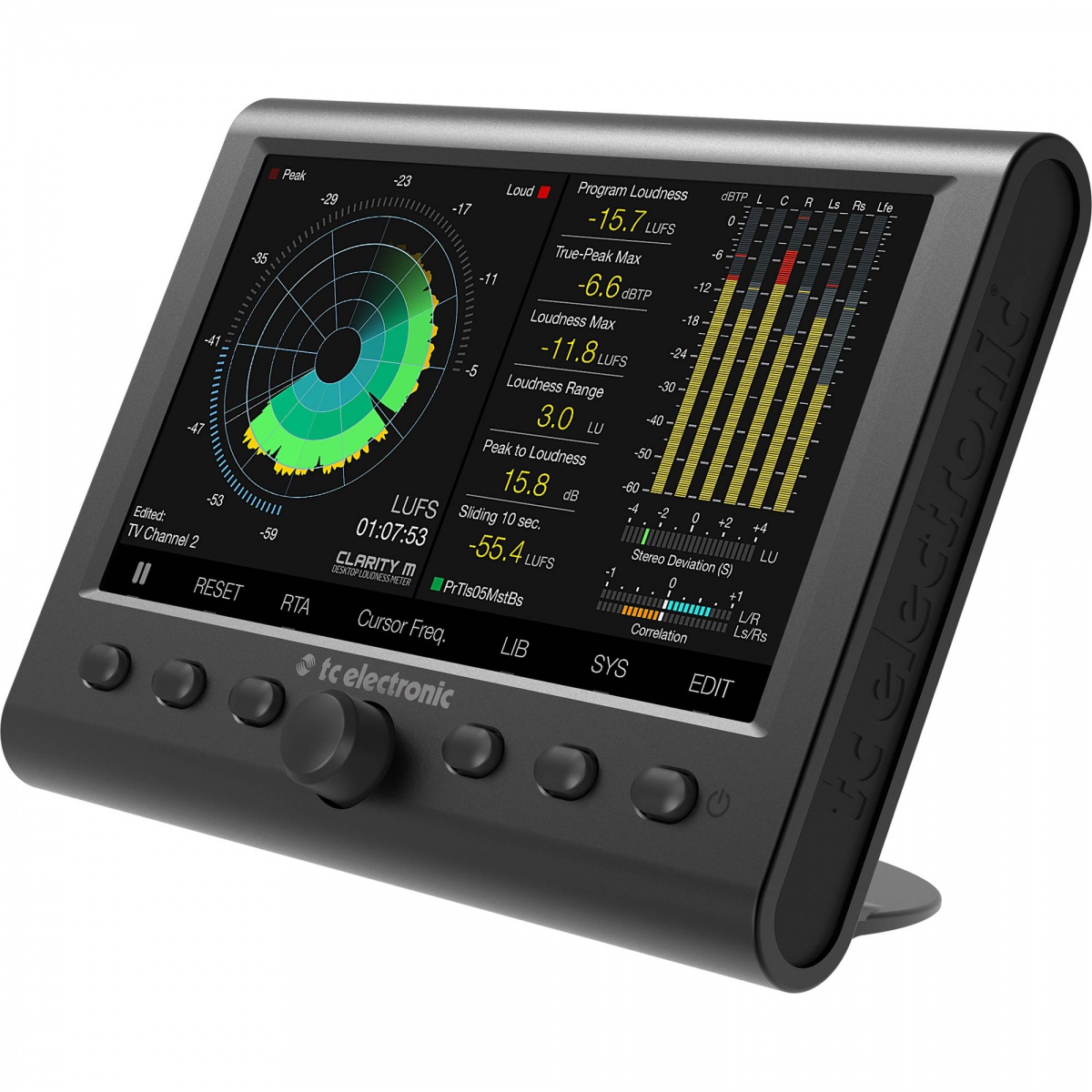

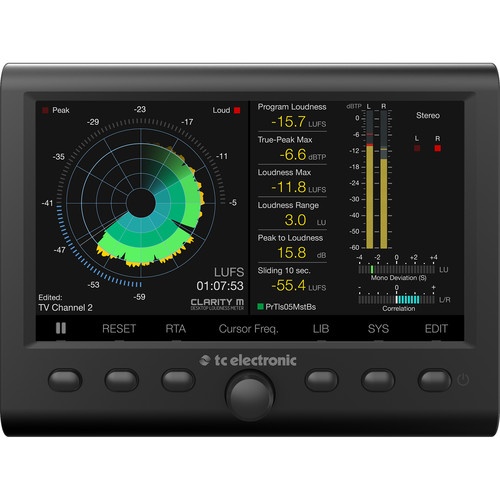

LM6 Loudness Radar Meter provides all essential loudness monitoring information on a single screen

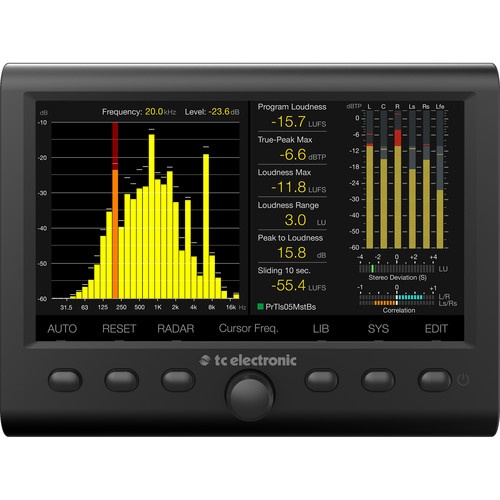

High accuracy real time analyzer with 1/3 octave resolution and individual band zoom
Multiple hardware mounting options availableIn the Box:
TC Electronic Clarity M - Desktop Audio Meter
External Universal Power Supply
DB15 Cable Assembly
BNC Female to RCA Male Adapter

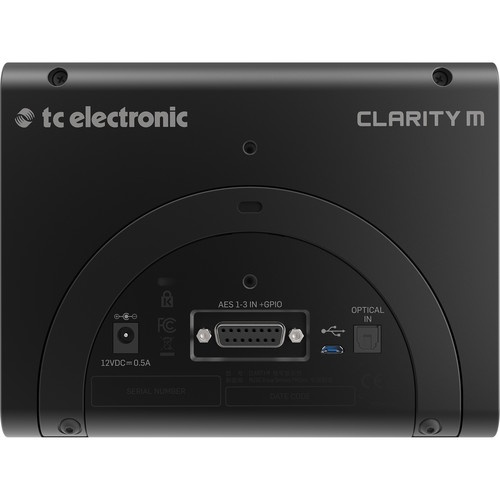

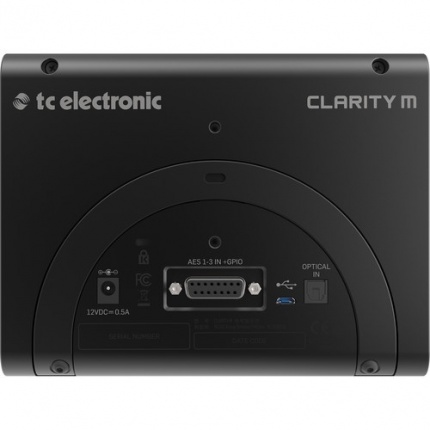

3.3' USB Cable (Type-A Female to micro-B Male)Connectors
Digital
3 x BNC AES3id, S/PDIF via DB-15
1 x TOSLink, EIAJ opticalGPIO
2 external switch inputs, 1 relay output (100 mA maximum, optically isolated)
1 x 1/8" TS female (GPO) via DB-15
1 x 1/4" TRS female (2x GPI) via DB-15USB
USB 2.0 (Micro type B)
Compliance ITU BS.1770-4
ATSC A/85
EBU R128
TR-B32
OP-59
Sample Rates Physical I/O
44.1 kHz
48 kHzPlug-In Mode
44.1 kHz
48 kHz
96 kHz
Display 7" TFT (color)
800 x 480 pixels
Controls1 x Rotary encoder
6 x Selection buttons
Power Requirements110 to 240 VAC, 50/60 Hz for included 12 VDC, 0.5 A external power supply
Mac System RequirementsClarity M Plug-In
OS X 10.9 (Mavericks) or above
Pro Tools 10 or above, or a VST/Audio Units compatible host
Windows System RequirementsClarity M Plug-In
Windows 7 or above
Pro Tools 10 or above, or a VST compatible host
Plug-In CompatibilityAAX Native 32/64-bit, Audio Units (Mac only), VST 2.4, VST3
Dimensions (WxHxD) 7.2 x 5.5 x 1" (182 x 140 x 25 mm)
Weight 1.9 lb (0.85 kg) excluding cable
