ALL YOU NEED TO GET THE MOST FROM YOUR PA. NOW WITH COMPLETE CONTROL FROM YOUR MOBILE DEVICE.

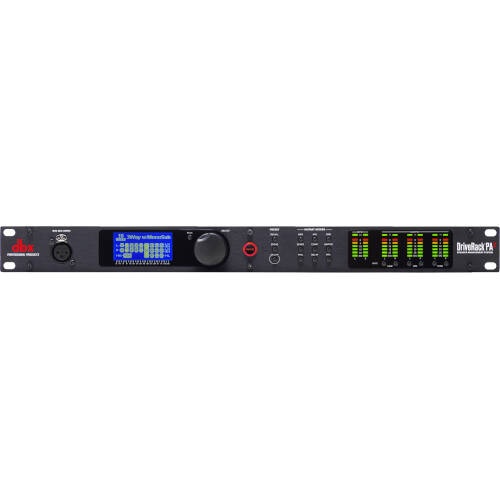

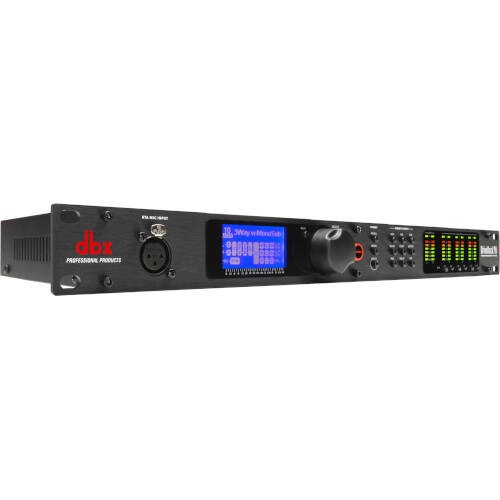

The DriveRack® PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android®, iOS®, Mac®, or Windows® device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.AUTOEQ™
New, improved AutoEQ algorithm ensures an extremely accurate, fast, and non-intrusive automatic EQ experience.With the RTA Mic “listening” to your room, the new, updated DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made very quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise.
ENHANCED AFS™ FEEDBACK ELIMINATION
Enhanced AFS™ algorithm for faster, more precise feedback elimination, without adversely affecting your system’s tone.Nothing turns audiences away like annoying and potentially painful audio feedback. Fortunately, dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before it even has a chance, while never altering your sound.
UPDATED WIZARD SETUP FUNCTIONS
Updated Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date.Wizard functions on the DriveRack PA2 guide you through easy, step-by-step processes to help you get the most from your loudspeaker system. Helps you easily configure level balancing, AutoEQ, Advanced Feedback Suppression, and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers.
In The Box:
dbx DriveRack PA2 Complete Loudspeaker Management System
-

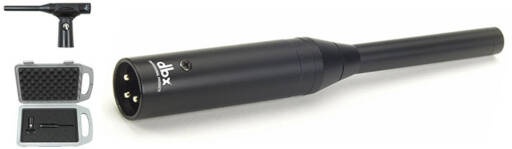

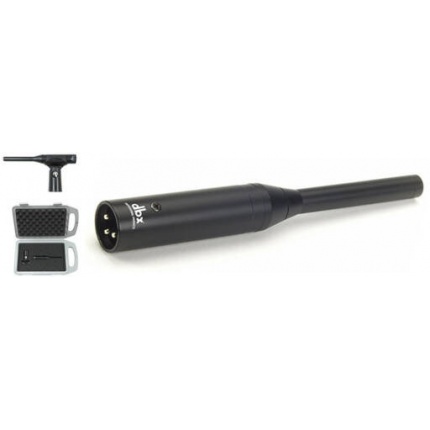

Input (2) line inputs. (1) RTA Mic input
Input Connectors (2) Female XLR line inputs. (1) Female XLR RTA Mic input
Input Type Electronically balanced/RF filtered
Input Impedance >50 kohm
A/D Converter dbx Type IV™ Conversion System
CMRR > 45dB
Mic Preamp Phantom Power +15VDC (RTA)
Mic Preamp Equivalent Input Noise (EIN) -117dB, 22Hz-22kHz, 150 ohm (RTA)

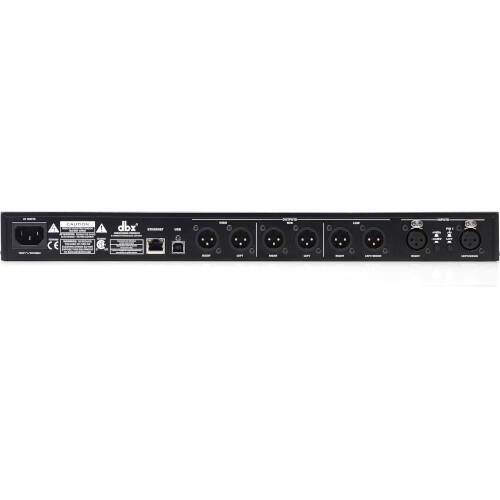

Output (6) Line Outputs
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120 Ω
Max Output +20dBu
A/D Dynamic Range 112 dB A-weighted, 110 dB unweighted
Type IV Dynamic Range 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
Input Delay Length 100ms
Alignment Delay 10ms per channel (60ms total)
Sample Rate 48kHz
Dynamic Range >110 dB A-weighted, >107dB unweighted
THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB input gain
Frequency Response 20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk -110 dB, -120dB typical (input-to-output: -100 dB)
Operating Voltage 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz
Power Consumption 22 W
Unit Weight 5.25 lbs. (2.4 kg)
Shipping Weight 6.75 lbs. (3.1 kg)
Dimensions 1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W)
D/A Dynamic Range 112 dB A-weighted, 110dB unweighted
