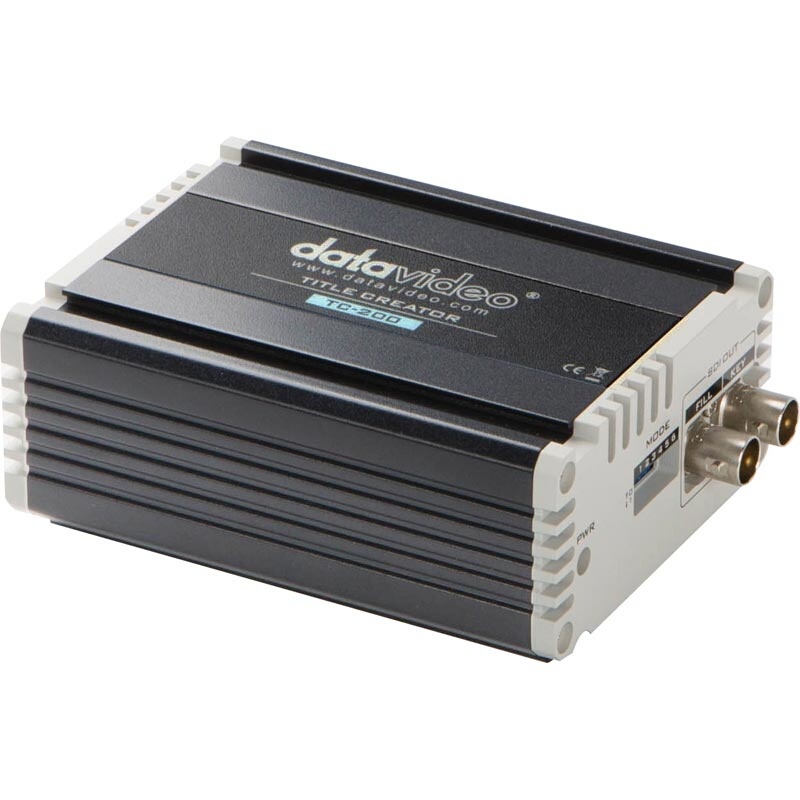

Datavideo TC-200 & CG-200 HD/SD Character Generator Kit

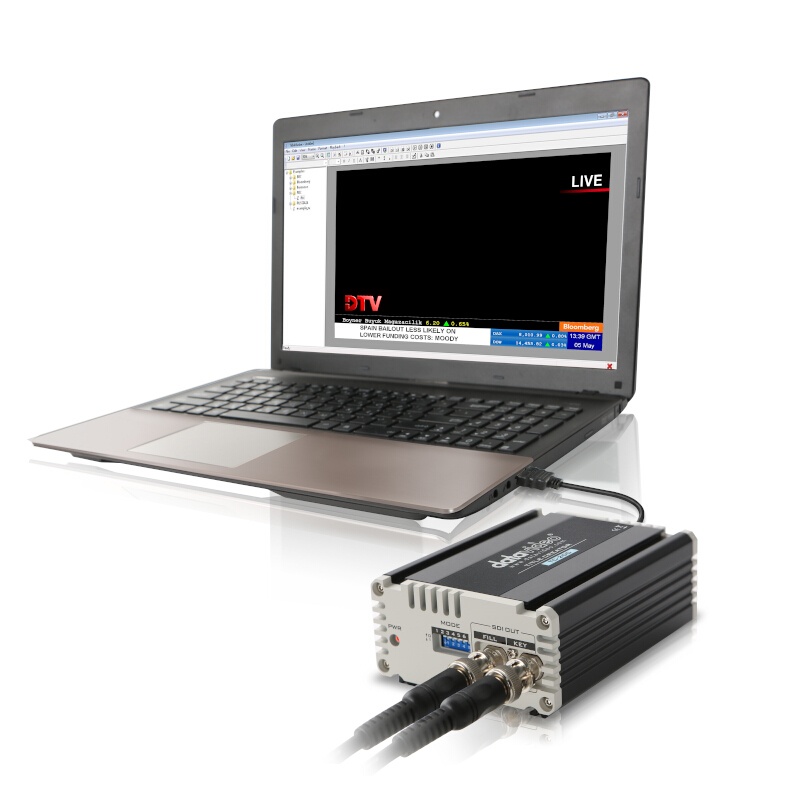

The Datavideo TC-200 & CG-200 HD/SD Character Generator Kit combines the TC-200 Overlay Box with the CG-200 CG software into an on-screen graphics and titling solution that requires minimal PC processing power. Using a standard laptop, you can create and deliver striking on-screen graphics and titles in real-time, ideal for mobile broadcasting and live video presentations. All your laptop requires, beyond common standard specs, is an HDMI input.

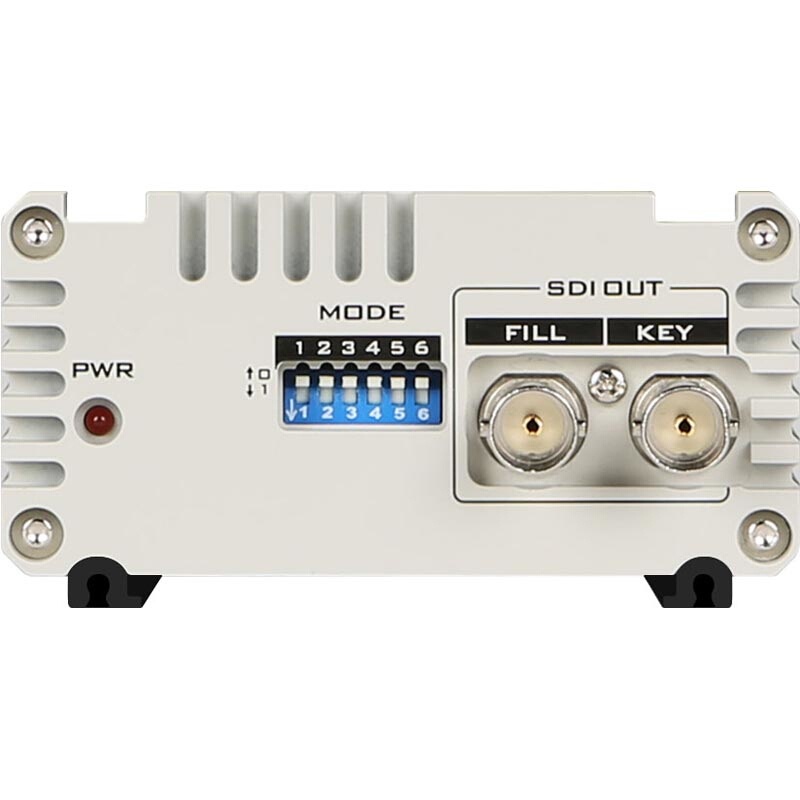

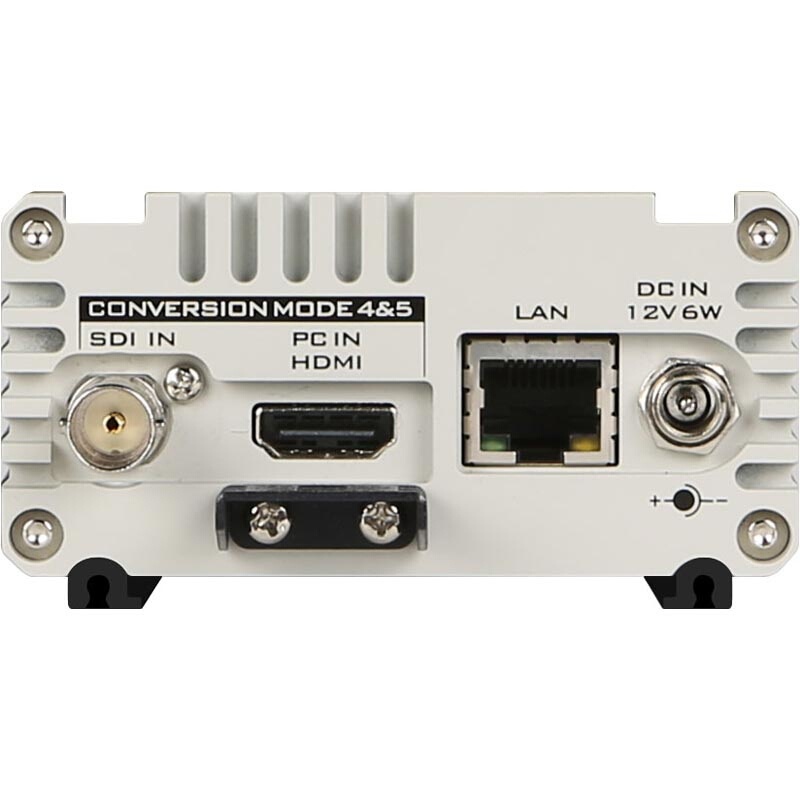

The TC-200 offers an SDI input supporting Overlay mode and two SDI outputs supporting DSK (down-stream keyer) Fill and Key signals, allowing you to forego the use of an SDI adapter installed into your computer, and in turn allowing you to use a laptop on-the-go. This kit supports vision mixers with and without a DSK. In cases without a DSK, the TC-200 Overlay Box's Title Overlay mode substitutes for the lack of it.

The TC-200 works on 7-15V of operating voltage. It supports 7.2V and 14.4V DV batteries using an optional Datavideo MB-4 Battery Adapter (required).

Features:

Live Title Generator
No additional PCI card required
Supports SDI overlay function or DSK function via HDMI
Support HD/SD SDI input and output in Overlay mode

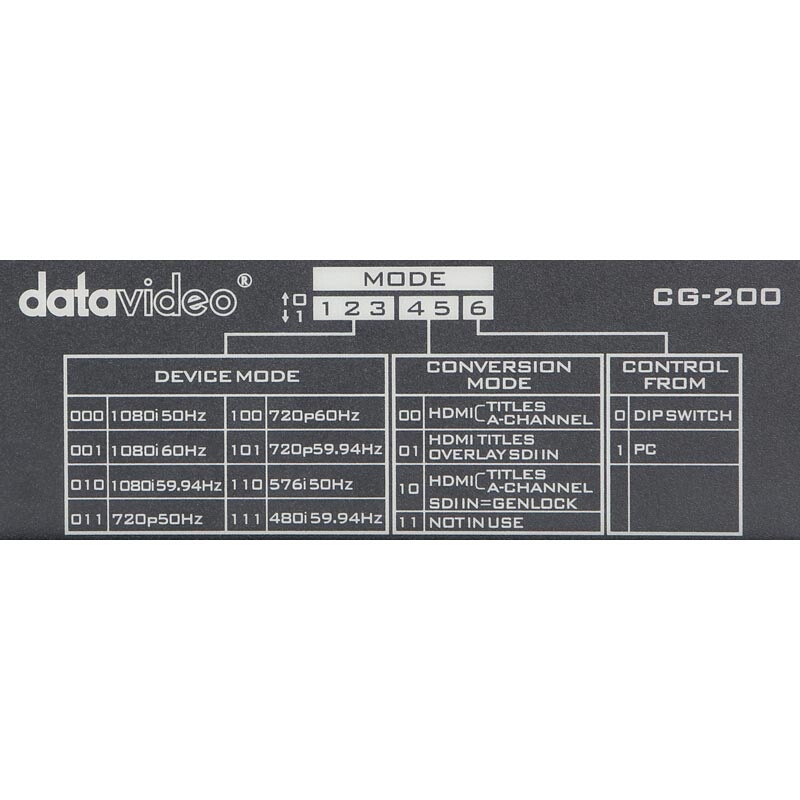

Supports 1080i60/59.94/50, 720p60/59.94/50, 576i50, and 480i59.94
Title editing on laptop
Compatible with Windows 7/8 and supports all Windows fonts
Multi-language support
Supports animations including JPG, TAG, GIF, BMP, PNG
Supports scrolling
Title editing patterns include Slide and Reveal
Easy logo setups
User definable clock display
TC-200 Overlay Box features a 7-15V working voltage and can be used with 7.2V and 14.4V batteries (an optional Datavideo MB-4 battery adapter is required)

DSK Mode:

The TC-200 and CG-200 can be used with a vision mixer equipped with a DSK (down-stream keyer). In such a setup, they can be set up as the key source or fill source. Any vision mixer with a DSK is supported, such as the Datavideo SE-2800 and SE-3000.

Overlay Mode:

When no DSK is being used, the Title Overlay mode substitutes for the lack of it. Using the TC-200 Overlay Box, the HDMI output from a laptop is embedded with the SDI output from a camcorder, VTR, or vision mixer.

Text & Animation Tool:

This tool allows you to edit color, size, transparency, board, location, and alignment.

Scrolling Function:

Puts all the contents you need in text frame. Scrolling speeds can be preset.

UNICODE:

The CG-200 software adapts UNICODE and supports all fonts in Windows.

Overlay Function:

The TC-200 combines CG from the laptop's HDMI port with the SDI video signal and overlays graphics in real-time.

Text File Loading:

The CG-200 software is capable of directly importing text files.

In The Box:

1x TC-200 product
1x AD Switch DC 12V
