The ITC-100SL Additional Beltpack from Datavideo is the same beltpack as the 4 that come included with the Datavideo ITC-100 intercom system. It can be used as a replacement or to expand the system. The ITC-100 intercom system supports up to 8 of these beltpacks in total.

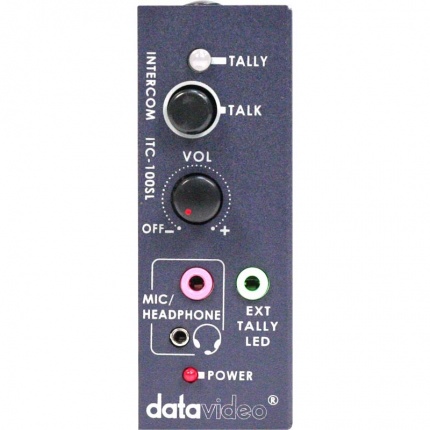

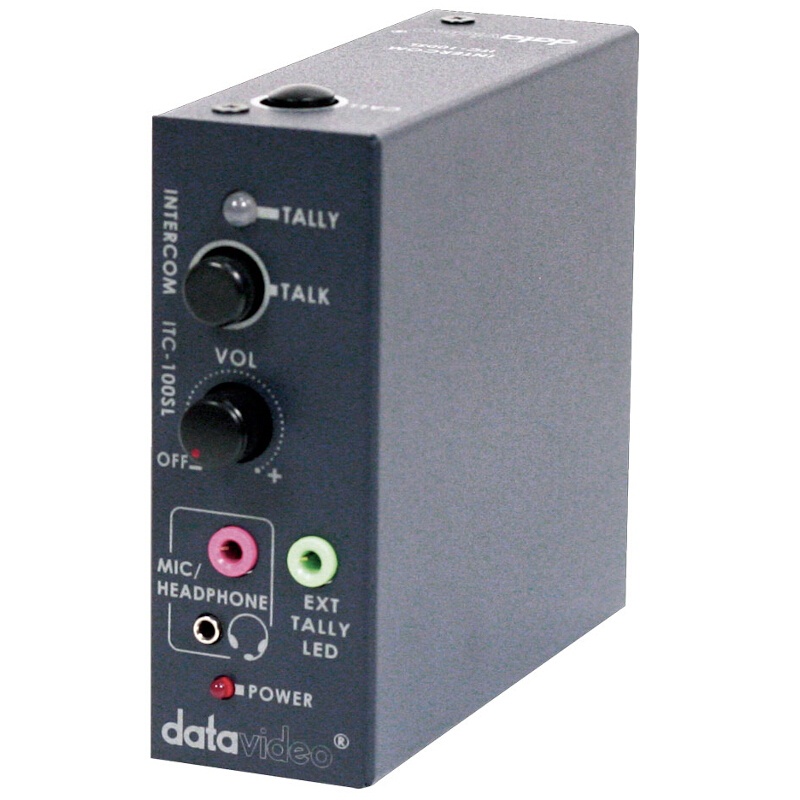

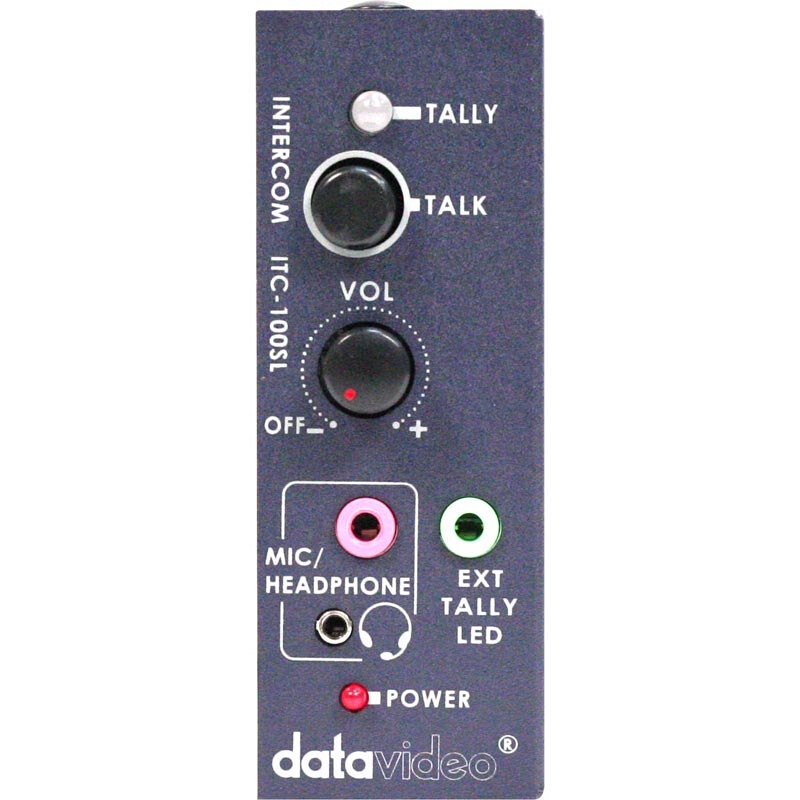

The beltpack features a 5-pin XLR input for talkback, power, and tally, and 3.5mm and 2.5mm headphone jacks for standard or Motorola type headphones. It has call and talk buttons, volume control, and a bi-color tally light. You can use it over a 650 ft communication distance.
In The Box:
1 x ITC-100SL Belt Pack

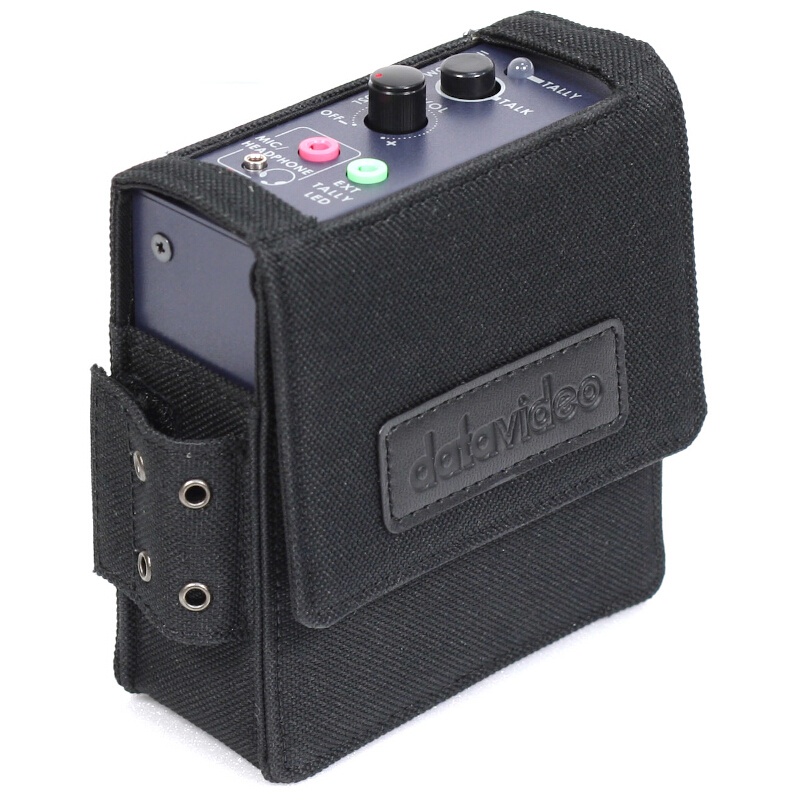

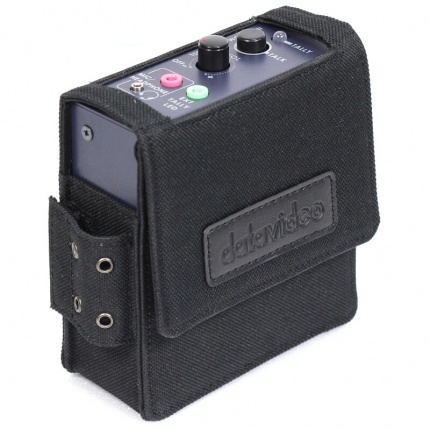

1 x ITC-100SL Carry Case
1 x Headset with microphone

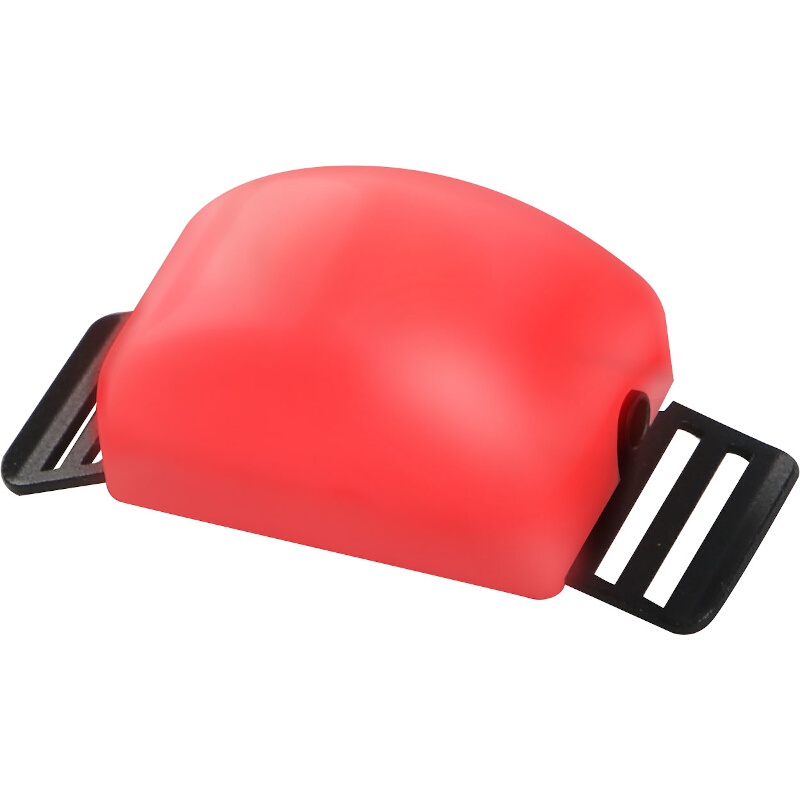

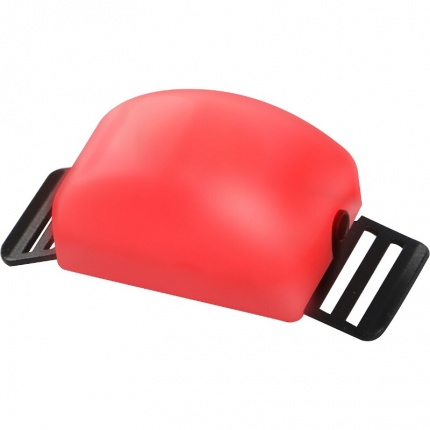

1 x Tally LED Indicator
1 x GPI Cable
1 x Cable 5piin XLR to XLR
1 x Earphone Cable
1 x Black Velcro
1 x VelcroInput

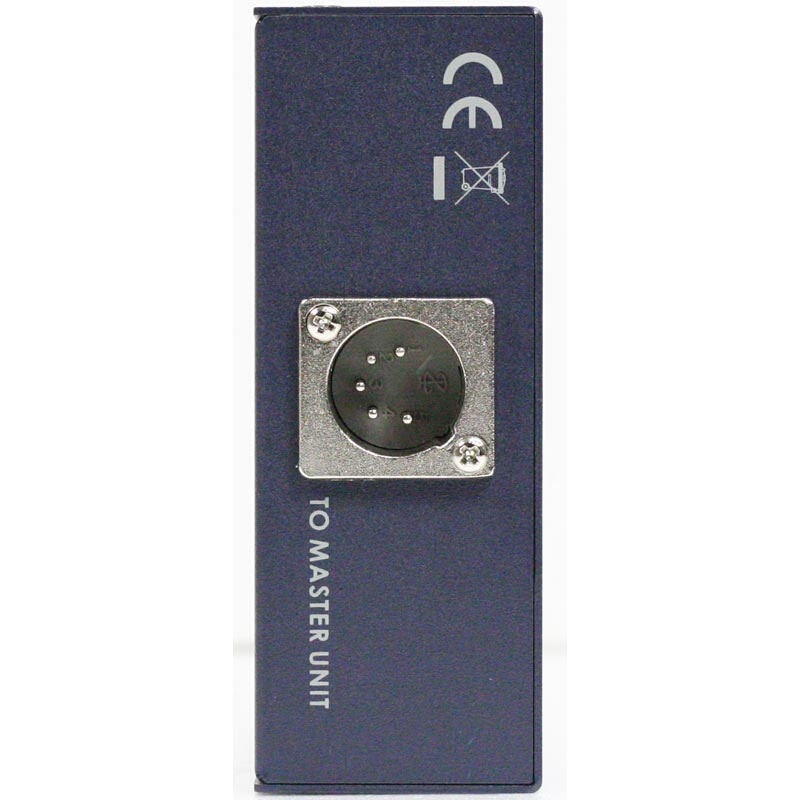

5 Pin XLR ConnectorMic/headset socket
3.5mm Stereo Jack Socket for combination
Headphone / Microphone
Headset Impedance 8~600 ohms 100mW(min)
Microphone Level -67dB
Or
2.5mm Stereo Jack Socket, for Motorola Mobile
Phone type headset / microphoneFrequency response
550-3.6KHz, +/-3dBTHD
3%S/N
50dBTally out socket
3.5mm Jack Socket to connect to TD-2 or TD-3
Tally IndicatorTally LED
Bi-Color LED – RED indicates LIVE / GREEN
Indicates CUEDPower LED
Illuminates to indicate that power is being receivedOperating range
Up to 200m between Base Station and SlaveOperating Temp. Range
5 ~ 40°CDimension
114 x 97 x 35 mmWeight
0.3 kg
