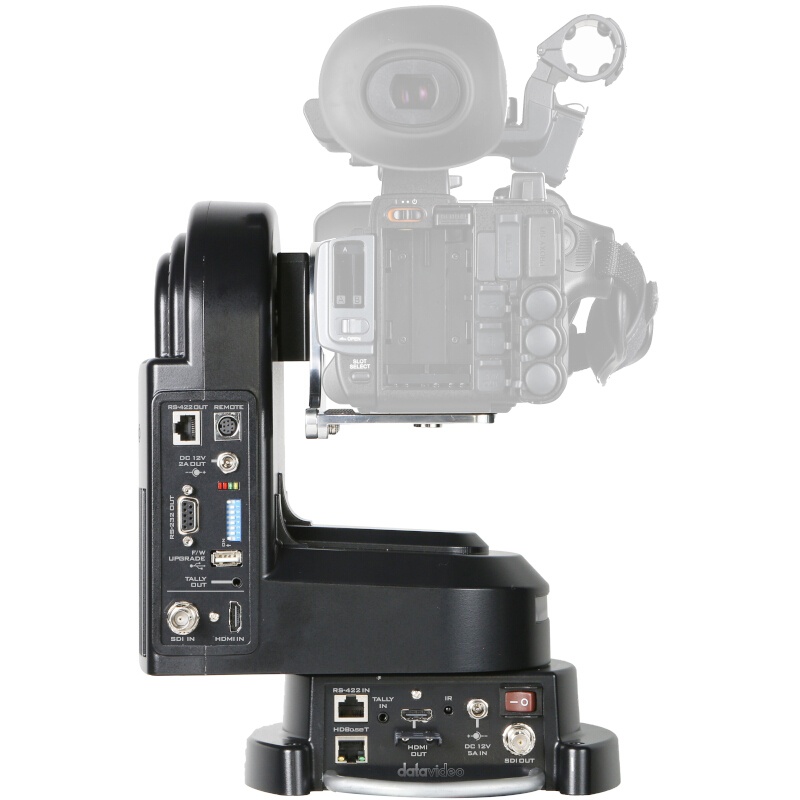

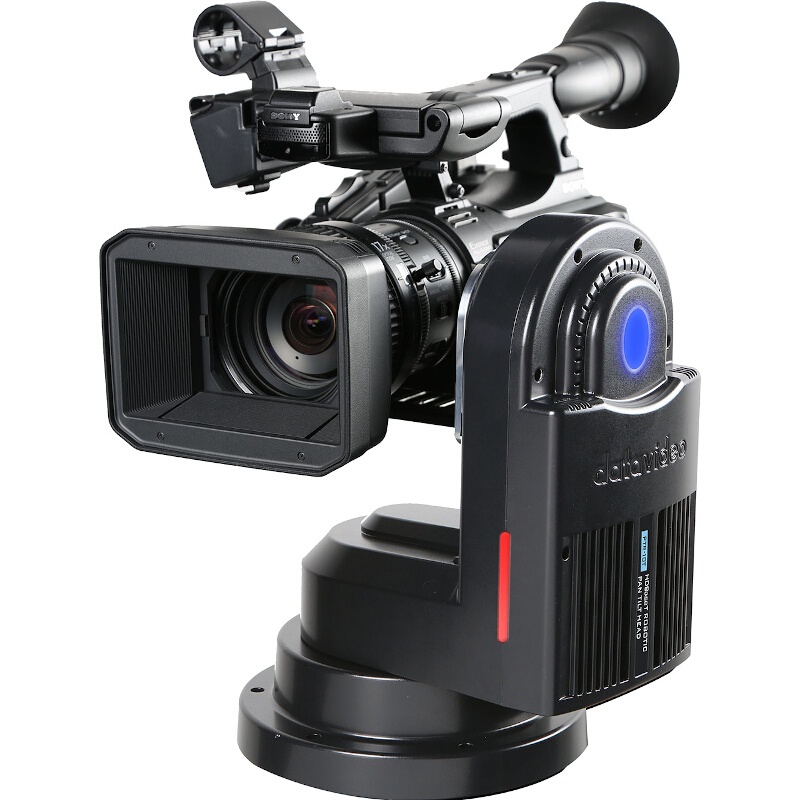

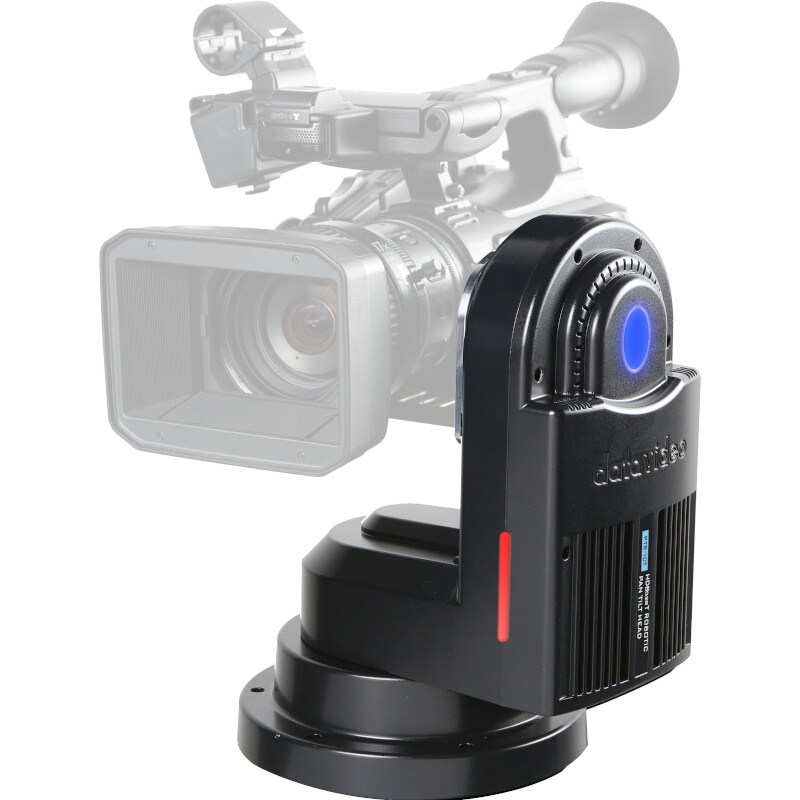

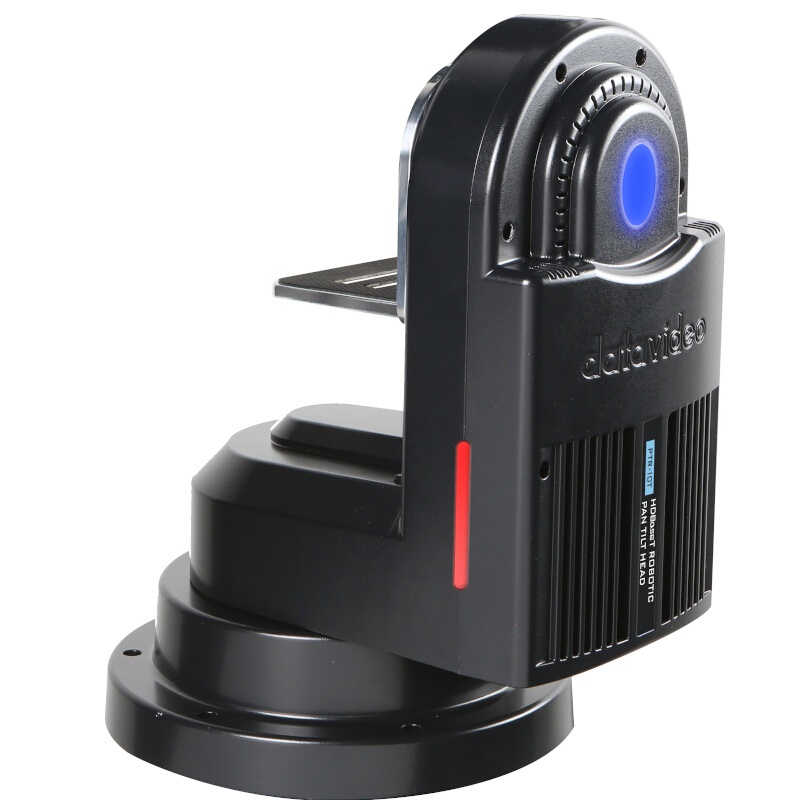

Datavideo PTR-10T MK II Robotic Pan and Tilt Head (HDBaseT)

S$ 3,780.00
(S$ 3,780.00 excl GST)
Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!
Key Features:
  • Tripod, Wall, and Ceiling Mountable
  • Pans and Tilts Remotely
  • Supports up to 8.8 lb
  • HDBaseT Port; 3G-SDI and HDMI Interface
  • Mount and control your 8.8 lb camera remotely with the Robotic Pan and Tilt Head from Datavideo. It can be mounted onto a tripod, wall, or ceiling, allowing you to maneuver your camera in different positions. It receives video via the 3G-SDI or HDMI input, and it features 3G-SDI and HDMI outputs for delivering the signal to external devices. The featured HDBaseT port allows you to connect to HDBaseT switchers. The device is equipped with LED indicators and a remote port that allows you to adjust the zoom and focus of select camera lenses. It supplies power to the attached camera via a 12 VDC, 2A output and can be operated via the included remote control.



    Features:

    Multiple signal interfaces such as 3G-SDI, HDMI, RS-232, RS-422, HDBaseT, tally, and LANC
    Sturdy aluminum alloy design
    Camera pan, tilt, and zoom control
    RMC-180, RMC-300C, VISCA protocol controller, IP control, and IR remote control
    Built-in tally light
    Ideal for live events
    Supports zoom control for Datavideo block cameras and other cameras with power support
    DIP switch
    Plate with 1/4"-20 thread for camera mounting



    In The Box:

    1x LANC Cable
    1x HDMI Cable
    1x BNC Cable
    1x Power Supply with Cords
    Remote Controller

  • Video Interface
    HDMI x 1
    SDI x 1
    HDBaseT x 1 (HDBaseT)

    Video Output
    2160p 29.97/25
    1080p 59.94/50
    1080i 59.94/50
    720p 59.94/50

    Control Unit
    RMC-180
    RMC-300C
    VISCA Protocol Controller
    IP Control
    IR remote

    Panning / Tilting Range
    Pan: 340°
    Tilt: ±45°

    Panning / Tilting Speed
    Pan: 0.2~15° /Sec
    Tilt: 0.1~10° /Sec

    Preset
    Pan/Tilt position 50

    Control Distance
    1,200M by RS422
    100M by DVIP

    Control Protocol
    RS-422
    DVIP

    Control Input
    RS-422
    HDBaseT

    Maximum Load
    4 KG Max

    Control Output
    RS-232
    RS-422
    BX-Lens
    LanC

    Power Requirement
    DC 12V~ 18V, 3A (Without Camera)
    DC 12V~ 18V, 5A (With Camera)

    Power Supply
    DC 12V, 24W Max

    Operating Temp. Range
    0~40 C°

    Operating Humidity Range
    10~80%

    Storage Temp. Range
    -10~60 C°

    Storage Humidity Range
    5~80%

    Weight
    3.4 kg

    Dimension (LxWxH)
    230 x 190 x 300 mm
