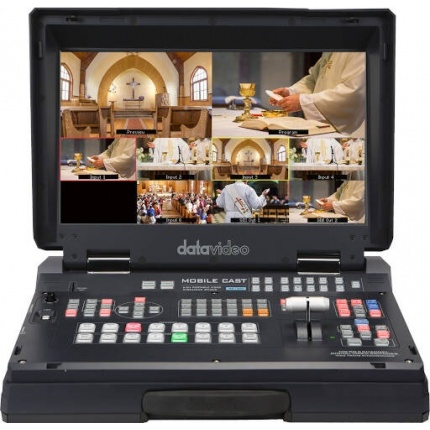

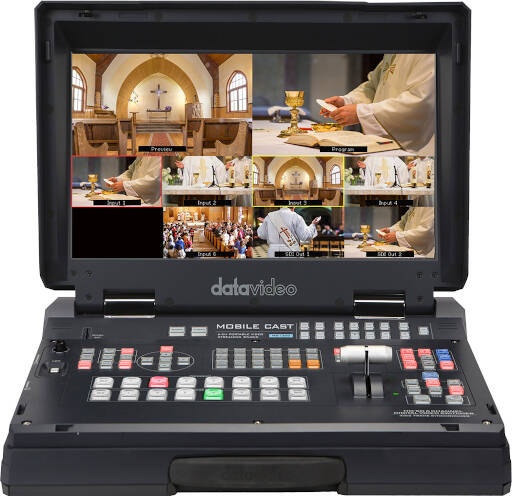

The Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio can switch up to six live 1080i or 720p HD video inputs while recording and streaming the program feed. Effectively, this makes the HS-1300 a portable TV studio that you can take anywhere and set up with minimal effort or extra equipment.

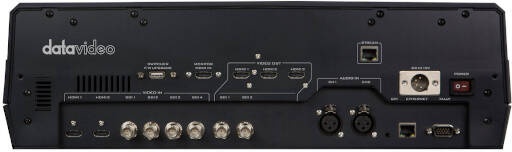

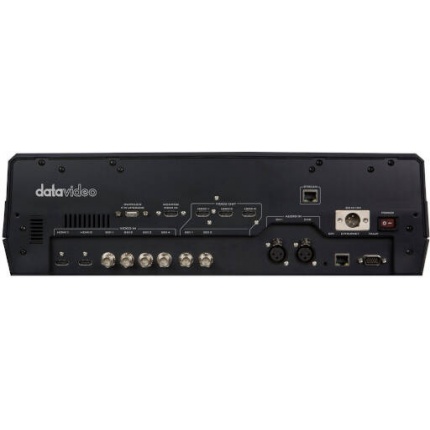

Four SDI and two HDMI inputs can be connected to cameras or other consumer or professional video sources. Audio can be brought in from a separately available mixing board via a pair of XLR inputs. Recording and streaming uses the ubiquitous H.264 format, at up to 10 Mb/s.
A single mix-effect bus features two upstream keyers, two downstream keyers with linear and luma key modes, wipe, cut, and mix transitions, plus one picture-in-picture, and all with full preview. Concert productions, events, houses of worship, and educational institutions with live sports programming are some of the few use cases where the HS-1300 could be useful.
When it's time to wrap production, close the 17.3" screen, unplug the video sources, and carry the switcher using the built-in handle, like a suitcase.
Features:
Supports 6 video inputs (4 SDI, 2 HDMI) and 3 video outputs (2 SDI, 3 HDMI)
Encodes to different bit rates for recording and streaming
H.264 AVC encoding up to 10 Mb/s
Two XLR audio inputs
Frame store from any input
Cross-point assignment
Tally and GPI output
17.3" LCD screen with 1600 x 900 resolution
Easy-to-navigate on-screen menu system
Headphone jack for audio monitoring in program display modeIn The Box:
Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio
Power Supply with Power CordVideo Standard
HDVideo Format
1080i 50/59.94/60Hz
720p 50/59.94/60HzInput Routable / Crosspoint
All 6, repeatableVideo Input
4 x HD-SDI
2 x HDMIComputer Graphic Interface
2 via HDMIDown-converted Output
N/AVideo Output
3x HDMI2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview
Audio Input
2x Balanced XLRAudio Output
1x Stereo headphoneDigital Embedded Audio Support Input
Input 2 channels, Output 2 channelsA+V Switching
YesUSK
2x USK support ChromakeyDSK
2, support Lumakey & Linear key (Key / Fill)Picture in Picture
1Logo Insertion
N/ABuilt-in Audio Mixer
N/ABuilt-in Monitor Display
17.3” HD TFT LED backlit, 1600x900 pixBuilt-in Intercom & Tally
N/AStreaming Video Encode
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10MbpsStreaming Audio Encode
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bitStreaming Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)
SRTStreaming Control
Web browser UI for configuration and control Socket commandsRecording File System
FAT, exFAT, NTFSRecording File Format
MP4Recording Setting Control
Web UI for system configuration and controlSpecial Features
Streaming encoder and recorder
2 chromakey virtual studio
9 stinger transition and 30 virtual sets includedDimension (LxWxH)
455 x 355 x 134 mmWeight
16.3 Lbs (7.4 kg), Reinforce Plastic CasePower
DC 12V, 5AOperating Temp. Range
0~40 °COptions
CB-22H/23H/46/47/60/61/62What's in the Box
Content
1 x HS-1300 Product
1 x AD Switch DC 12V with AC Cord
1 x Thank You CardDrive Compatibility
For a list of verified compatible drives, visit the Drive Compatibility Page
