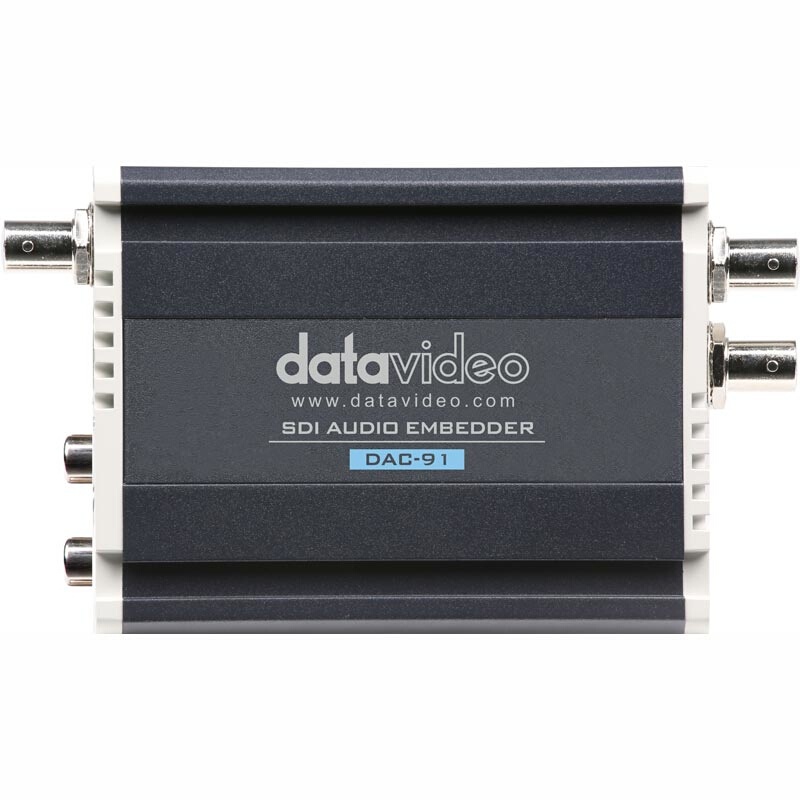

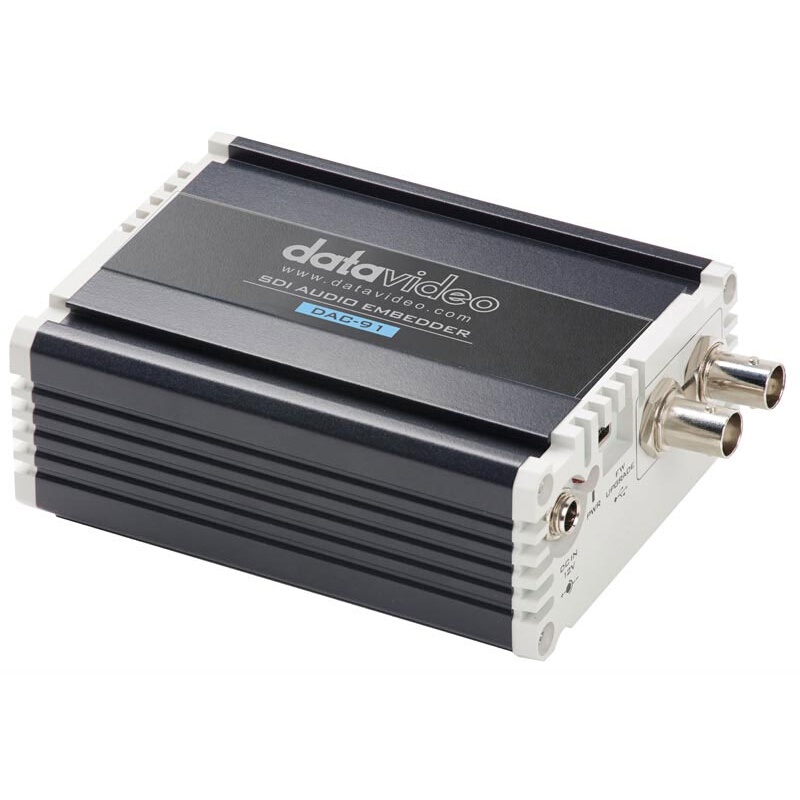

The Datavideo DAC-91 is an embedded audio box with useful functions that allow users to embed 2 channels of analogue audio into SDI video signal.
It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio.
The Audio box also has audio level adjustment by using the built-in DIP switches.
Features:
Audio Embedder
Embed Audio into an SDI Signal
Automatically detects 3G, HD, SD signal

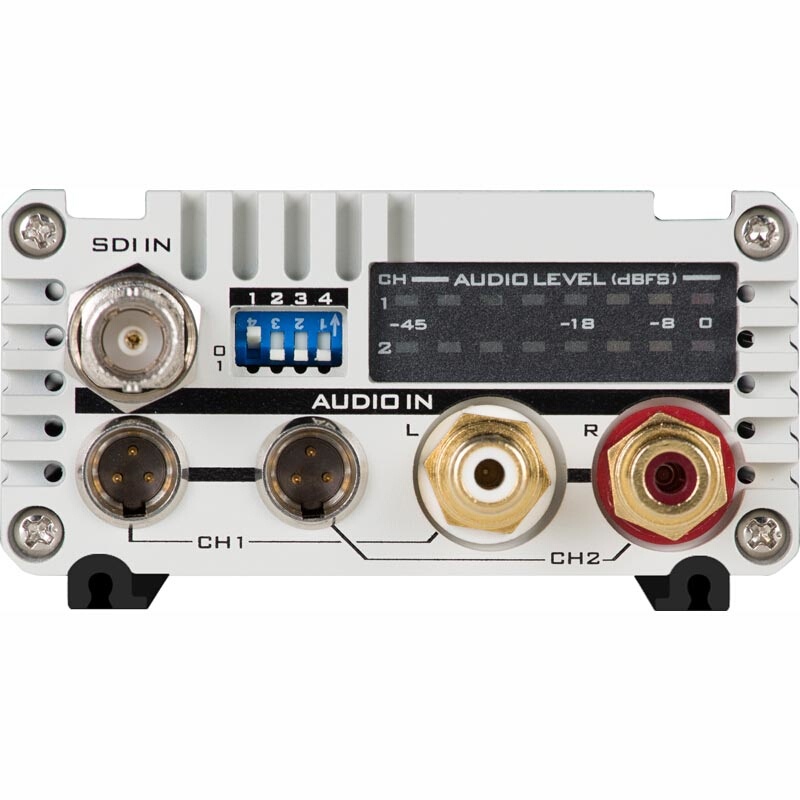

4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
Audio level indicator display
Audio level adjustment
Control via DIP SwitchesIn The Box:
1 x DAC-91 product
1 x AD Switch DC 12V
2 x Mini XLR to female XLR cableDAC-91 Audio Embedder
SDI Video Input

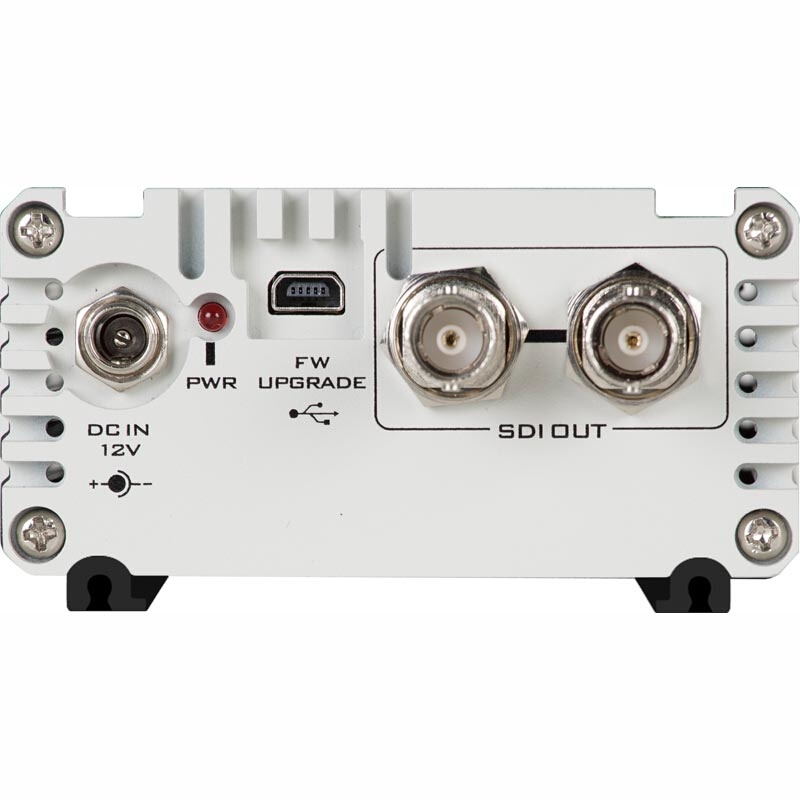

3G/HD/SD-SDI x 1SDI Video Output
3G/HD/SD-SDI x 2Analog Audio Input
Mini XLR (balanced) x 2 ,RCA (unbalanced) x 2
* Mini XLR1 & RCA1 mixed to CH1
* Mini XLR2 & RCA2 mixed to CH2Indicator
Power LED x 1 Audio Level LED : 2 rowsUpdates and Configuration
Mini USB x 1Audio Format Selection
SMPTE, EBUGain
YesDimension (LxWxH)
112 x 85 x 45 mmWeight
0.4 kgOperating Temp. Range
0~40 °CPower
DC 12V, 0.5A
