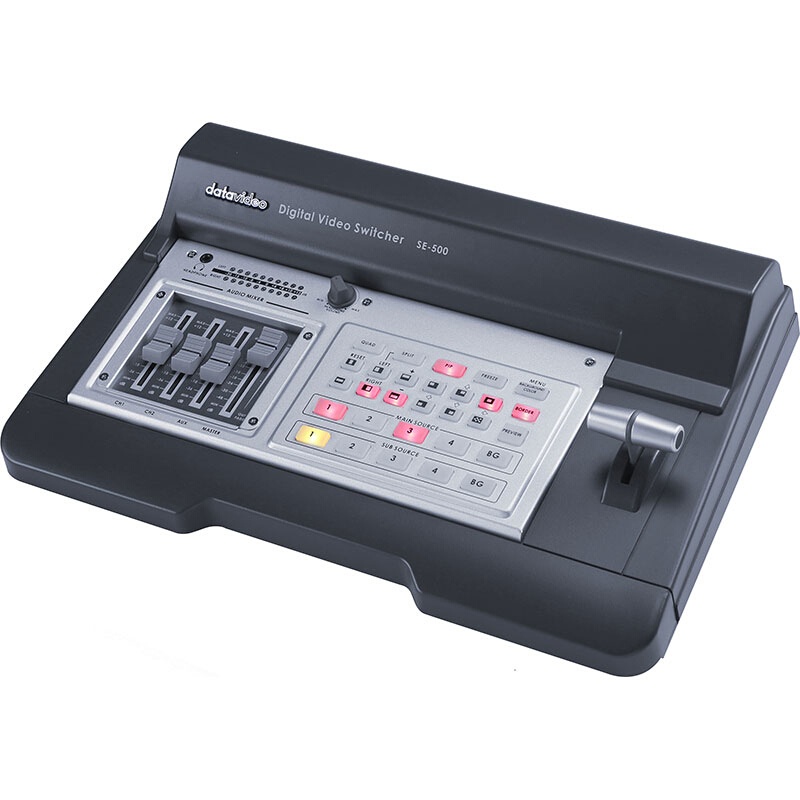

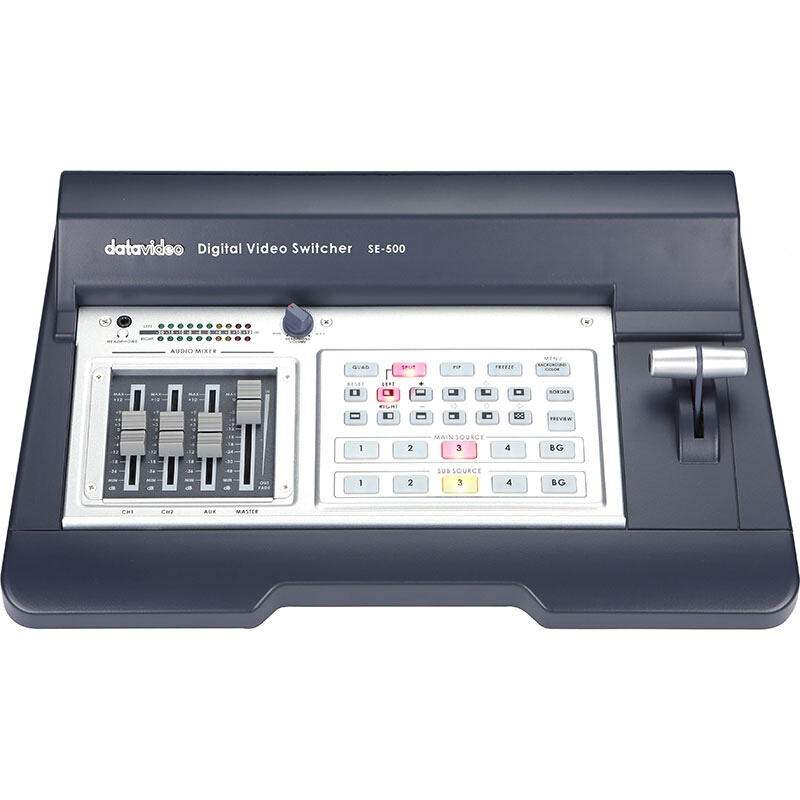

Datavideo SE-500 4-Channel Analog SD Video Switcher

Coming with a color correction feature, four video input groups (4 being composite and 4 S-Video type), an audio mixer for four channels, video transition effects, two microphone inputs and a MIDI control interface, an RE-233 remote control interface and other amazing professional features, the DataVideo SE-500 NTSC is an absolute bargain.

The DataVideo SE-500 NTSC defines a video switcher, integrating analog input and digital processing. It is a popular video switcher that comes with a unique feature known as Quad Preview. This is used in displaying indicators for next video effects and tally light signals. The SE-500 is compact in size and includes all the features you would need in a video switcher and available in other models that are more expensive than the SE-500. With this model, the operator can further monitor some important activities including all video transition effects; camera activities while at the same time they can be able to observe as many as four different video input sources.

Once set up, use the T-bar and illuminated selection buttons to switch and apply effects to your video signals. Some built-in transitions include dissolves, fades, and wipes. The SE-500 can also be controlled via RS-232 (DIN-15 connector) and MIDI. Essential effects such as picture-in-picture (PiP), color processing, and split-screen are also integrated into the SE-500. To keep things simple, all inputs are internally synced by a 4-channel 4:2:2 time base corrector (TBC), so no genlock or external syncing is required for achieving smooth transitions.

Features:

4 Channel Analogue Vision Mixer
S-Video (Y/C) or Composite Video Inputs

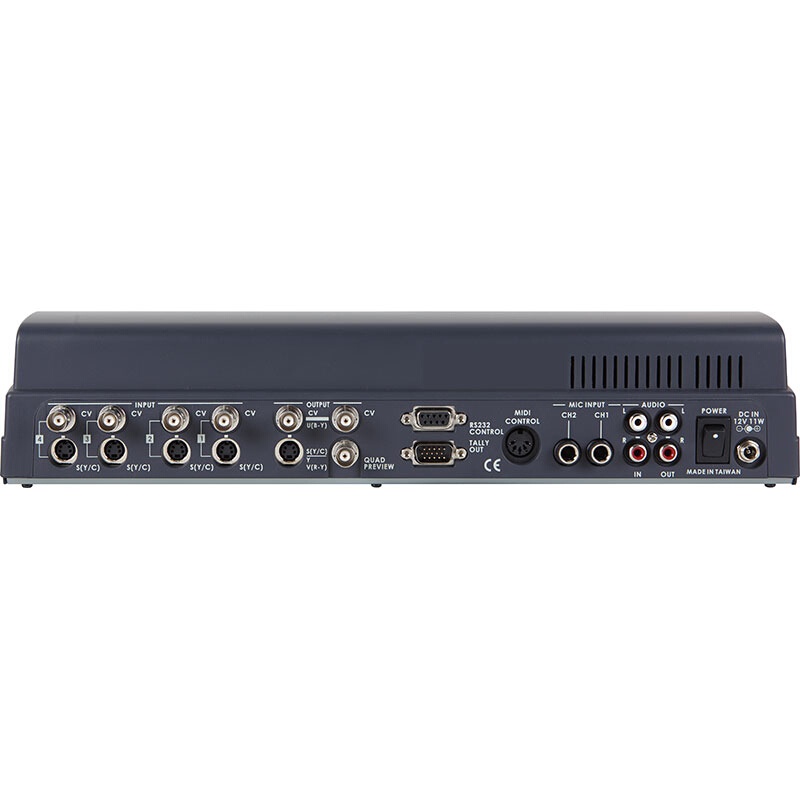

Component YUV / S-Video (Y/C) / 2 x Composite Video Outputs
1 x Stereo (Unbalanced)
2 x Microphone Inputs
Stereo (Unbalanced) Output
Quad View display output
Tally Display
Preview output
Smooth T-bar Control
Dual channel TBC 4:2:2 Frame Synchroniser
Tally Light Output

In the Box:
Datavideo SE-500 4-Channel Analog SD Video Switcher
AC Adapter
S-Video Cable
2 x BNC to RCA Connector
