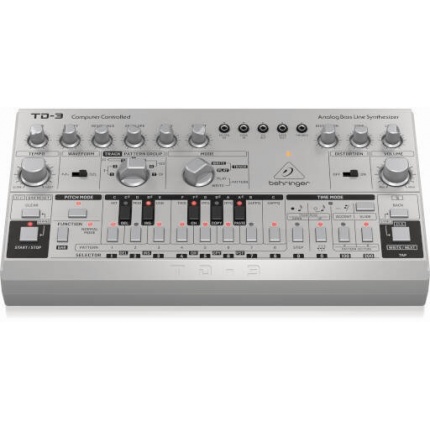

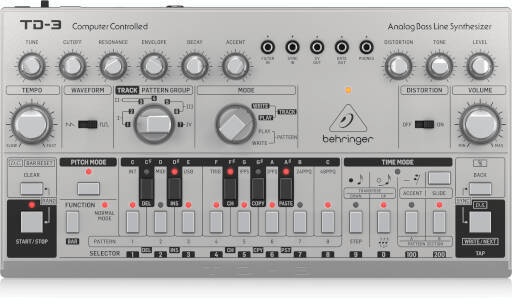

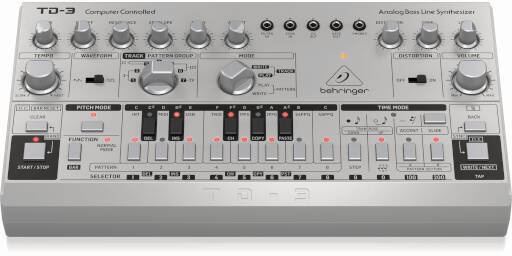

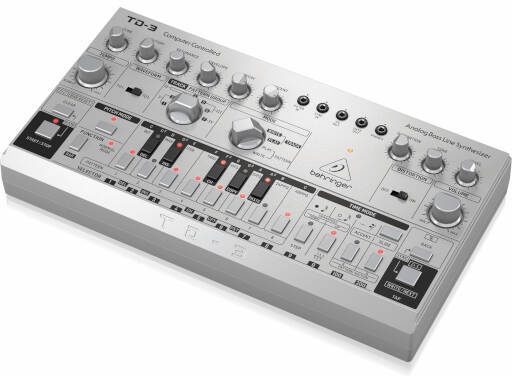

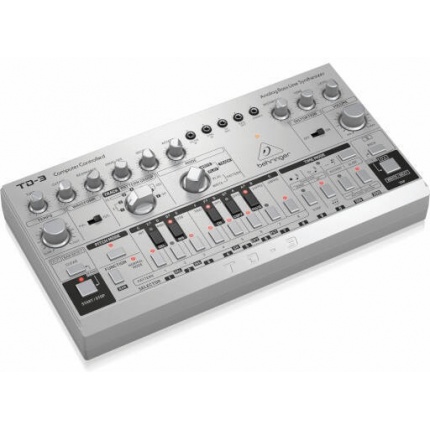

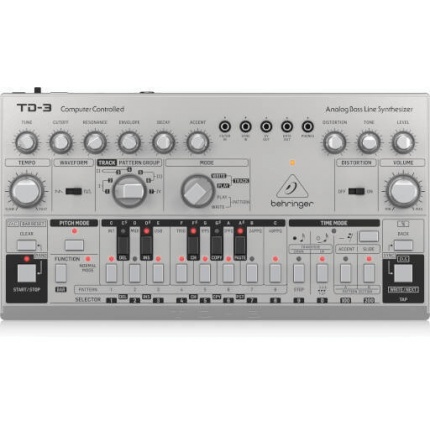

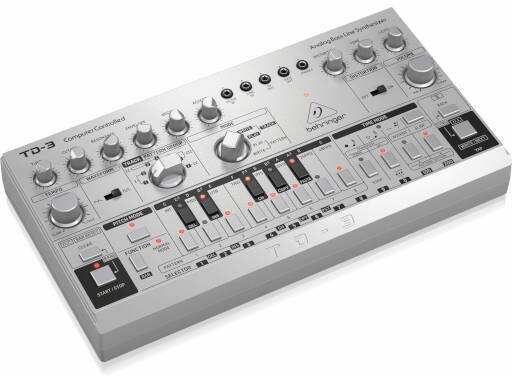

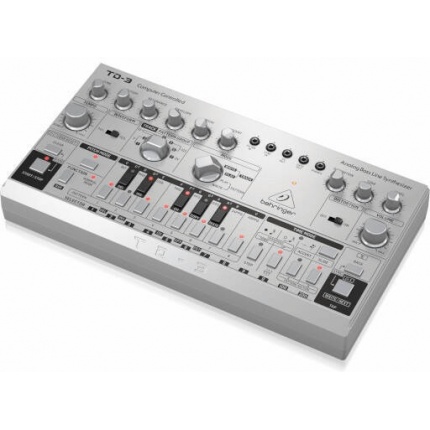

The silver Behringer TD-3 Analog Bass Line Synthesizer is an authentic reproduction of the highly regarded TB-303, making it well suited for producers, musicians, and analog synthesizer enthusiasts. The TD-3 features are true to the original VCO, VCF, and VCA designs, with pure analog circuitry and matched transistors to recreate that iconic sound so many people have come to know and love. The 11 controls and 28 switches provide direct and real-time access to all important parameters, making the experience highly intuitive and inspirational.
The single oscillator is switchable between saw and square waveforms, while the famous 4-pole transistor ladder filter provides an 18 dB/oct response and includes controls for filter cutoff and resonance. Program and generate patterns using the simple 16-step sequencer with seven tracks (each with 250 user patterns), or use the onboard arpeggiator to create a wide variety of patterns for great sound effects. The included distortion circuit is modeled after the DS-1 and provides drive and edge for your sound.
The rear panel offers a 1/4" output, two 5-pin DIN MIDI connectors (In and Out/Thru), and a MIDI-USB Type-B connector for connecting to a computer. The SynthTool application is a free editor/librarian that allows you to create, save, and load patterns. The top panel features 3.5mm connections for filter input, sync input, CV output, gate output, and headphones. A power adapter is included.
In the Box
Behringer TD-3 Analog Bass Line Synthesizer with Sequencer and Distortion (Silver)
Power AdapterSynthesizer Structure Number of Voices: Monophonic
Type: Analog
Oscillators: 1
VCF: 1 Low-Pass
Envelopes: 1
Connectivity Power Input: DC Input Connector
Power Switch: Push Button On/Off
MIDI In/Thru: 2 x 5-Pin DIN (MIDI In and MIDI Thru)
USB (MIDI): USB 2.0 Type-B
Output: Line output: ¼" TRS, Unbalanced, Maximum +8 dBu
Output Impedance: 1.5 kOhms
Headphones: 3.5 mm TRS, Maximum 50 mW / 32 Ohms (1 kHz, 1% THD)
Headphones Output Impedance: 15 OhmsInput (1/8" / 3.5 mm)
Filter In: +12 dBu
Sync In: >2.5 VOutput (1/8" / 3.5 mm)
CV Out: +1 to +5 V (1 Volt/Oct)
Gate Out: 0 to +12 V
Operating Temperature 41 to 104°F / 5 to 40°C
Power External Power Adapter (Use Only the Supplied Adapter): 9 VDC 670 mA
Power Consumption: 2 W Maximum
Indicator Power: LED
