4-Zone Sound System with 8 ElectroVoice EVID S5.2 + Cloud 36-50 Amplifier

Buy Multi-Zone Sound System with 6 ElectroVoice EVID S5.2 (White) + Cloud 46-120 Amplifier online from Singapore's Premier AVL Superstore. This 3-zone sound system is great for cafes, restaurants, pubs or anywhere full-range multi-zone background music is desired.

This bundle will be suitable for maximum Possible Coverage Area of 240sq/mt (2650sq/ft) @ 4mt (13' ) mounting height, indoors or protected outdoor spaces

We have curated a fuss-free bundle for you, combining the unique Electro-voice EVID S5.2 speakers which will provide you with rich full-range sound and a rock-solid Cloud Electronics 46-120 mixer-amplifier of Cloud Electronics UK heritage. We even supply the hookup diagram when you purchase the bundle from us. All you need is to have the cables run and hook up the speakers according to the simple diagram and you will be in business.

This minimal-fuss bundle is designed to playback music without meddling with many complicated controls.

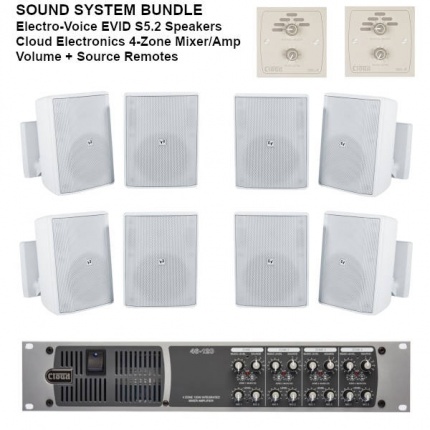

Package consists of

8 x Electro-Voice EVID-S5.2 5" 2-Way 8 Ohms Commercial Loudspeaker (White)
1 x Cloud Electronics UK 46-120 Mixer-Amplifier
4 x Cloud Electronics UK RSL-6 Remote Source+Volume Control
1 x 3.5mm minijack to RCA cable for connection to laptop or music playback
1 x Professional speaker cable AWG16, grey jacket, tinned x 100m roll

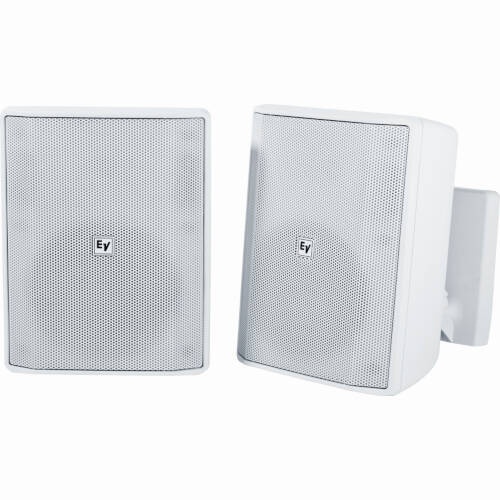

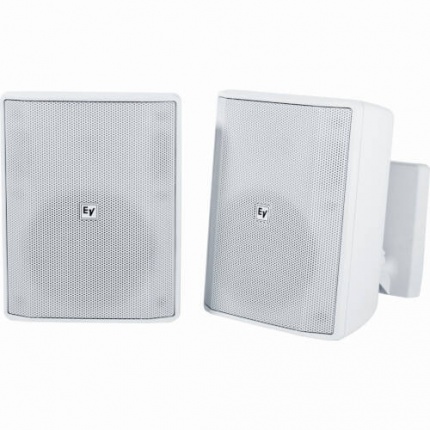

Electro-Voice EVID-S5.2 5" 2-Way 8 Ohms Commercial Loudspeaker

• Innovative mount system is included for quick, simple, and reliable installations
• Carefully engineered for outdoor environments (IP54), without compromising performance
• Long throw 5.25" (133 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 60 Hz
• 75 W power handling provides for 109 dB maximum SPL (115 dB peak)

The EVID-S5.2 from Electro-Voice is a high-performance, two-way, full-range, 5.25" (133 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2 is the perfect solution for a wide variety of surface mount applications.

The EVID-S5.2 includes the unique and innovative mount system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.

The EVID-S5.2 has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The full-range speaker is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.

All EVID-S models are available in black or white, and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.

Cloud Electronics 4 Zone Integrated Mixer Amplifier 46-120

The 46-120 4-Zone Integrated Mixer Amplifier provides individual source selection and volume control of up to six audio sources and two microphone inputs across four zones. Each zone is provided with 120W (4ohm) output or 120W (70/100V) output with optional internal transformer modules.

Source selection and volume level control for each zone can be made via the front panel or remotely with the connection of up to four optional RSL-6 / RSL-6A Remote Source / Volume Select controllers, one for each zone. Analogue paging functionality to individual or all zones is available with the optional PM-Series paging microphones.

An automatic stand-by function reduces power consumption when not in use and a remote power down function makes the 46/120 suitable for numerous applications in retail, leisure, education and hospitality. The CDI-46 Optional Digital Interface Module provides digital paging connection via RJ-45, Ethernet Interface (TCP/IP) and RS-232 connection.

The 46/120 Mixer Amplifier provides a feature-packed single-box solution for four zone venues of all sizes.

• 4-Zone Mixer Amplifier
• 4 x 120W Output per zone (4Ohm)
• Optional 120W 70/100W Internal Transformer
• 6 Stereo Line-Inputs
• 2 Microphone Inputs with priority option
• Music on Hold / Utility Output
• Remote Music Level and Source Selection via RSL-6 / RSL-6A
• Facility Input via RJ-45 for LM-2 on Zone 1
• Aux Out (Z1 + Z2)
• Auto Stand-By Mode Function
• Optional Digital Paging/RS-232/Ethernet (TCP/IP) Card - CDI-46
• Optional Paging Microphone with Chime Available
• Optional EQ Module for Bose, Amina & Active Audio Loudspeakers
• Remote Music Mute Function for Fire Alarm Interface

In the Package
8 x Electro-Voice EVID-S5.2 5" 2-Way 8 Ohms Commercial Loudspeaker (White)
1 x Cloud Electronics UK 46-120 Mixer-Amplifier
4 x Cloud Electronics UK RSL-6 Remote Source+Volume Control
1 x 3.5mm minijack to RCA cable for connection to laptop or music playback
1 x Professional speaker cable AWG16, grey jacket, tinned x 100m roll

Not included - Get in touch with us to arrange a site visit and quote
Cabling and conduit
Height access by M.O.M Approved Scaffold Contractor
Installation, testing & commissioning by W.A.H certified workmen by BizSafe Level 3 contractor.
