Sound system bundle with 4 EV EVID P6.2 + Cloud VMA120 Amplifier

Buy commercial sound system bundles online from Singapore's Premier AVL Superstore. Great for cafes, restaurants, offices, homes or anywhere background music is desired.

This bundle will be suitable for maximum Possible Coverage Area of 240sq/mt (2650sq/ft) @ 4mt (13' ) mounting height, indoors or protected outdoor spaces

We have curated a fuss-free bundle for you, combining the unique Electro-voice EVID P6.2 speakers which is great for spaces which have no false ceilings and VMA120 mixer-amplifier of Cloud Electronics UK heritage. We even supply the hookup diagram when you purchase the bundle from us. All you need is to have the cables run and hook up the speakers according to the simple diagram and you will be in business.

This minimal-fuss bundle is designed to playback music without meddling with many complicated controls.

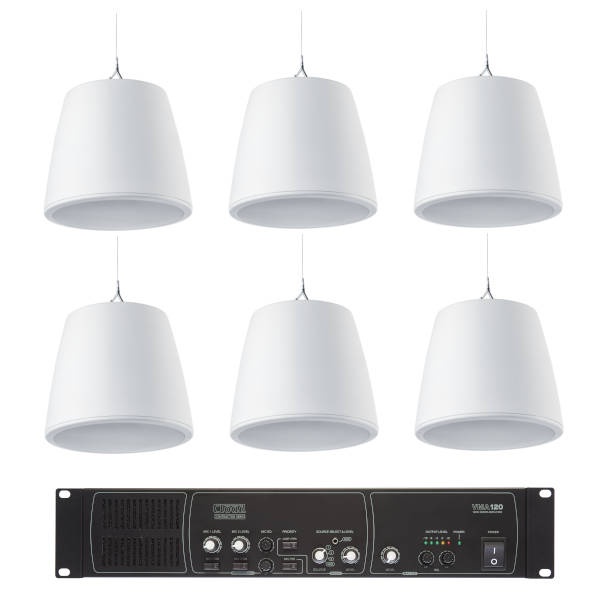

Package consists of

6 x Electro-Voice EVID-P6.2 - 6.5" Pendant Speaker (White)
1 x Cloud Electronics UK VMA120 Mixer-amplifier
1 x 3.5mm minijack to RCA cable for connection to laptop or music playback
1 x Professional speaker cable AWG16, grey jacket, tinned x 50m roll

Electro-Voice EVID-P6.2 - 6.5" Pendant Speaker (White)

The Electro-Voice EVID-P6.2 loudspeaker system is a complete two-way pendant loudspeaker. The package consists of a bezel assembly, magnetic grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a titanium dome tweeter. The EVID-P6.2 loudspeaker utilizes a 2nd order crossover network with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-P6.2 loudspeaker utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75W, 7.5W, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle, easily accessible by removing the magnetic grille.

The perforated grille is finished in semi-gloss black or white powder-coated enamel. The baffle, bezel, and rear-enclosure are constructed from UL 94V-0 rated ABS. The connections on the rear provide access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides passthrough to additional speakers.

The EVID line of speakers has been designed to work together as a complete system in a wide range of different constructions. The pendant and ceiling loudspeakers provide wide dispersion, high efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Cloud Electronics VMA120 Mixer Amplifier

The Cloud VMA120 is a cost-effective mixer-amplifiers for use in all types of commercial premises. It has been designed to be as simple to install and operate as possible but offers a useful range of features and configuration options. The units are mono power amplifiers combined with a simple mixer stage. The output may be used to drive either low-impedance loudspeakers directly (4 ohms minimum) or 25/70/100 V-line loudspeaker distribution systems.

• Power output: 120 W/channel
• Outputs suitable for either low-impedance (min. 4 ohm) or 25/70/100 V-line systems
• Four stereo unbalanced line inputs (3 x RCA jack pairs, 1 x 3.5 mm TRS jack on front panel)
• Rear panel line inputs have individual gain controls
• Two balanced mic inputs (1 x multipin connector, 1 x ¼” TRS jack), with individual preset gain controls
• Front panel controls for mic and music levels, line input selection, mic EQ, master level and EQ
• Mic input mute switches on front panel
• Line 1 priority, enabled by front panel switch
• Mic-over-music priority, enabled by front panel switch
• 15 V phantom power available at either mic input
• 100 Hz high-pass filter on each mic input
• 70 Hz high-pass filter in output stage, for use with 5/70/100 V-line systems
• Fixed limiter – prevents clipping
• Front panel LED bargraph – indicates output signal level
• Over-temperature and output DC protection
• 230 V or 115 V operation
• Forced-air cooling

In the Box
6 x Electro-Voice EVID-P6.2 - 6.5" Pendant Speaker (White)
Magnetic Grille (Installed)
Grille Removal Tool
Pendant Suspension Cable (15')
Coupler

Cloud Electronics VMA120 Mixer Amplifier

Not included - Get in touch with us to arrange a site visit and quote
Cabling and conduit
Height access by M.O.M Approved Scaffold Contractor
Installation, testing & commissioning by W.A.H certified workmen by BizSafe Level 3 contractor.
