iD14
You Can't Unhear Quality

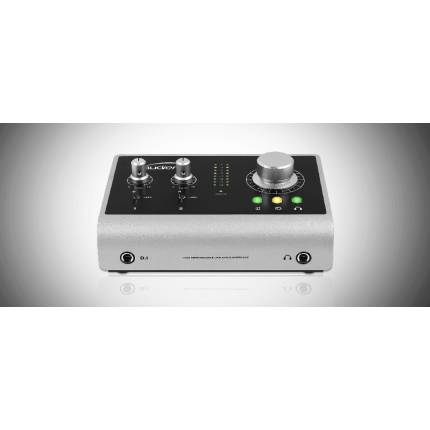

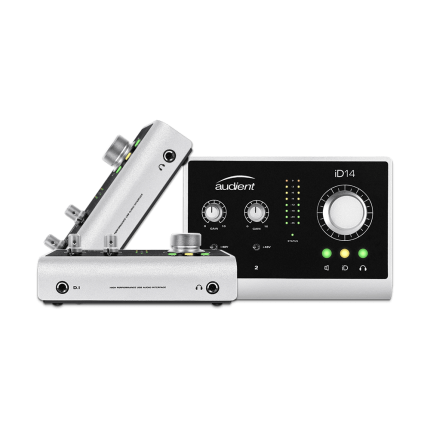

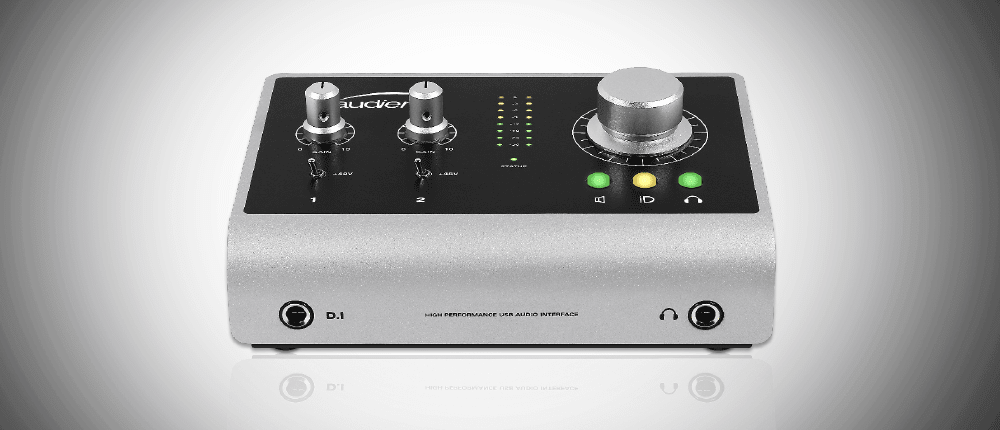

10in/4out Audio InterfaceProviding one renowned Audient console mic pre, class-leading converter technology, dual headphone outputs, console-style monitor control, JFET D.I and our virtual scroll wheel technology 'ScrollControl', iD14 is a professional but affordable solution for your home studio or for when you're on the road. Buy Audio Interfaces like this, online from Singapore's Premier AVL Superstore.
Audient Console Mic Pres
The professional sound you deserveAudient is the only company that uses the same Class-A mic pre design throughout our entire product range, whether you’re in the studio with an Audient console or on the road with iD14, you’re always guaranteed the same world-class Audient sound.
Pristine Converter Technology
Brilliance on the inside enables brilliance on the outsideiD14 provides you with high-performance AD-DA converters. Quality in the analogue stages of design comes from years of experience as analogue console designers, and when coupled with outstanding converter technology it enables you to hear audio as it’s supposed to sound. The importance of converters should never be underestimated. Experience audio the Audient way.
ScrollControl
The virtual scroll wheel
With a touch of a button iD14’s volume encoder becomes a virtual scroll wheel, enabling you to adjust DAW hosts, plug-in parameters and even scroll through your iTunes library - just like you’re adjusting a piece of hardware. Wherever your mouse pointer hovers, the iD knob can scroll to control! And when you're not using ScrollControl, pressing iD14’s volume encoder activates DIM, enabling you to quickly reduce the playback volume.Plug and Play
Simply plug in and be inspirediD14 has a harmonically rich JFET D.I input. Designed to replicate the input stage of a classic valve amplifier, you can plug your guitar, bass, keyboard or drum machine straight in and start recording instantly. Get professional-quality recordings from the start and take your track to the next level.
Dual Headphone Outputs
Write, collaborate and create
Featuring a dual headphone output, iD14 enables you to collaborate with your friends and other artists. Whether you’re recording a guitar and a vocal, or just listening to music together, iD4 lets you plug in two sets of headphones, making it the perfect tool for jamming with your friends and capturing creativity as it happens. The dual headphone output also has both a jack and mini-jack output, so no more need to carry around a pesky headphone adaptor!iOS Compatible
Record using your iOS deviceiD14 supports iOS compatibility which means recording on the go is easier than ever. Watch the video to see just how easy it is to set up iD14 with an iOS device. All you need is a Camera Adapter Kit and a Powered USB Hub and you're ready to start recording anywhere.
Built to Last
Quality deserves protection
iD14 has been designed to last, from its all-metal construction, hand-finished aluminium knobs and high-grade component selection, iD14 will stand up to countless late nights in the studio and days on the road.IN THE BOX
Audient iD14 High-Performance USB Audio Interface
USB Cable
Limited 1-Year WarrantyNot in the Box
XLR Microphone Cable (Not Included)
Microphone Stand (Not Included)MICROPHONE PREAMPLIFIER:
(measurement includes ADC signal path)MIC GAIN:0 to 66 dB (inc. +10 dB software boost)
LINE GAIN:-10 to 56 dB (-10dB hardwired line pad)
PHANTOM POWER:48V ±4V @ 10mA/Channel (12VDC only)*
MIC EIN:-127.0 dBu
CMRR:>80 dB @ 1kHz
MAXIMUM INPUT LEVEL:+12 dBu (0 dBFS digital Maximum)
INPUT IMPEDANCE (Mic):2.8 kΩ Balanced
INPUT IMPEDANCE (Line):>8kΩ Balanced
FREQUENCY RESPONSE:±0.1 dB 20Hz to 22kHz @ min. gain±1.0 dB 20Hz to 22kHz @ max. gain
CROSSTALK:-90 dBuTHD+N @ 0dBu (1kHz):0.0025% (-92 dBu)
SNR:96 dB un-weighted, 99 dB A-weighted
XLR Combi FemalePin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4" TRS JackTip (Hot), Ring (Cold) & Sleeve (Shield)
D.I (Channel 1):D.I GAIN:0 to 66 dB (inc. +10 dB software boost)
MAXIMUM INPUT LEVEL:+9 dBu (0.6% THD typical)
INPUT IMPEDANCE:>500kΩ Unbalanced
FREQUENCY RESPONSE:±0.1 dB 20Hz to 22kHzTHD+N @ 0dBu (1kHz):0.04% all musical 2nd and 3rd harmonics
SNR:95 dB un-weighted, 98 dB A-weighted1/4” JACK:TIP (Hot) & SLEEVE (Shield)
ANALOGUE TO DIGITAL CONVERTER (ADC 1 & 2):(measured sans microphone preamplifier under AES-17)
MAXIMUM INPUT LEVEL:+12 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL:+12 dBu = 0 dBFS
FREQUENCY RESPONSE:±0.1 dB 10Hz to Fs/2 (flat to nyquist)
CROSSTALK:-100 dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):0.002% (-94 dB)THD+N @ -6dBFS (1kHz):0.0015% (-97 dB)
DYNAMIC RANGE:113 dB un-weighted116 dB A-weighted
DIGITAL TO ANALOGUE CONVERTER (DAC 1&2):(measured under AES-17 at line outputs 1&2)
MAXIMUM OUTPUT LEVEL:+12 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL:+12 dBu = 0 dBFSOUTPUT IMPEDANCE100Ω Balanced
FREQUENCY RESPONSE:±0.1 dB 10Hz to Fs/2 (flat to nyquist)
CROSSTALK:-105 dBu @ 1kHz & 10kHzTHD+N @ -1dBFS (1kHz):0.003% (-90.5 dB)
DYNAMIC RANGE:114 dB un-weighted117 dB A-weighted
1/4" TRS JackTip (Hot), Ring (Cold) & Sleeve (Shield)
HEADPHONE OUTPUT (DAC 3&4):(measured under AES-17 at phones output)
MAXIMUM OUTPUT LEVEL:+12 dBu
DIGITAL REFERENCE LEVEL:+12 dBu = 0 dBFS
VOLTAGE GAIN:+6 dB (optimised for loudness)
OUTPUT IMPEDANCE:30 Ω Balanced
FREQUENCY RESPONSE:±1.0 dB 10Hz to Fs/2 (load dependant)
CROSSTALK:-100 dBu @ 1kHz & 10kHzTHD+N @ -1dBFS (1kHz):0.002% (-94 dB)
DYNAMIC RANGE:108 dB un-weighted111 dB A-weighted
MAX LEVEL INTO 30ohms:+4 dBu, 0.005% THD+N, Power: 101mW
MAX LEVEL INTO 60ohms:+5 dBu, 0.004% THD+N, Power: 64mW
MAX LEVEL INTO 600ohms:+13 dBu, 0.0025% THD+N, Power: 39mW
1/4” JACK:TIP (Left), RING (Right) & SLEEVE (Shield)
DIGITAL INPUT:8-CHANNEL ADAT:44.1kHz to 48kHz
4-CHANNEL ADAT:88.2kHz to 96kHz SMUX
STEREO S/PDIF / TOSLINK44.1kHz to 96kHz (Stereo)
USB 2.0 HIGH SPEED:BUS POWER:500mA @5V System Limit425mA @5V Maximum (No 48V)(Phantom power only available on 12VDC)
*No. of INPUT CHANNELS:10 (2 Analogue, 8 Digital)No. of OUTPUT CHANNELS:4 (4 Analogue)
DSP MIXER LATENCY:ROUND TRIP (in-to-out)44.1kHz 1.660ms48.0kHz 1.531ms88.2kHz 0.844ms96.0kHz 0.771ms
DAW Roundtrip Software Monitoring Latency @ 32 Sample Buffer (in to out):44.1 kHz6.52ms96.0 kHz4.65ms
POWER SUPPLY: 12VDC Centre Positive - 1.25A (required for full 48V Phantom Power)*
* iD14 requires a lot of power for class leading converters and class-A microphone preamplfiers. We could not beat the laws of physics so an external supply is required for 48V phantom power. Your microphones will thank you when they get enough voltage!
