Get a free XLR mic cable when you purchase this Sennheiser XSW 1-835 from AVLFX. Remember to select the add-on when adding to cart!
Buy IMDA compliant wireless microphones online from Singapore's Premier AVL Superstore.

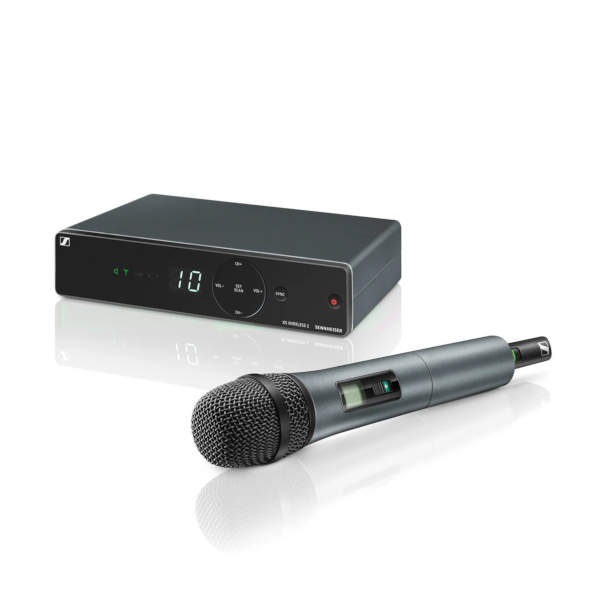

This analogue UHF single-channel wireless system can be used in several applications for singers, presenters, DJs, churches, and schools. Designed for ease of useRaise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to get started.
The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.COMPLIES WITH IMDA STANDARDS | DB106404 (Loud Technologies Asia Pte Ltd)Only wireless systems bought through AVLFX will bear the IMDA type approval dealer label.
In the Box

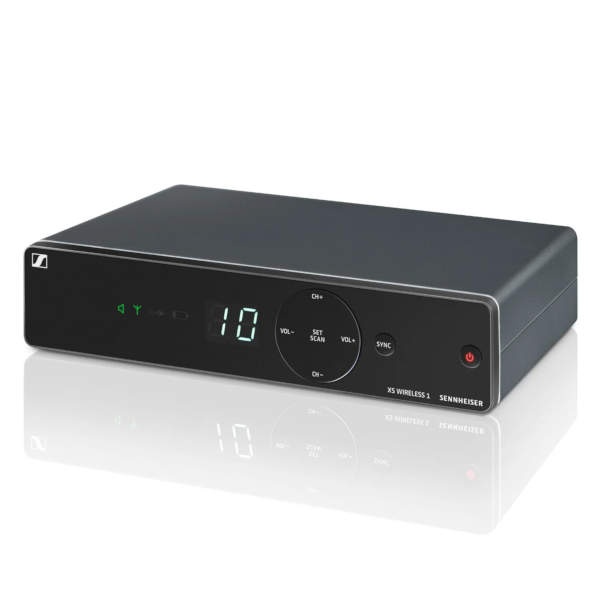

1 receiver EM-XSW 1

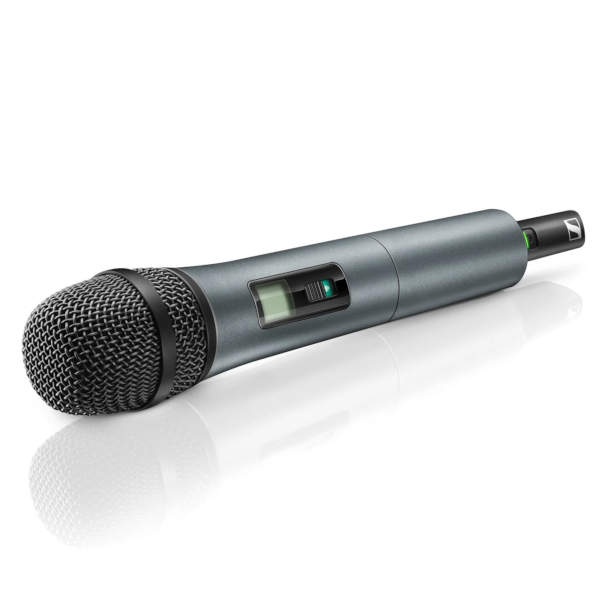

1 handheld transmitter SKM 835-XSW
1 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteriesWe offer 3 bands of IMDA-Compliant frequencies, please let us know if you have a preference of frequency band
(A: 548 to 572 MHz), (GB: 606-630 MHz) & (B: 614-638 MHz)
As Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
Dimensions
approx. 200 x 42 x 127 mm
THD, total harmonic distortion
≤ 0.9%
Pick-up pattern
cardioid
Signal-to-noise ratio
≥ 103 dBA
RF output power
10 mW
Switching bandwidth
up to 24 MHz
Operating time
approx. 10 hrs
Modulation
wideband FM
Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing
rugged ABS housing
Dynamic range
dynamic
Frequency
8 frequency banks, each with up to 10 factory-preset channels
Frequency range
A: 548-572 MHz
GB: 606-630 MHz
B: 614-638 MHz
Sensitivity
3 μV at 52 dB(A)rms S/N
Squelch
adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity
1.5 mV / Pa
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range
45 dB, adjustable in 5-dB steps
Line / Mic level
20 dB, switchable
Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle
double superheterodyne
Diversity principle
Antenna switching diversity via internal antennas
Receivers
Weight
approx. 340g
Power supply
Receiver: 12 V DC nom. / 300 mA
AF frequency response
Receiver: 50 to 16,000 Hz (–3 dB)
Microphone
Weight
approx. 245g
Power supply
Microphone: 2 AA size batteries, 1.5 V
AF frequency response
SKM 835: 80-16,000 Hz
