The first line in the detection of infection is an elevated temperature. We present the latest accurate yet affordable thermal imaging tool for fever detection.
Reduce personnel risk and accelerate the speed of body temperature screening. Through the combination of surface temperature measurement and real-time thermal images, individuals with abnormal body temperature can quickly be singled out and dealt with quickly
Durable design, easy to use and easy to install. To maintain a smooth flow of people passage, the device enables rapid detection and screening to be performed with a capacity of 60 persons screened a minute

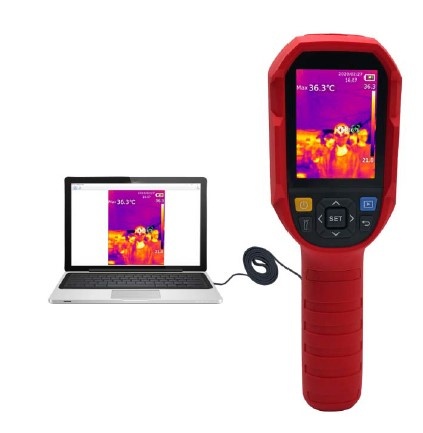

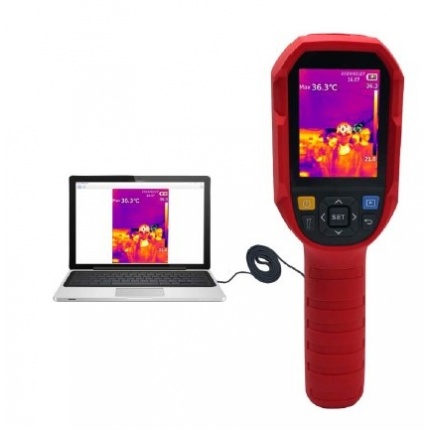

The device supports real-time image transmission to the connected windows computer
Package includes:
- JT-66 Handheld Thermal imaging Mass Fever Screening
- Basic tripod mount
- USB-C to USB-A cable
- 16Gb SD Card
Computer NOT included
-
- Sensor: Uncooled focal plane
- High and low temperature alarm: Can be set for high and low-temperature warning
- Temperature measurement range 30°C 〜45°C
- Resolution 0. 1°C
- Accuracy ±0. 3°C （Best working distance: 1M）
- Temperature measurement response time W350ms
- Thermal imaging pixel 19200 (160*120)
- Pixel size 12 |i m
- Colour: Iron Red, Rainbow, White Hot, Black Hot, Red Hot, Lava, High Contrast Rainbow
- Infrared spectral bandwidth 8〜14卩m
- Thermal imaging sensitivity 50mK
- Frame rate 9Hz
- Temperature display: ZF Center point temperature measurement and high-temperature tracking (default high-temperature tracking)
- Image format BMP
- Picture mode: Thermal imaging, digital camera (visible light), fusion
- Temperature measurement point: In addition to the centre point, 3 temperature measurement points can be added
- Daylight visible: Yes
- Visible light resolution 640*480
- PC Analysis Software（PC）included
- Real-time image transmission Yes (PC software real-time image projection screen)
- Data communication Type-C USB
- Display type 2.8" TFT LCD
- Display resolution 320*240
- Battery Li-ion 3. 7V/5000mAh 26650 Single section
- Image storage Micro SD card
- Working temperature 0°C〜35°C
