Magewell Pro Convert for NDI to AIO

S$ 659.00
(S$ 659.00 excl GST)

Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable Want this delivered today? Find out more

Add to cart Add to wishlist

What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Standalone box for converting NDI into HD HDMI or 3G SDI.

Key Features:

Converts NDI stream to HD HDMI and/or 3G SDI signal
Support outputting video streams at the optimal resolution for NDI® source automatically

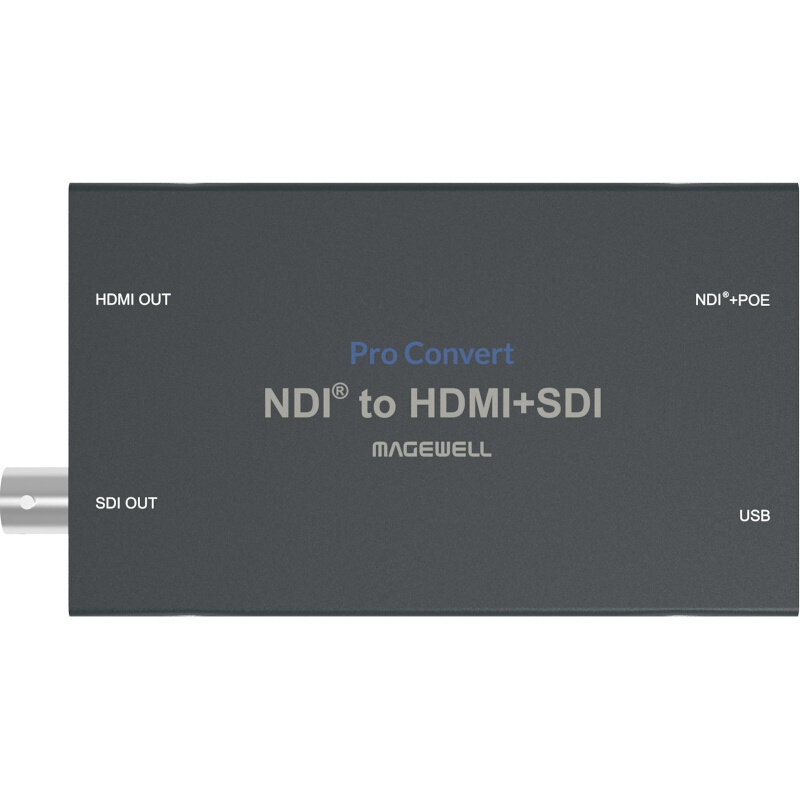

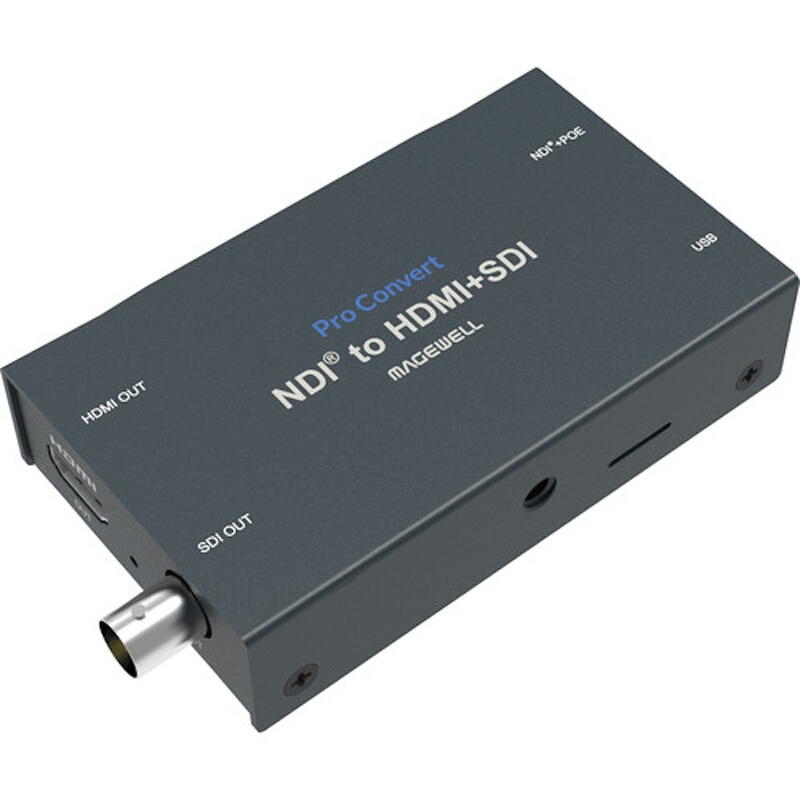

The Pro Convert for NDI to AIO from Magewell is a Standalone NDI Decoder, that converts NDI stream to HD HDMI and/or 3G SDI signal.
In the box
Magewell Pro Convert for NDI to AIO
Power Adapter
L-Bracket
USB Cable
Limited 1-Year Warranty

Specifications

Supported Web Browser
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above

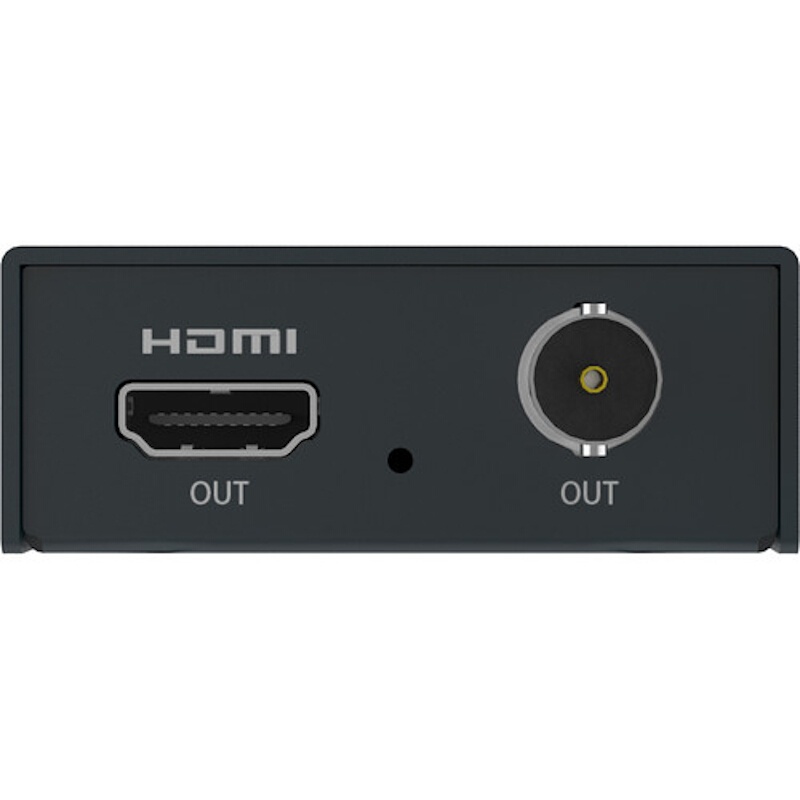

Output Interfaces
3G SDI
HDMI 1.4

Storage Interface
SD Card (functions to be developed)

Screw Mounting Hole
¼–20 mounting hole

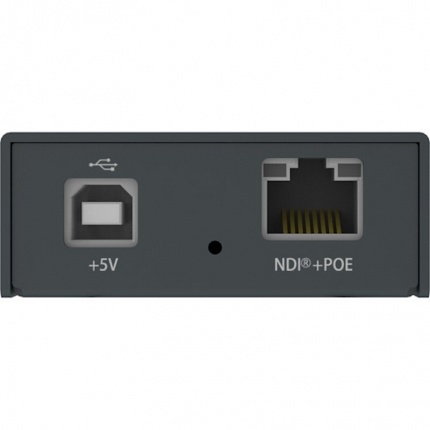

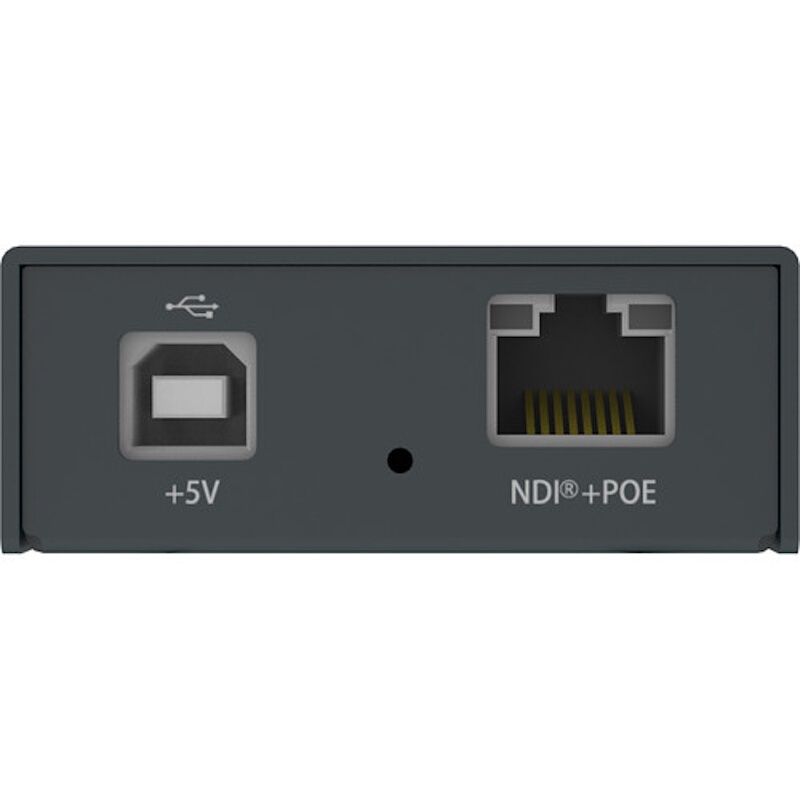

Network Interface
10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM

Set Buttons
Preset
Long press：set the output video format to auto
Short press：rotate the preset output resolution list
Source
Short press：rotate the NDI® source detected on the LAN

HDMI Output Features
Support RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 color sampling
Support up to 48KHz 16bits 8-channel audio streams
Support outputting video streams at the optimal resolution for NDI® source automatically
Support the following output format
SD：480i59.94/576i50/480p59.94/576p50
HD：720p24/25/29.97/30/50/59.94/60; 1080p24/25/29.97/30; 1080i50/59.94/60
FHD：1080p50/59.94/60

SDI Output Features
Support SD/HD/FHD standards
Support YUV 4:2:2 color sampling
Support up to 48KHz 16bits 8-channel audio streams
Support outputting video streams at the optimal resolution for NDI® source automatically
Support the following output format
SD：480i59.94/576i50/480p59.94/576p50
HD：720p24/25/29.97/30/50/59.94/60; 1080p24/25/29.97/30; 1080i50/59.94/60
FHD：1080p50/59.94/60

NDI® Source Name
Support setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support setting board-index, from 0 to F, through the on-board rotary switch

Firmware Upgrade
Support manual update using Web UI

LED Indicator
Status LEDs indicate the working state of the device:
Power supply: on/off
Output signal: Output connected and signal detected/undetected

Form Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
L-bracket

Power Consumption
5V max current: TBD
Max power consumption: TBD

Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
