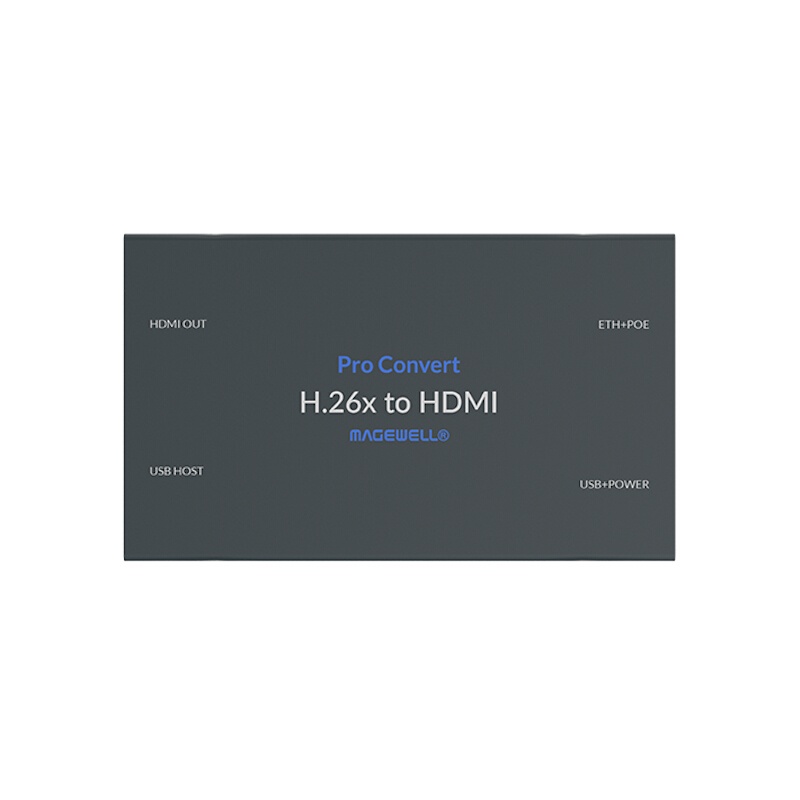

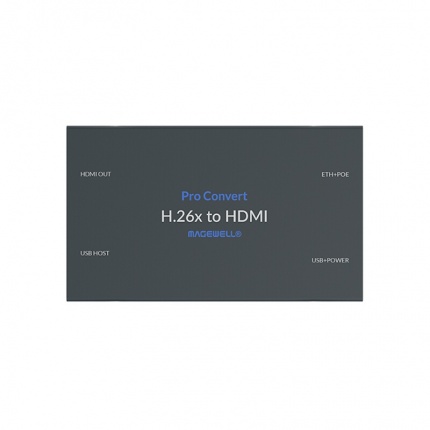

The Pro Convert H.26x to HDMI Decoder from Magewell is a Standalone IP Stream Decoder, that convert multi-protocol IP-based stream into HD HDMI signal.
IN THE BOX
Magewell Pro Convert H.26x to HDMI Decoder
Power Adapter
L-Bracket
USB Cable
Limited 1-Year WarrantySupported Web Browser (tested)
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above

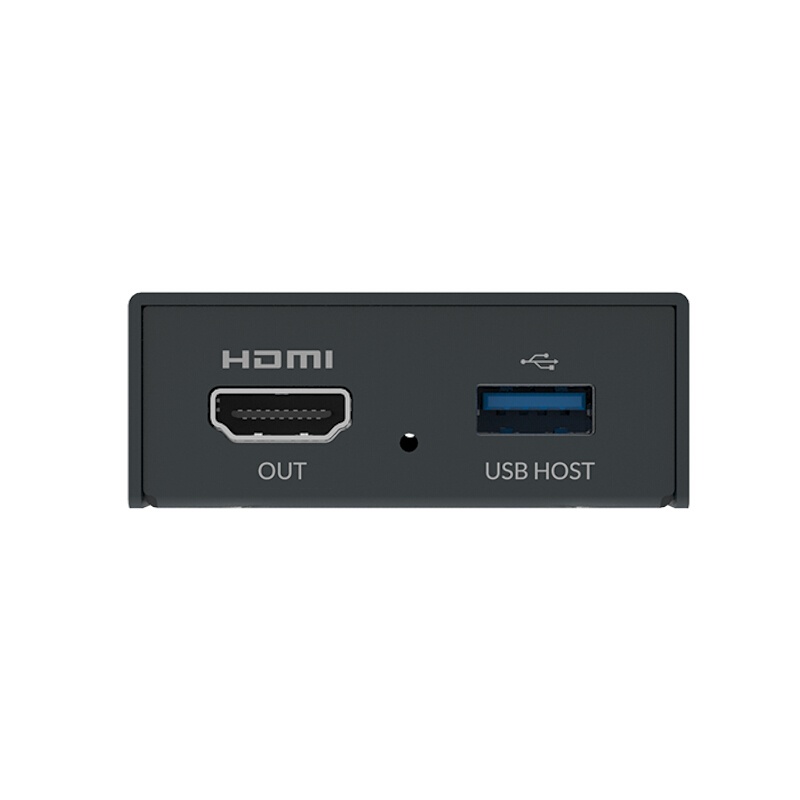

Output Interfaces
HDMI
DVI-D 1.0
HDMI 1.4
HDMI 2.0
Storage Interface
SD Card (functions to be developed)
Screw Mounting Hole
¼–20 mounting hole

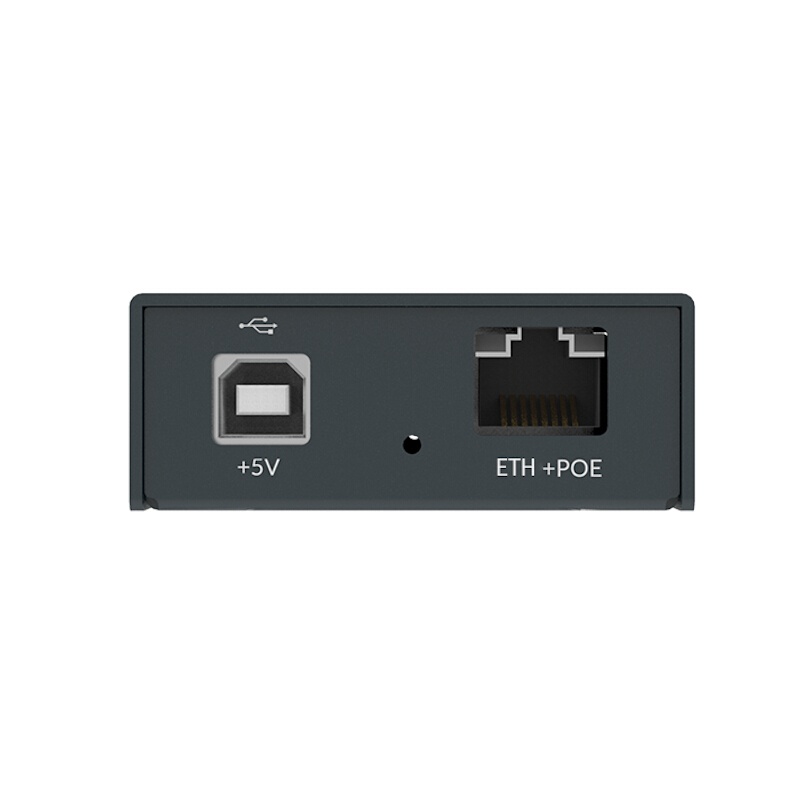

Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
USB3.0 Type A
Support connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
Control Buttons
MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection
HDMI Output Features
Support up to 4096x2160 60fps HDMI output
Support 96KHz 16bits 8-channel audio streams
Support delivering videos at the preferred video format according to the EDID of the connected monitor
Stream Decoding Features
Support decoding videos in H.264 and H.265 format
Support decoding streams of RTSP, HTTP, RTMP Pull/Push and TS over UDP/SRT/RTP
Support up to 2560x1440 60fps signal decoding
Support modifying configurations using the Web UI or the Options menu
Setting Video OSD composition, including
Source name & resolution
Audio meter
Audio meter scale
Center cross
Safe area
Video scaling, frame rate and aspect ratio conversion
Video color format conversion
Auto or manual selection of input color format
Support YUV BT.601, YUV BT.709 color formats
Video vertical and mirror flip
Setting audio gain, sample rate and channels
Device Name
Support setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support setting board-index, from 0 to F, through the on-board rotary switch
Firmware Upgrade
Support manual update using Web UI
LED Indicator
Power LED status indicator
On: power connected
Off: power unconnected
Decode LED status indicator
On: decoding in progress
Blinks: decoding error
Off: source unselected

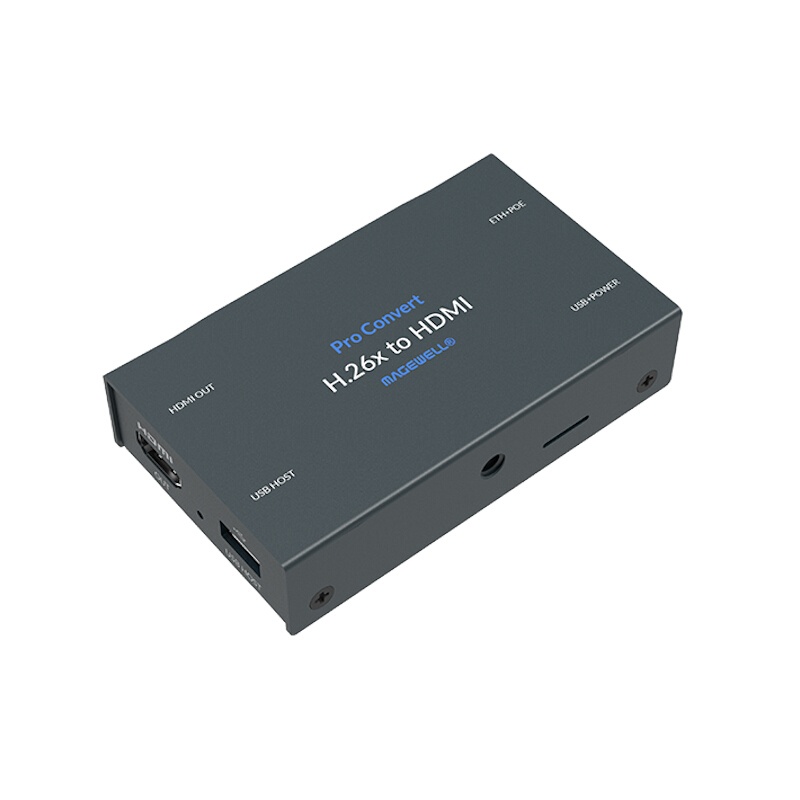

Form Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
L-bracket
Power Consumption
5V max current: ~1.1A
Max power consumption: ~5W
Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
