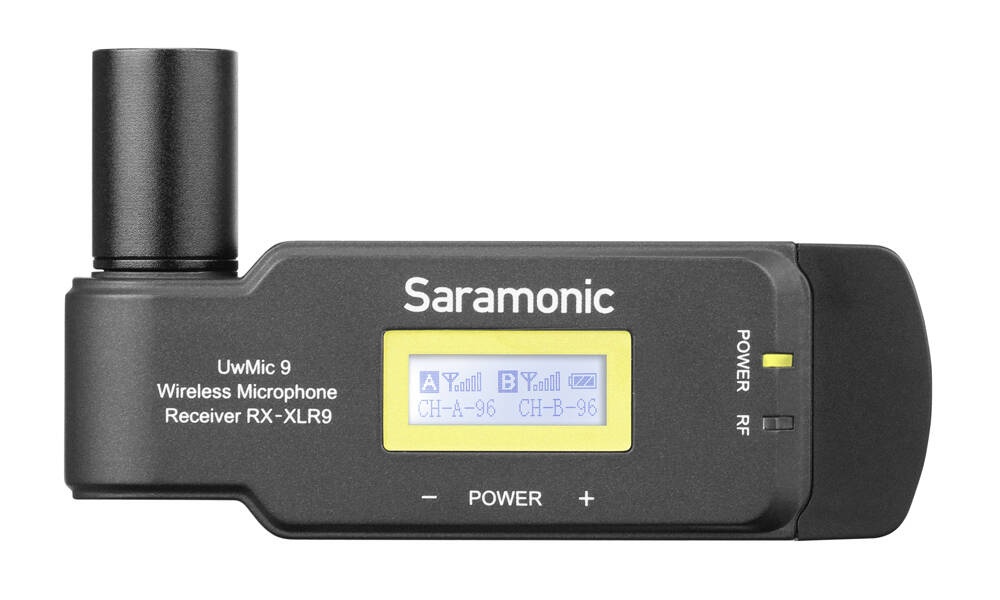

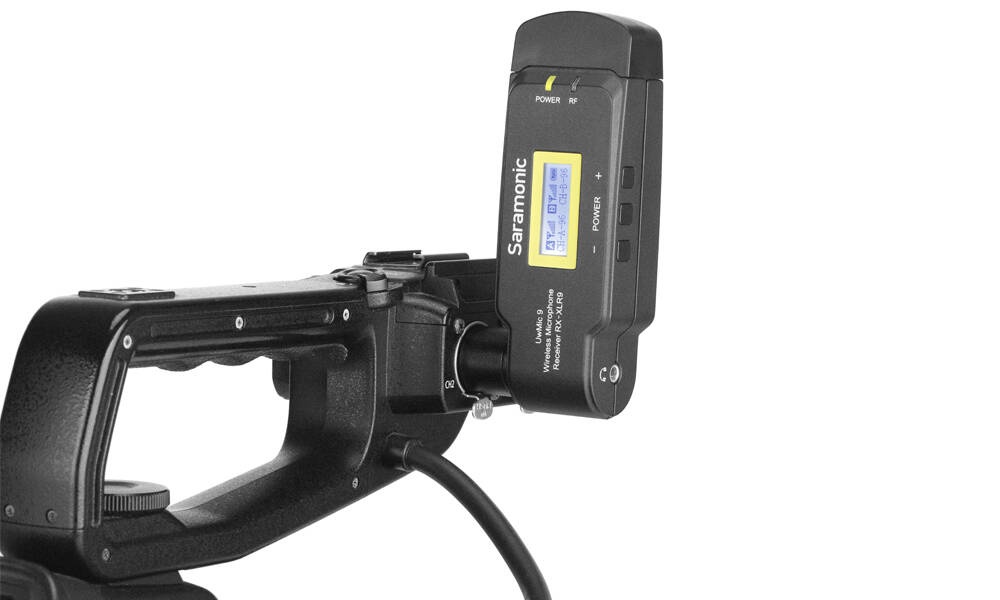

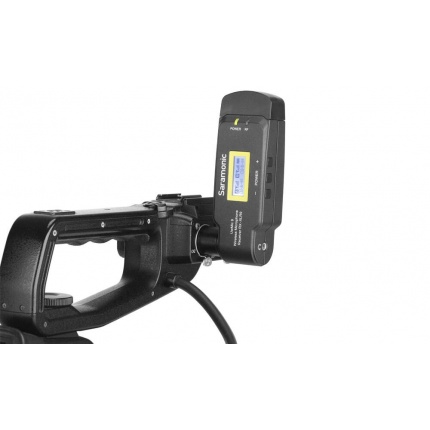

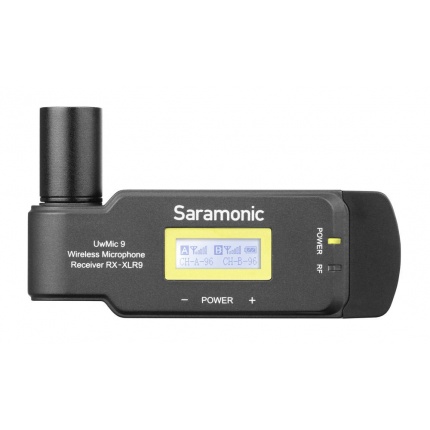

The Saramonic UwMic9 RX-XLR9 is a compact XLR plug-on wireless receiver. It plugs directly into a video camera or recorder’s XLR microphone input without getting in the way of other accessories. The XLR connector rotates both clockwise and counterclockwise.

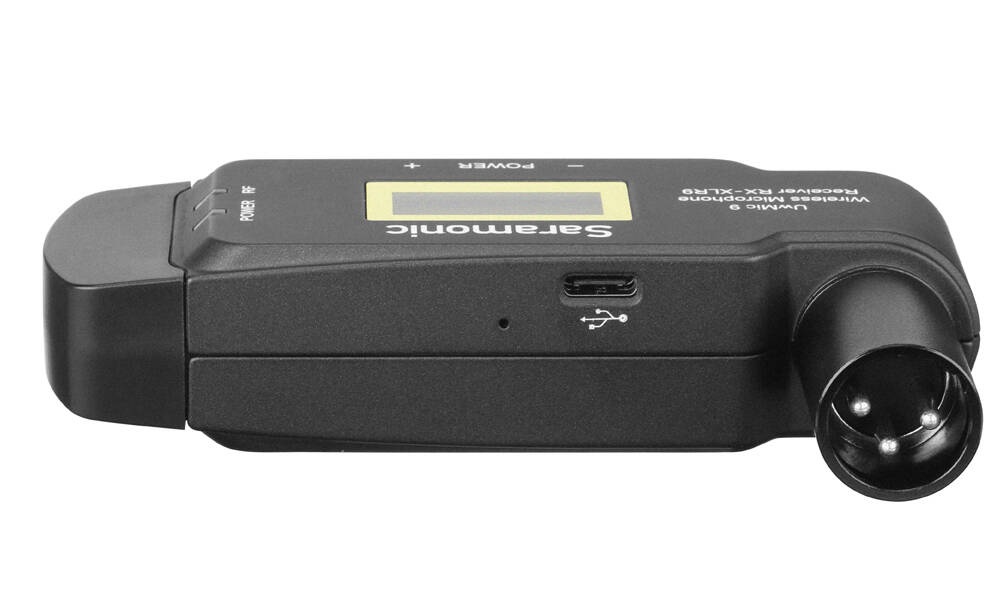

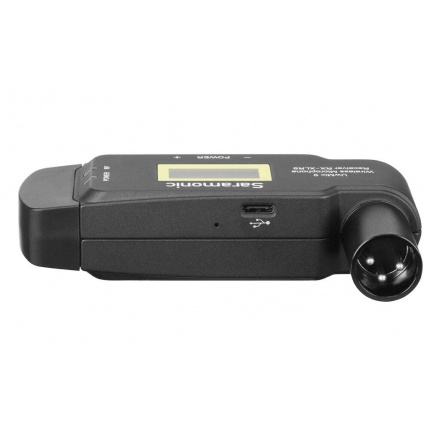

The receiver can be powered by two AA batteries or DC power via the USB Type-C jack. It features a wide switching RF bandwidth, an easy-to-read LCD screen,a 3.5mm headphone jack and infrared synchronization between transmitter and receiver.
Approved for use in Singapore, Complies with IMDA standards (Loud Technologies Asia Pte. Ltd. Registration DB106404)
In the box:
- Plug-on receiver: RX-XLR9
- Shoe mount adapter
- XLR to 3.5mm audio output cable
- Typc-C charging cable
- Warranty card
- User manual
Channel number 96
Channel group: A and B
Oscillator type: PLL synthesizer
Carrier frequencies 514MHz – 596MHz
Reference deviation ±5 kHz (–60 dBV, 1 kHz input)
Signal to noise ratio 70 dcB or more
Spur suppression -60 dB
Voice delay 12 ms
Antenna 1/4λ wire antenna
Output XLR-3-11C type (male)
Reference audio input level –60 dBV (MIC input, 0 dB attenuation)
Distortion 0.5% or less
Weight Approx. 96g (Excluding batteries)
Battery Two AA batteries
DC input connector Type-C jack
Dimensions 112 × 63 × 26 mm
Operating temperature 0°C to 50°C
Storage temperature –20°C to +55°C
