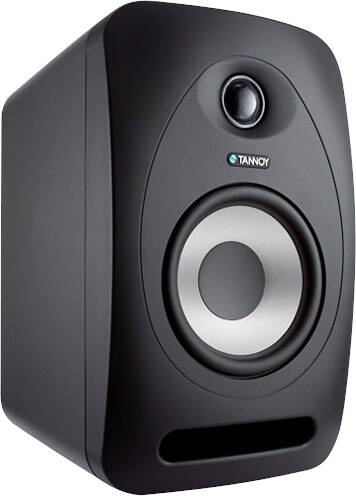

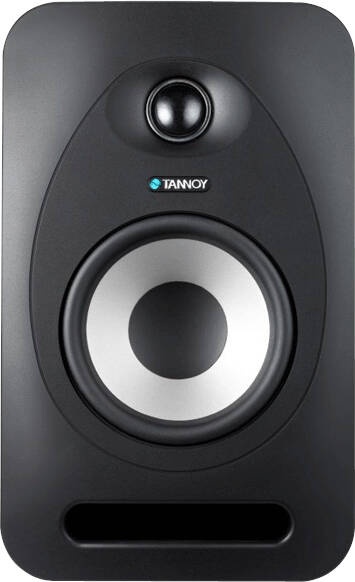

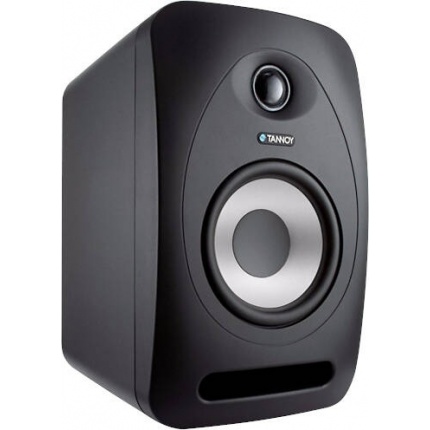

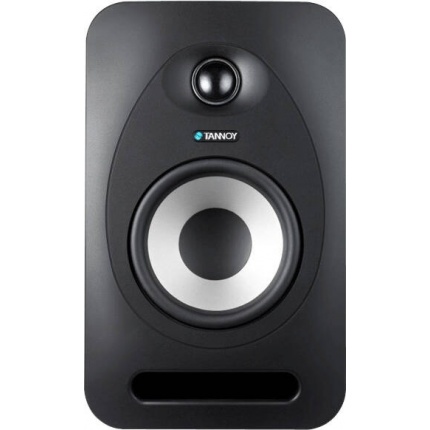

Tannoy REVEAL 502 5" Bi-Amped Studio Reference Monitor (Single)

tanreveal502-4_1199604535
Percent
tanreveal502-4_1199604535tanreveal502-5_768420205tanreveal502-6_1715268918
S$ 274.86 per unit for buying at least 2
Out of stock

Price listed is for 1 (one) unit only. Must buy in pairs

Key Features:
  • Reference monitor ideal for desktop recording or monitoring in personal studios
  • 105 Watt custom bi-amped design delivers premium tonal clarity from a compact enclosure
  • 5" custom high-efficiency low frequency driver for extended bass response
  • 1" soft-dome 'Poke-Resistant' tweeter for detailed high-frequency reproduction
  • Accurately tuned front-firing bass port allows near-wall placement and ensures optimal low frequency performance
  • Ultra-wide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix
  • Rubberized foam base provides acoustic isolation
  • Adjustable equalization to match your listening environment

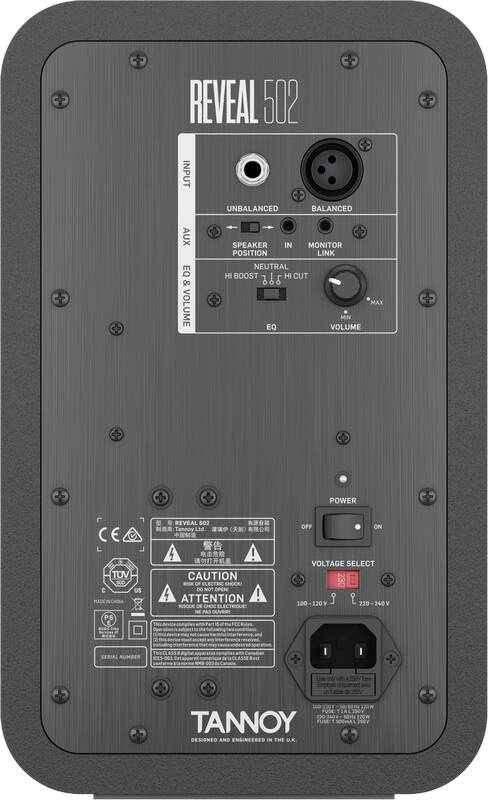

  • Balanced XLR input and unbalanced 1/4" TS input for maximum flexibility
  • 1/8" stereo input with monitor link facility for connection of mobile devices (cable included)
  • Tannoy - 90 years of British audio innovation
  • 1-Year Warranty Program*
  • Designed and engineered in the U.K.
Show moreShow less
  • REVEAL 502
    Custom tweaked by TANNOY’s in-house speaker guru, Dr. Paul Mills, the active cross-over filters of REVEAL 502 have absolutely impeccable timing.

    This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix – as well as invite people to sit in with you during mixing sessions.

    If you’re anything like us, you’re not only working on mixes but also listening to your favorite music! REVEAL 502 gives you the ultimate pathway for both.

    With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setup – no need for external interfaces

  • General
    Frequency Response 49 Hz -43 kHz
    Max SPL 108 dB


    Membrane Sizes
    LF/Mid Range 5" (130 mm)
    HF 1" Soft Dome (25 mm)

    Bi-amp Output Power, RMS
    Power Output 75 Watts
    LF/Mid Range 50 Watts
    HF 25 Watts
    THD 0.7 %


    Input Types and Impedances
    Balanced XLR, 20 kOhm
    Unbalanced ¼" Jack, 10 kOhm
    AUX Link Mini Jack, 10 kOhm
    AUX Link Output Mini Jack


    EQ Options
    HF EQ Settings -1.5 dB HF Cut / Neutral / +1.5 dB HF Boost
    Crossover Frequency 2.3 kHz
    Low-Frequency Alignment Optimized Front Port


    Cabinet Dimensions
    HxWxD, inches 11.8 x 7.2 x 9.4
    HxWxD, mm 300 x 184 x 238
