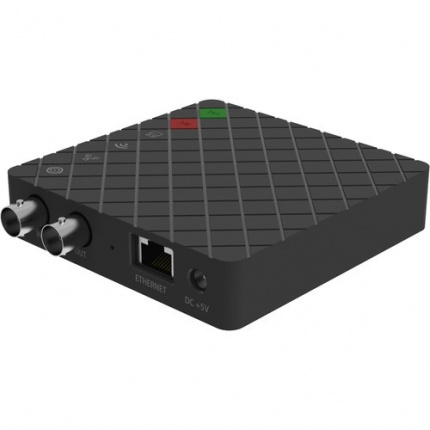

Ultra Stream encoder makes live streaming remarkably simple even for nonprofessional users, enabling them to record or stream high-quality video with one click using on-device buttons or an intuitive smartphone app. Designed for users who want to stream but may have minimal technical knowledge, the encoder is ideal for everyone from church volunteers and educators to corporate communicators and live event organizers. Users can stream to popular services including YouTube, Facebook Live or Twitch or to a custom-specified server.
Streams can be output to a third-party service and custom server simultaneously, while real-time video preview in the app allows easy monitoring. In addition to outputting live streams, Ultra Stream can record video as files to a directly-connected USB drive, embedded storage or the associated smartphone.
IN THE BOX
Magewell Ultra Stream SDI
Power Adapter
Limited 1-Year Warranty
Supported Mobile Clients
Android
Android 5.0 and above
iOS
iOS 9.0 and above
iPhone
iPhone 5s
iPhone SE
iPhone 6 / iPhone 6s / iPhone 6 Plus / iPhone 6s Plus
iPhone 7 / iPhone 7 Plus
iPhone 8 / iPhone 8 Plus
iPhone X
iPod Touch
iPod Touch 5
iPod Touch 6Supported Web Browser
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above

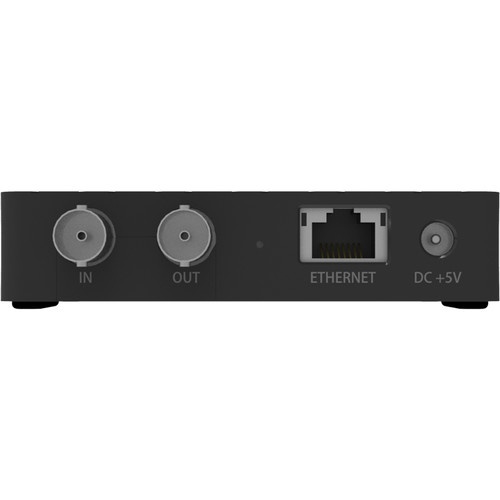

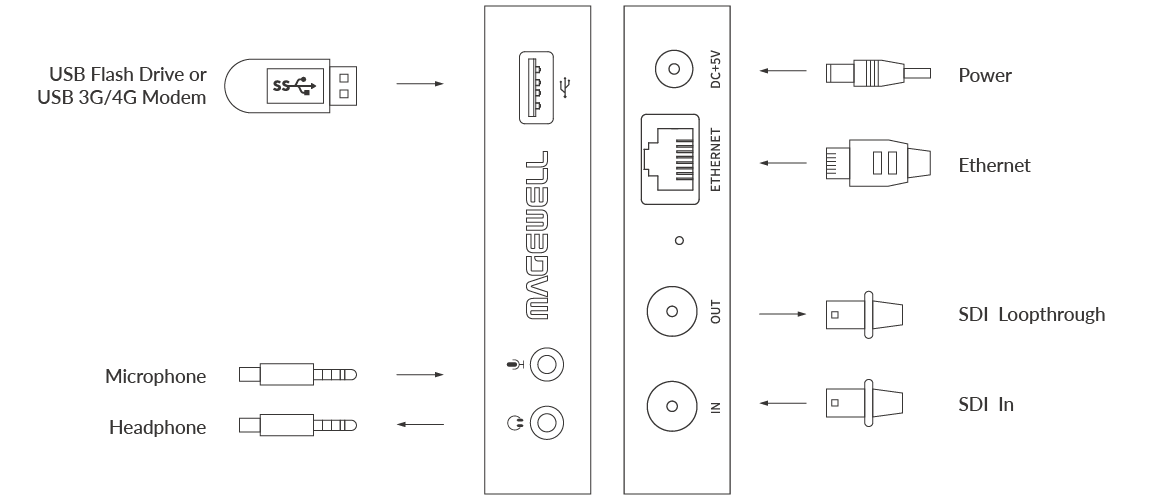

Opera 55.0.2994.44 and aboveInput Interfaces
BNC
SD/HD/3G SDI

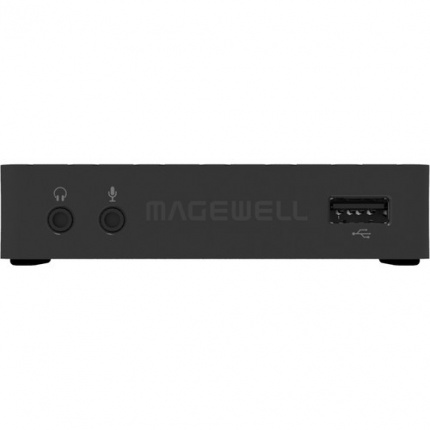

3.5mm audio jack
Microphone interfaceOutput Interfaces
BNC
SD/HD/3G SDI
USB
USB 2.0
3.5mm audio jack
Headphone interfaceNetwork Interfaces
Wired Ethernet
10/100/1000Mbps Ethernet
Wi-Fi
IEEE 802.11 a/b/g/n/ac
USB
USB 3G/4G Modem (not included)Bluetooth
Bluetooth 4.0 BLESDI Specific Features
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
Support for 2K (2048x1080) input and loopthrough signals
Support for 8/10/12-bit color depths
Support for 60p, 60i, 50p, 50i, 30p, 25p signal formats
Limited support for the first stream of 3Gb-DS
Limited support for the first link of dual link interfaces
YCbCr 4:2:2 10-bit 1080p 50/59.94/60: output as 1080i 50/59.94/60
YCbCr 4:4:4 10-bit: output as 4:2:2
RGB 4:4:4: R/B sub-sampledAnalog Audio Features
Extracting stereo embedded HDMI audio for recording, streaming and output via 3.5mm stereo mini-jack Line Out
Recording and streaming analog audio from the 3.5 mm microphone interfaceEncoding Features
Support for H.264/HEVC (video) and AAC High Quality (audio) encoding
Support for video bitrates of up to 8Mbps for the Main Stream and 1Mbps for the Sub Stream
Support for encoding at input signal resolutions up to 1920x1080, including these lower resolutions: 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270 resolutions
Support for 60fps, 59.94 fps, 50fps, 30fps, 29.97 fps, 25fps, 24fps, 15fps frame ratesStreaming Features
Support for live streaming using RTMP protocol to software including Flash Media Server, Wowza, Red5 and Nginx server
Support for RTSP protocol
Streaming to Facebook, Twitch and YouTube platforms
Support for streaming to multiple destinations, up to 2 servers simultaneously
Support for specifying network priority when multiple networks are connected
Recording Features (to device & USB Flash Drive)
Support for recording to USB Flash Drive and internal storage (32GB)
Support for loop recording
Support for auto-recording when the input signal is stable
Support for recording video clips in different durations
Support for recording as MP4 or MOV files
USB Flash Drive file system formats: FAT32, NTFS, exFAT, VFAT
Support for downloading video clips which are stored in device storage using the WebUIRecording Features (to Mobile Device)
Support for recording at up to 1280x720, 30fps
Support for recording as MP4 files
Taking still image snapshots during recording
Saving recording files and screenshots to system album
Previewing the main and sub streams
Timer recording: 15s, 30s, 1min, 2min, 5minRemote Control Features in App
Support for connecting the device via Wi Fi, wired network, and device hotspot (i.e. AP mode)
Support for connecting the smart phone Wi-Fi to the device hotspot (i.e. AP mode)
Support for remotely controlling the device using WebUI and app
Support for remotely checking the device status
Support for setting volume, network, recording and live streaming parameters
Support for checking and safely updating device firmware (or resetting to the factory firmware version)
Support for simultaneous main stream and sub stream encoding with customizable parameters
In-app online help
Support for multiple users logging-in simultaneously

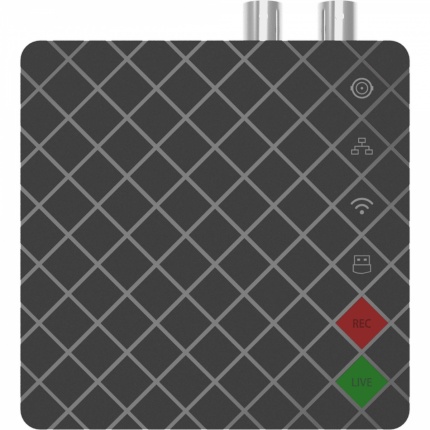

Support for device configuration using the WebUILED Indicator
Indicates the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
Indicates the working state of the device: startup, recording, streaming, updatingForm Factor
94.20mm x 94.20mm x 22.30mmAccessories
AC adapterPower Supply and Consumption
Power port
5V/2A
2.1mm x 5.5mm socket, centre pin positive
Max power consumption: ~6.0 WWorking Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
