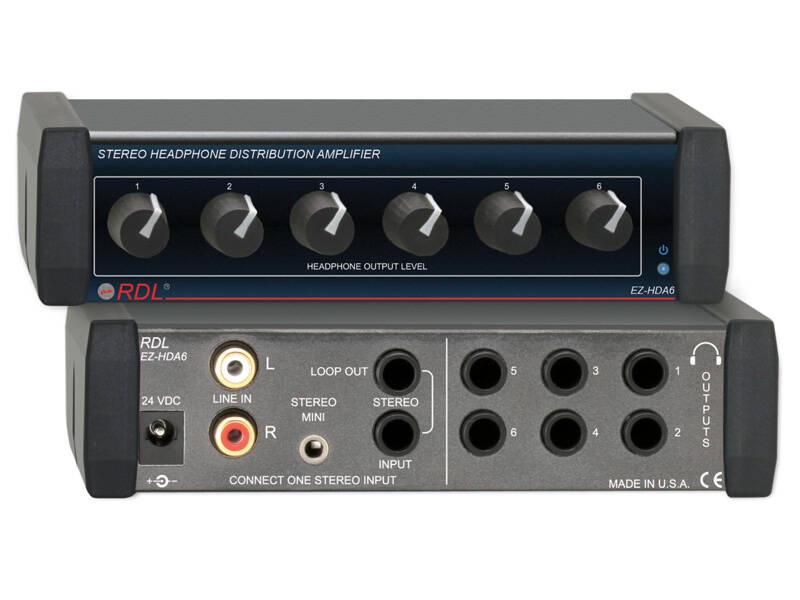

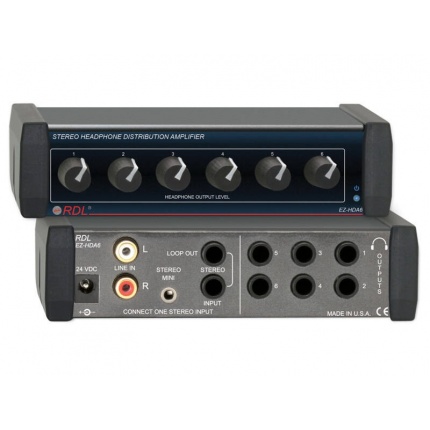

The EZ-HDA6X contains six stereo headphone amplifiers with individual front-panel volume controls. Headphone outputs are provided on rear-panel 1/4" jacks. One input signal feeds all the amplifiers. Stereo RCA jacks, a MINI jack and a dual 1/4" jack (for "loop out" connection) are provided for connecting the input source. The EZ-HDA6 is used in music stores, houses of worship, studios, museums, home component systems and commercial sound systems.
Inputs (3): Stereo on dual RCA jacks, stereo mini jack or 1/4” (6.3 mm) TRS, > 10 kΩ, -10 dBV nominal, +8.5 dBV max. (RCA and 1/4”), -16 dBV nominal, +2 dBV max. (Mini)
Stereo input LOOP OUT: 1/4” (6.3 mm) TRS
Frequency Response: 20 Hz to 50 kHz (±1.5 dB, 100 Ω load)
Level control:
Off to +2.5 dB gain (RCA and 1/4” inputs, 100 Ω output load), Off to +9 dB gain (Mini input, 100 Ω output load)
Outputs (7): Stereo on 1/4” (6.3 mm) TRS (6, rear panel), 60 mW (100 Ω load)
THD+N: 0.1% (10 mW output, 100 Ω load)
Crosstalk: -75 dB (1 kHz)
Noise: -95 dB (below 10 mW output, 100 Ω load, maximum gain
24 Vdc power supply current: 50 mA (idle), 80 mA (max.)
Case dimensions: 5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size: 1/3 rack width
