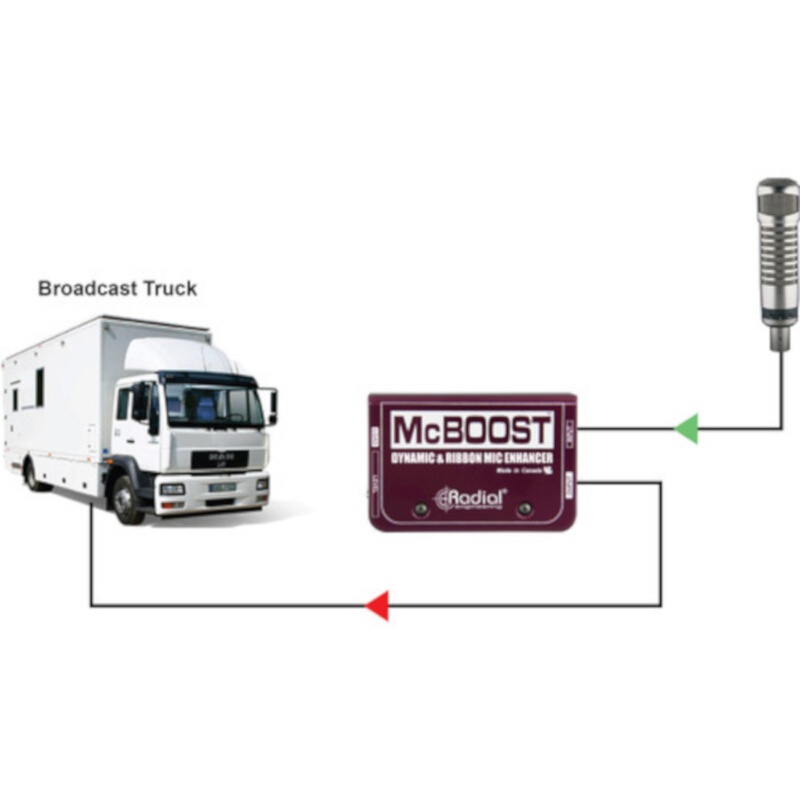

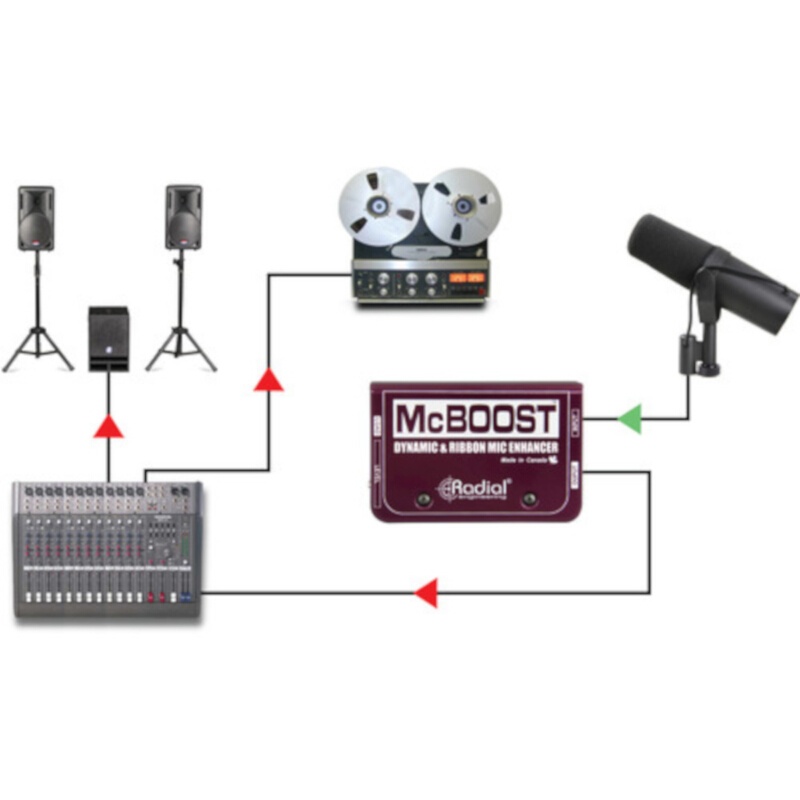

The McBoost from Radial is a high-quality microphone signal booster designed to elevate an output signal of a dynamic microphone or low-output ribbon mic and bring it up to a usable level for mixing consoles and preamps. It can be used for applications such as recording, broadcast TV, rehearsals, live stage, and more.
The 100% discrete class-A design features a dual-transistor J-FET circuit that produces up to 25 dB of gain via a 48V phantom power source without introducing noise, color, or artifacts. Measuring each individual transistor carefully, which is batch-sorted to certify performance, the circuit board is then placed into a 14-gauge reinforced steel enclosure to protect it from outside stresses.

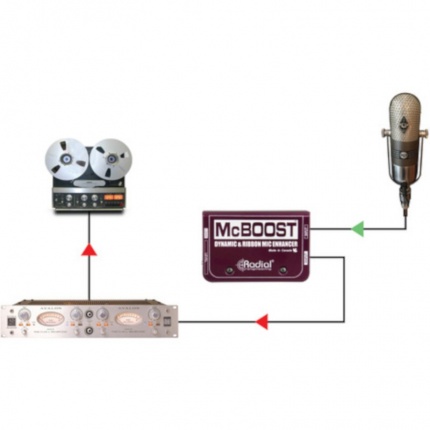

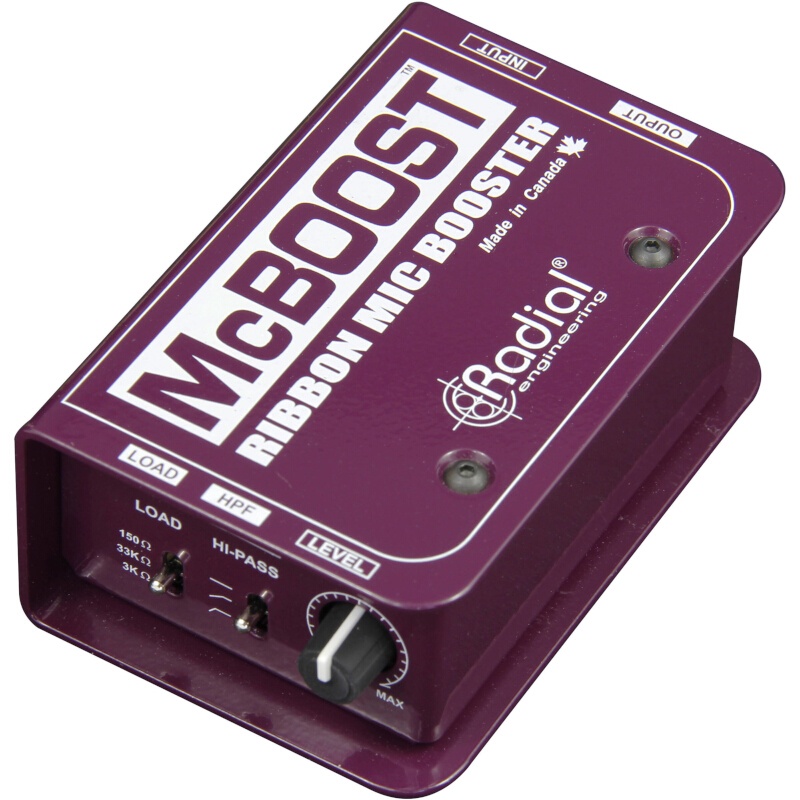

Using standard 3-pin XLRs, the McBoost features three impedance settings to optimize the response, and has a three position high-pass filter switch to reduce low-frequency clutter. Finally, the McBoost will elevate the output to produce added clarity, excitement, and drive for long cables, whether you're in a recording studio, on a live stage, or in a broadcast center.
-
Radial Engineering McBoost Specifications:
Circuit Type Class-A Differential FET/Bipolar Hybrid
Frequency Response 7 Hz to 30 kHz
Total Harmonic Distortion 0.005% @-30 dB
Dynamic Range 105 dB
Maximum Input -6 dBu
Maximum Gain +25 dB
Equivalent Input Noise -120 dBu
Input Impedance 600 ohms, 2.7 kOhms, 30 kOhms
Input Clip Level -17 dBu, -14 dBu, -9 dBu
Output Clip Level +10 dBu
Noise Floor -95 dBu, -98 dBu, -113 dBu
Output Impedance 2.2 kOhms
Phase Deviation 0° @ 20 Hz, 10° @ 20 kHz
Features

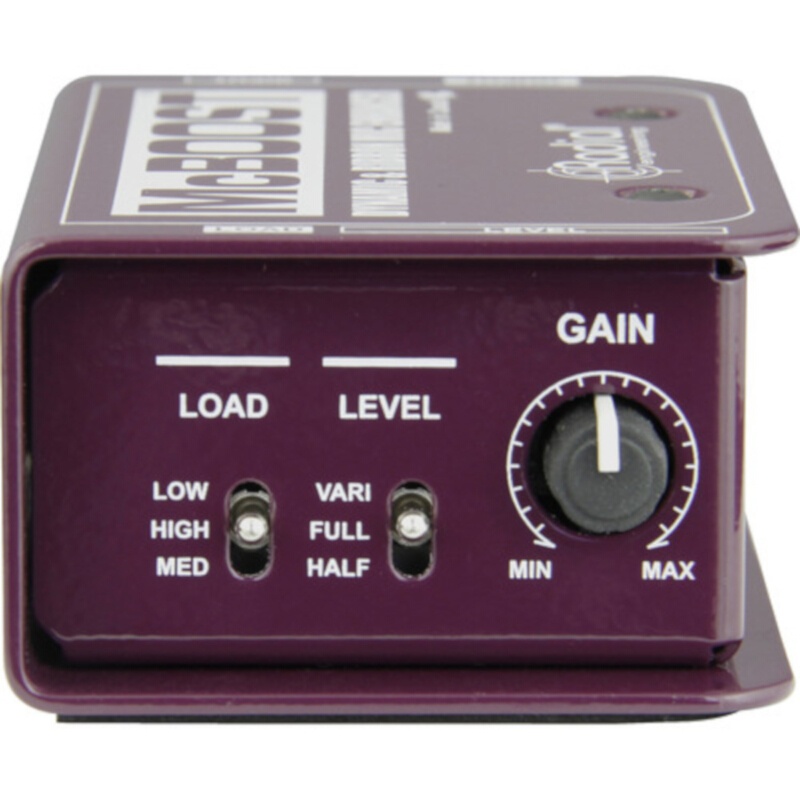

Gain Control Variable from +4 dB to +25 dB
High-Pass Filter 100 Hz and 55 Hz @-3 dB
Filter Slope: 6 dB/Octave

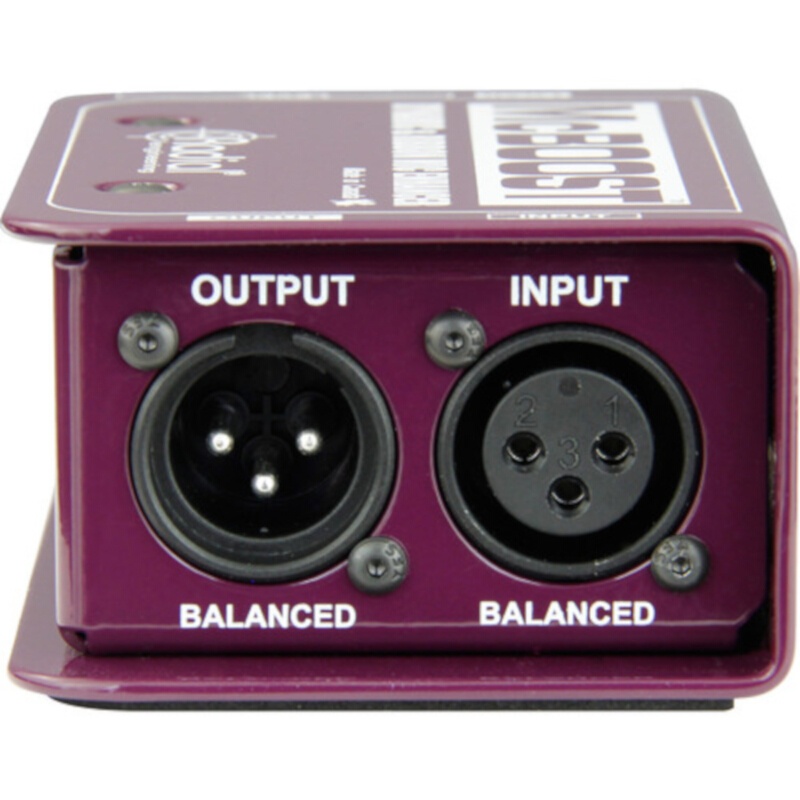

XLR Configuration Pin 2 +, pin 3 -, pin 1 ground
General
Construction 14-gauge steel chassis & outer shell
Power Requirement Passive, no power required
Operating Conditions For use in dry locations only between 5°C and 40°C
Dimensions (L x W x H) 4.2 x 2.76 x 1.68" (106.7 x 70.1 x 42.7 mm)
Weight 0.5 lb (0.23 kg)
