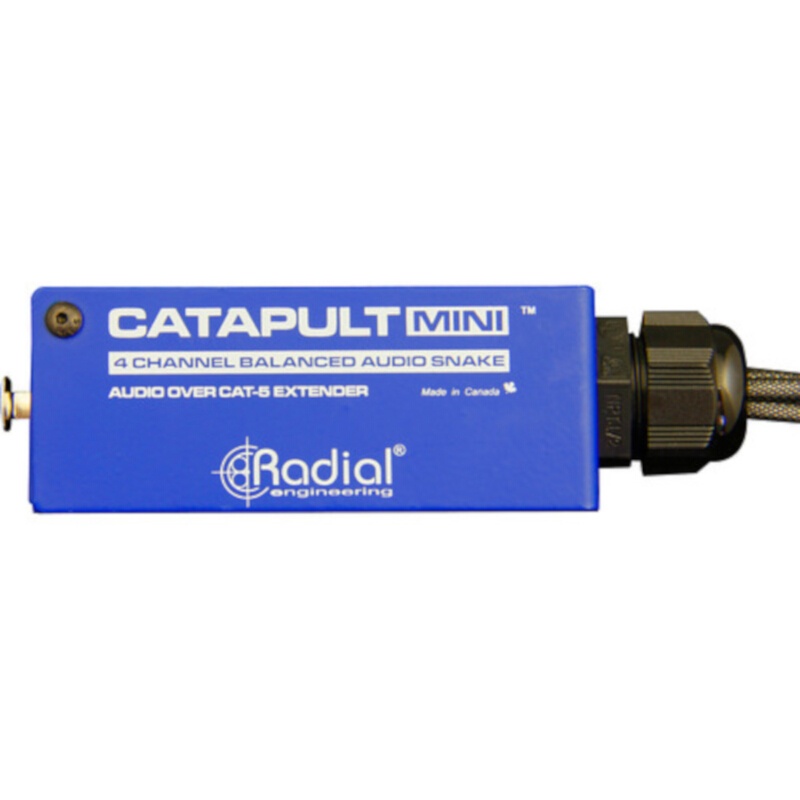

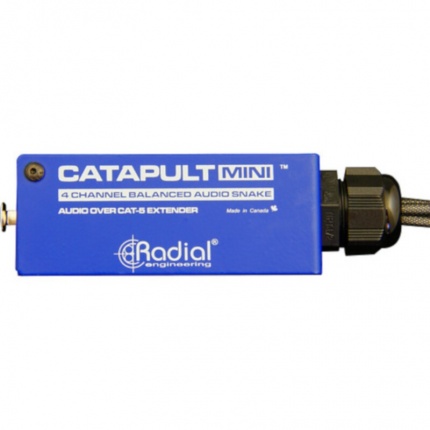

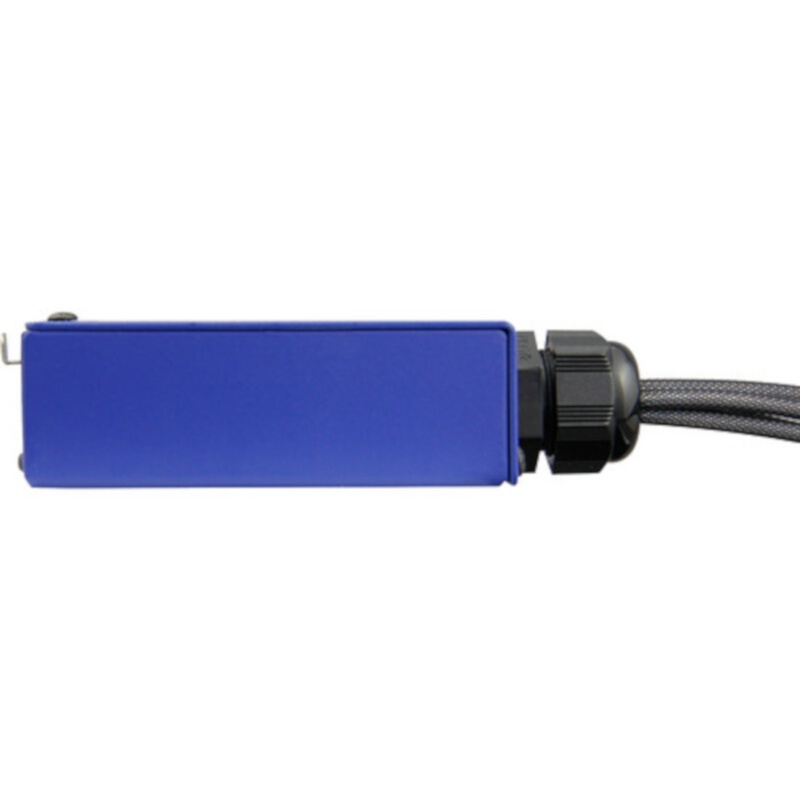

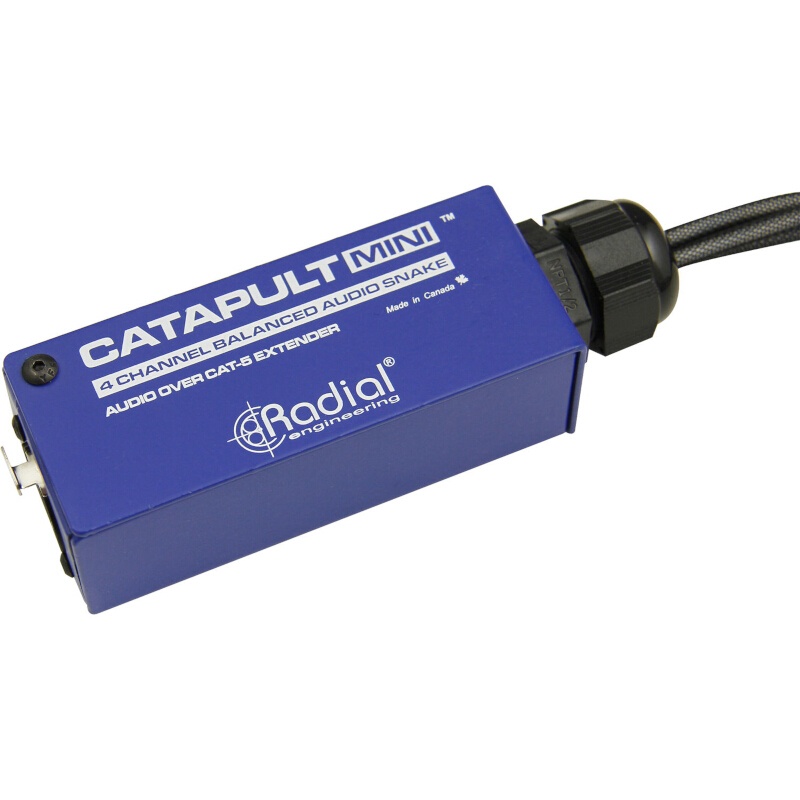

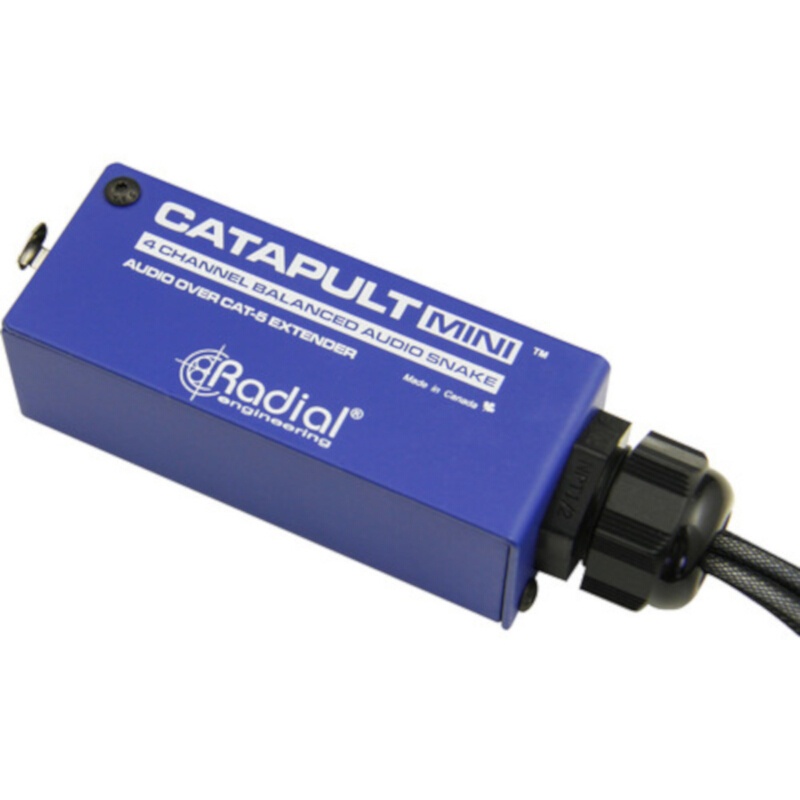

The Catapult Mini RX from Radial Engineering acts as a 4-channel audio snake. It features an RJ45 input, which receives four channels of analog audio over Cat 5/6 Ethernet cables. Four male XLR outputs on cable tails allow you to plug directly into inputs of a mixer or recording interface. The housing is made of 16-gauge steel for handling any environment and is powder coated.
FEATURES:
Expando mesh sheathing provides extra durability and protects cables from damage
Color-coded heatshrink labels for identifying channels at a glance
Can be used with Catapult Mini TX with a Cat 5 cableRadial Engineering Catapult Mini RX Specifications:

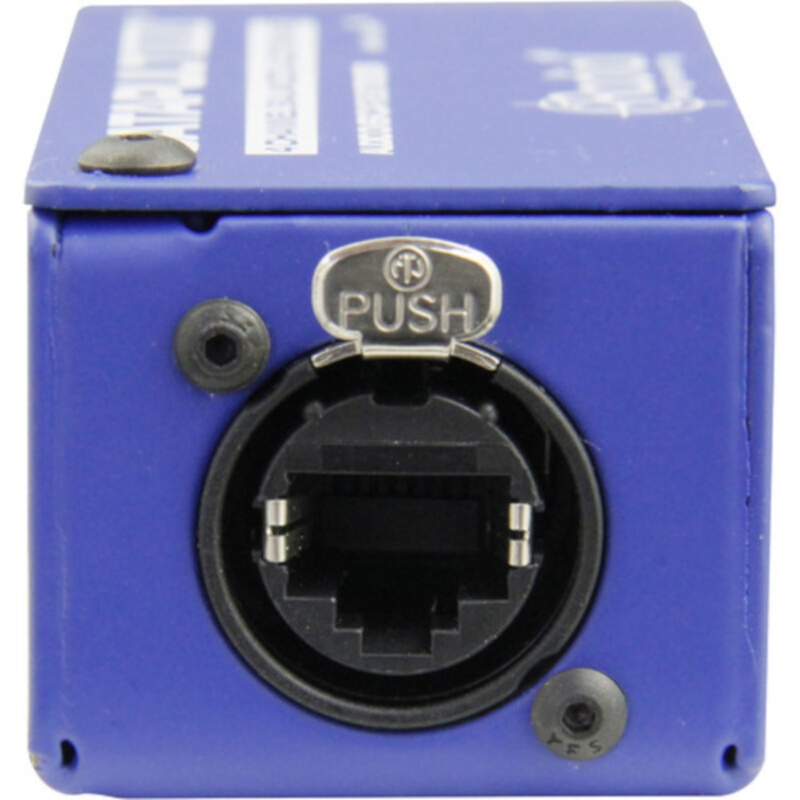

Input RJ45 Port

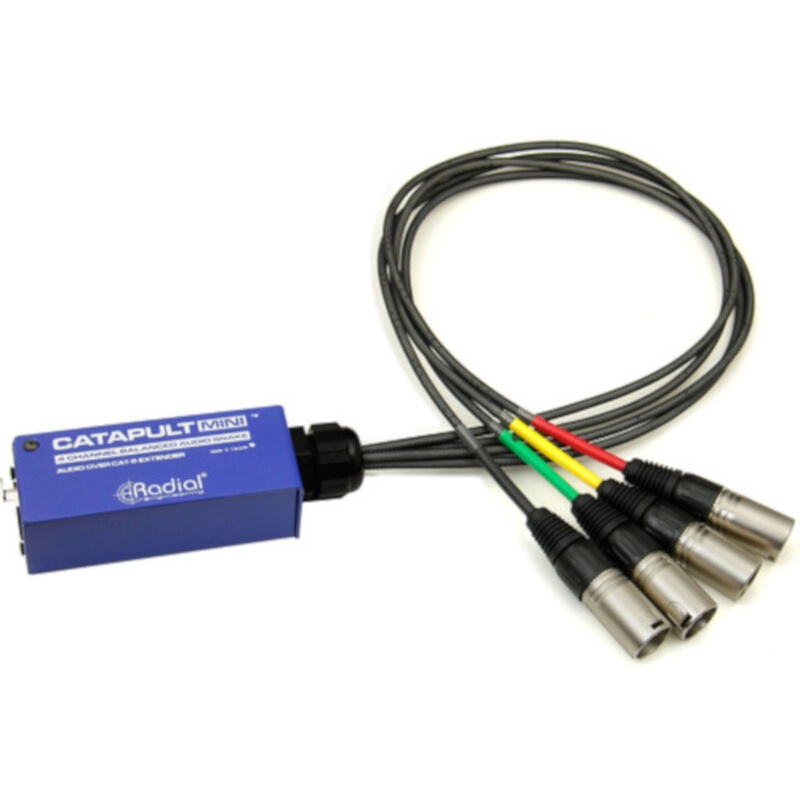

Outputs 4 x 3-Pin XLR Male, Audio Connector Cable Tail
Frequency Response 7 Hz to 20 kHz
THD + N 0.0005%, 1 kHz
Dynamic Range 140 dB
Maximum Input 35 dBu
Minimum Load Impedance 100 Ohms
Common Mode Rejection > 103 dB
Construction 16-Gauge Steel Chassis and Outer Shell
Cable Length 2' / 0.6 m
Dimensions 4.2 x 1.3 x 1.6" / 10.7 x 3.4 x 4.1 cm
Weight Not Specified by Manufacturer
