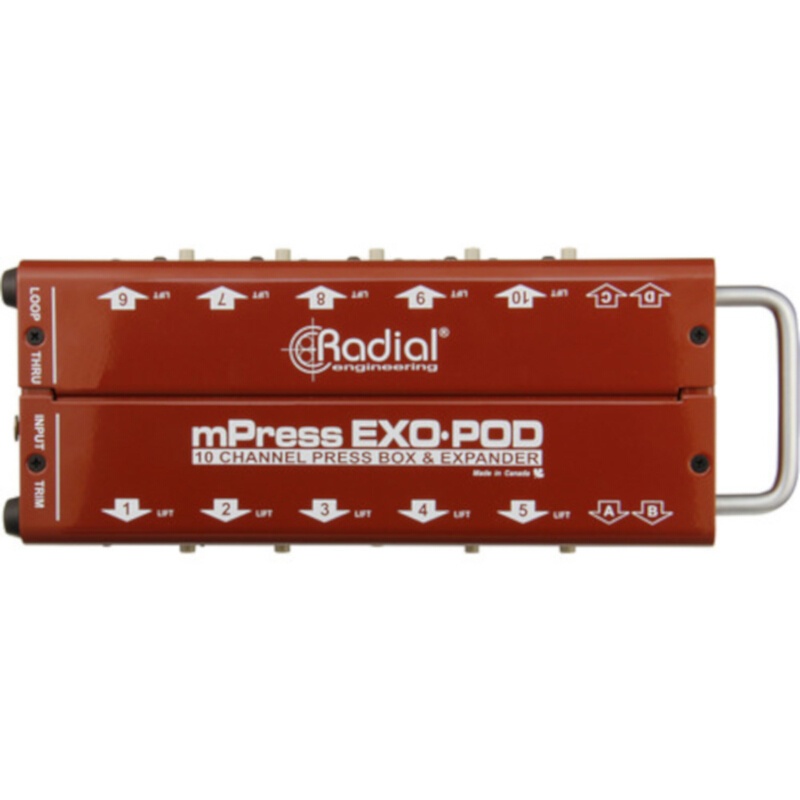

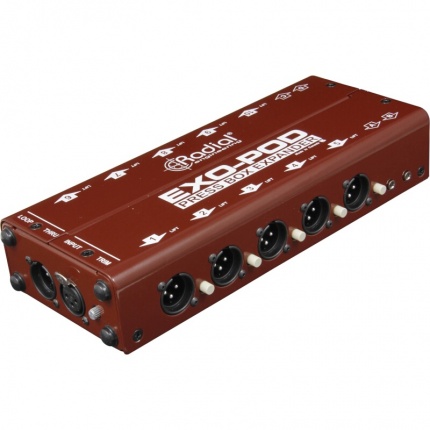

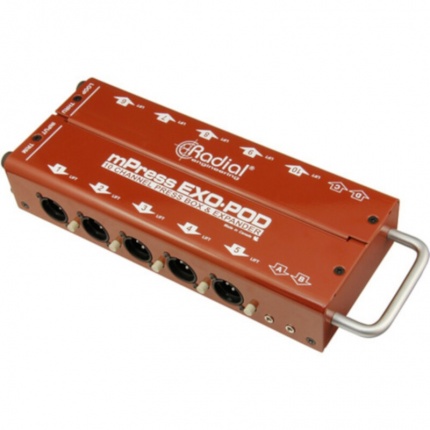

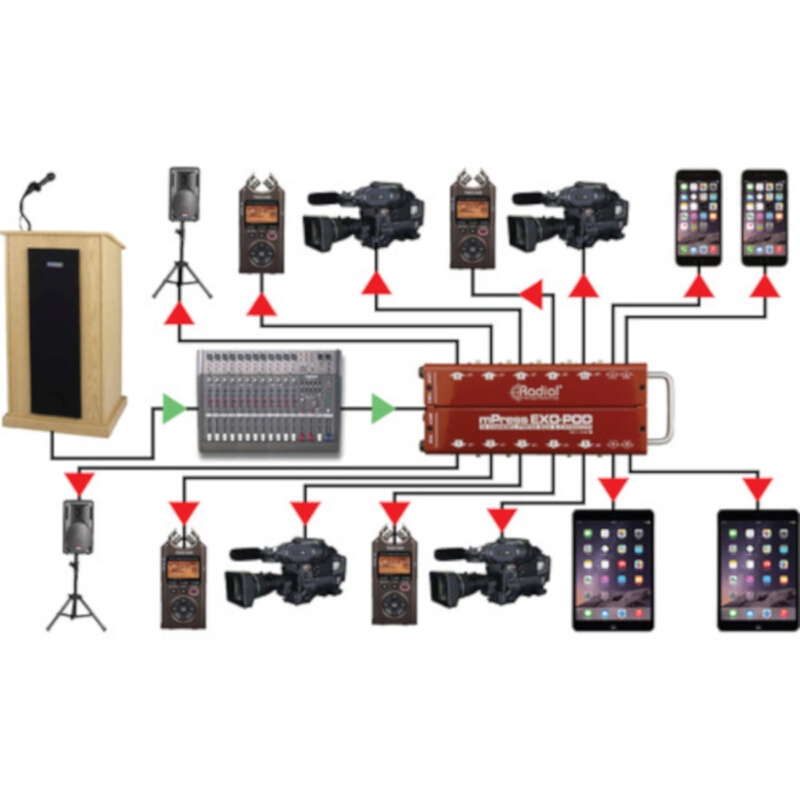

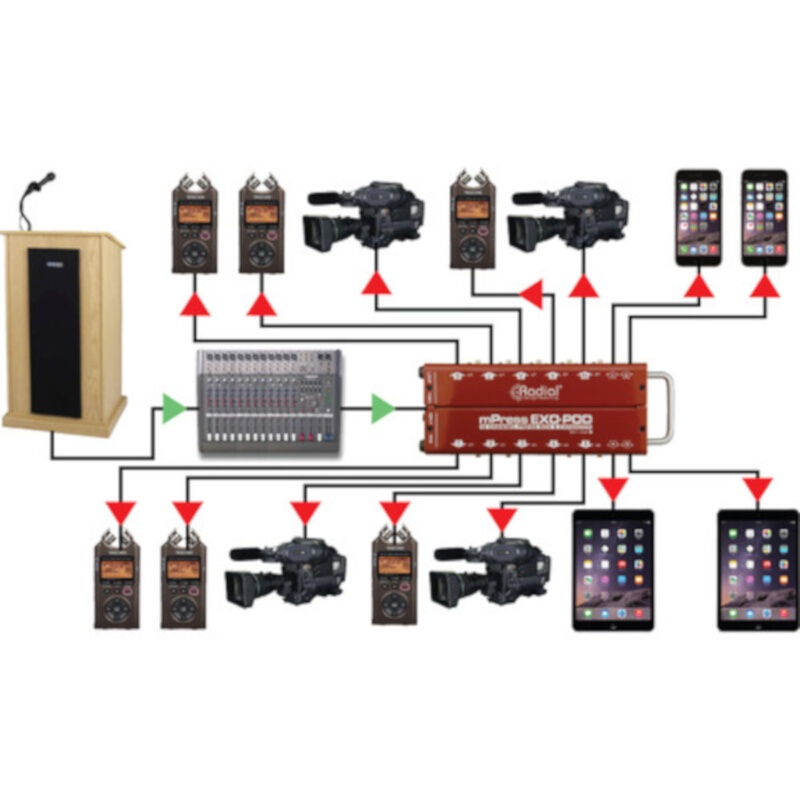

Sporting transformer-isolated circuitry and requiring no power to run, the Exo-Pod from Radial Engineering is a floor box designed to take the balanced output from any mixing console and distribute the signal to ten XLR outputs and four 3.5mm connections, giving you as many as 14 separate audio destinations for one signal. As such, the Exo-Pod is useful in broadcast applications, such as connecting to handheld recorders, video cameras, or wireless receivers.
Simply plug in a balanced XLR signal into the unit's XLR input jack to get started. From there, the signal will be protected by a variety of different features, such as the 14-gauge steel casing to provide shielding against magnetic fields, as well as the transformer-isolated outputs. Each XLR output has its own ground lift switch to help exterminate hum or buzz from ground loops. On the side of the unit, a trim pot allows any broadcast technician to easily reduce output level across all 14 connections. An XLR loop-through allows you to daisy-chain the signal to additional units, while bumpers on the side protect the aforementioned throughput and the input. Rubber feet keep your floor scuff-free, and a steel handle allows for quick maneuverability and transport.
FEATURES:
Completely passive design
Exo-Pod transformer will block phantom power to prevent damage to unit

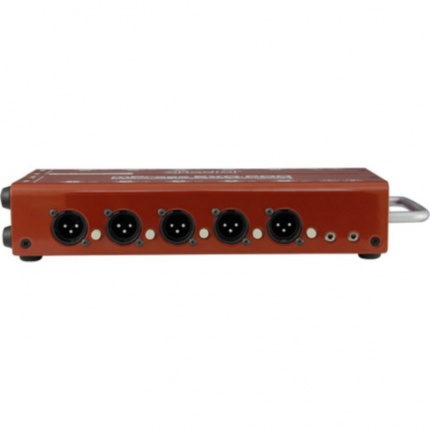

10 x XLR transformer-isolated outputs
Ground lifts to help eliminate buzz and hum caused by ground loops
4 x 3.5mm transformer-isolated mini TRS outputs
Durable switches with metal outer casing, rated at over 20,000 cycles
Double-sided, military-spec circuit board to ensure durability
Full ground plane to reduce radio frequency interference
Trim control for quick level adjustments across all outputs

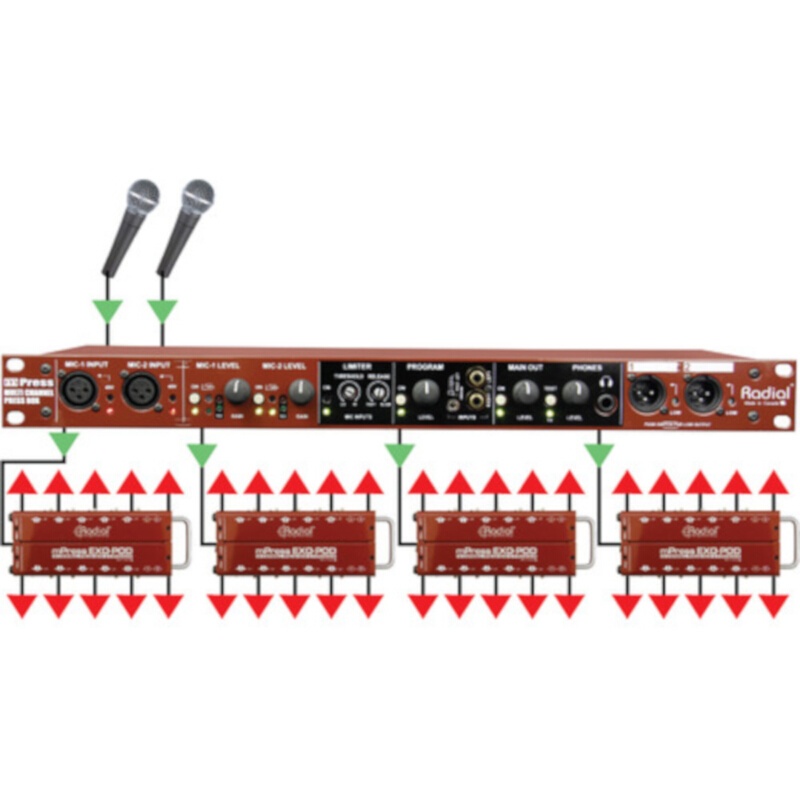

XLR loop-through to feed additional Exo-Pods
Durable powder coat
Steel handle for quick maneuverability
Replaceable rubber feet
Bumper to protect connectors and trim controlRadial Engineering Exo-Pod Specifications:
Audio Circuit Type Passive
Frequency Response 20 kHz, ±1 dB
Total Harmonic Distortion 0.001%
Dynamic Range > 136 dB / > 100 dB
Input Impedance 350 Ohms
Common Mode Rejection Ratio 63 dB
Gain Input to XLR Output: -3.5 dB / -18 dBu
Input to mini Out: -1.3 dB / -20 dB
Input Clip Level > +26 dBu
Output Impedance XLR Outputs: 1000 Ohms
Mini Outputs: 4600 Ohms
Equivalent Input Noise -108 dBu / -84 dBu
Noise Floor XLR Out: -111 dB
Mini Out: -86 dB
Intermodulation Distortion 0.006%
Phase Deviation -5 / +25°
Controls Input level trim
Switches Ground lifts
Construction 14-gauge steel chassis and outer shell
Finish Powder coat
Dimensions (L x W x H) 11.8 x 5 x 2.3" / 29.8 x 12.7 x 5.7 cm
Weight 3.6 lb / 1.6 kg
