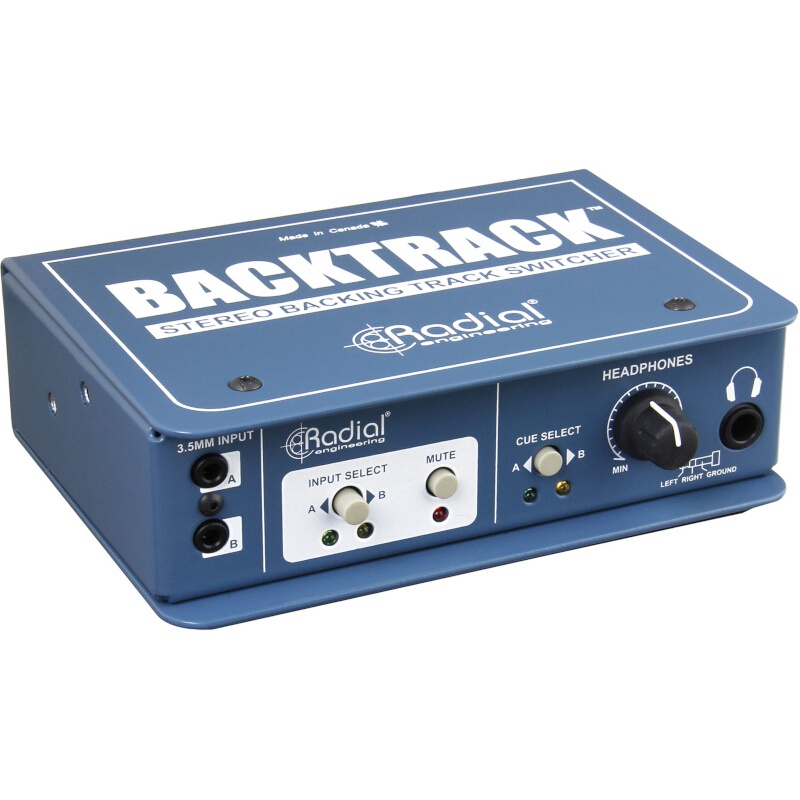

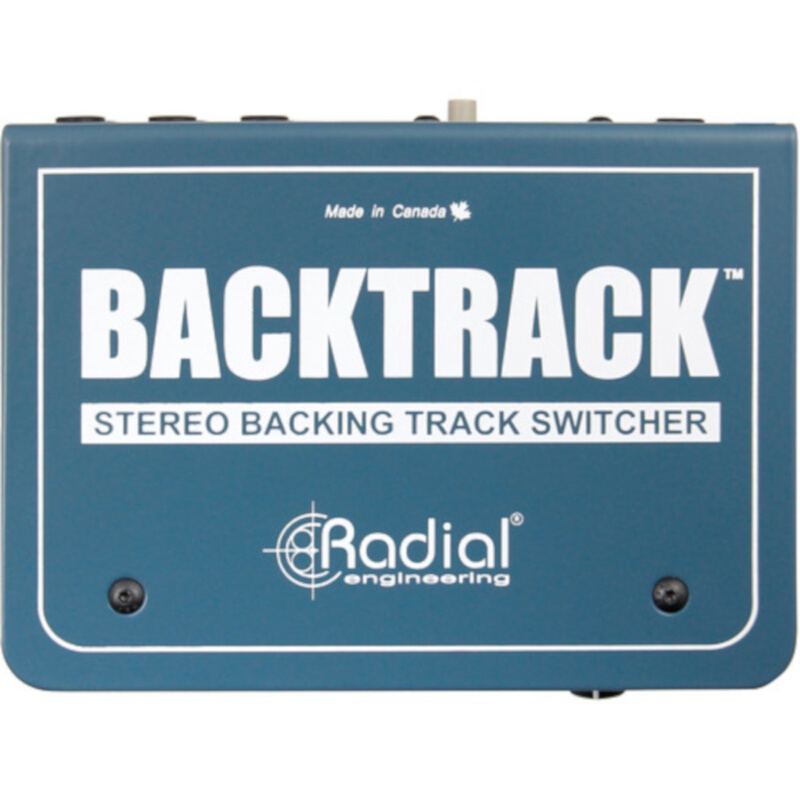

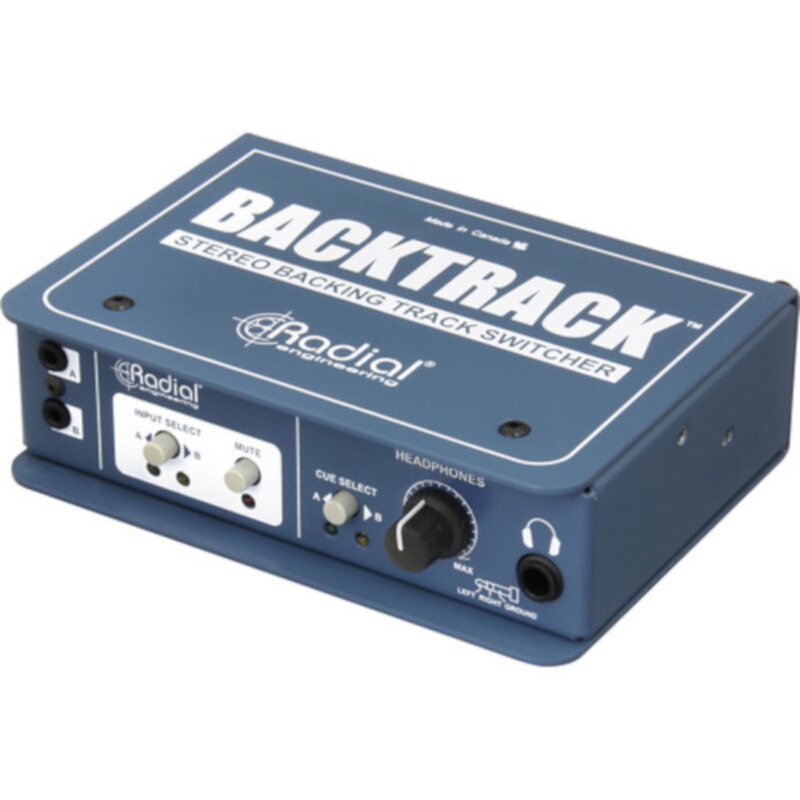

Radial Engineering Backtrack Stereo Audio Switcher

S$ 695.99
(S$ 695.99 excl GST)
Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!
Key Features:
  • For Bands Running Backing Tracks Live
  • Connects 2 Stereo Tracks via 1/4" Inputs
  • Runs 2 Stereo Tracks via 3.5mm Inputs
  • Runs Audio from Laptops & Interfaces
  • Backtrack | Buy Radial Engineering direct from Singapore's Authorized Distributor for warranty assurance.

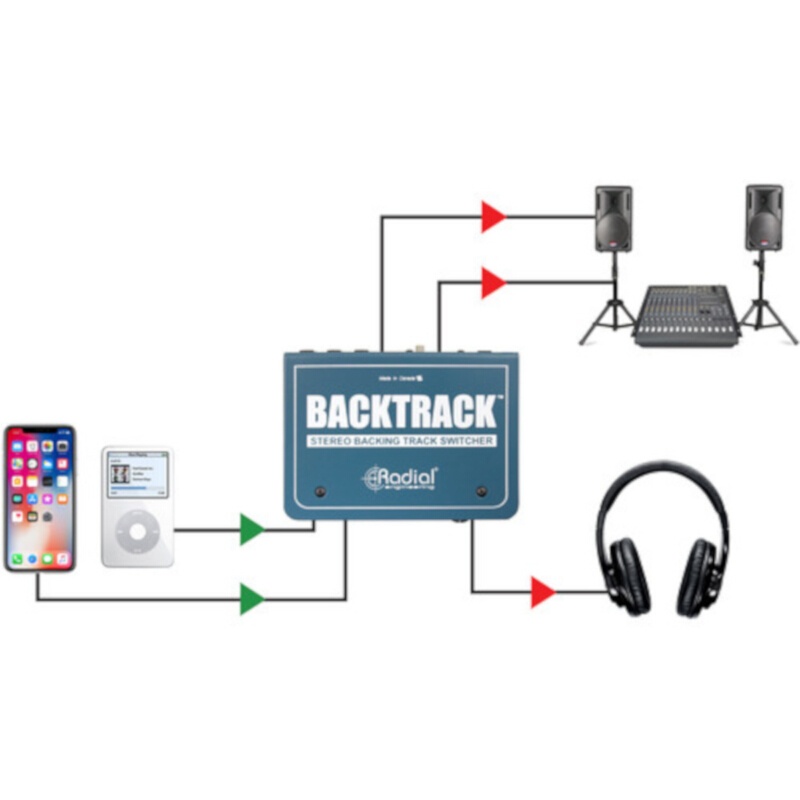

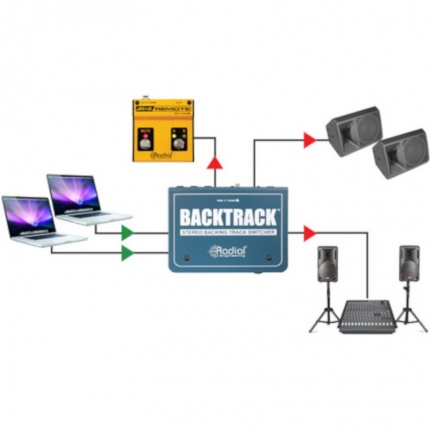

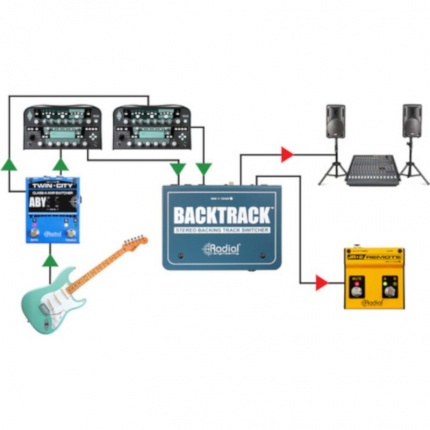

    Designed for bands running backing tracks on stage, the Radial Engineering Backtrack is a stereo audio switcher. It provides two stereo input paths via 1/4" and 3.5mm connections, and handles audio from laptops, interfaces, MP3 players, or combinations of any compatible device.

    The Backtrack's dual-input function lets you switch between different musical loops in experimental contexts, though you can also use the unit to run a redundant backup loop; this is particularly useful if you want to minimize the risk of your backing track suddenly dropping out—a fear any musician can relate to at one time or another.

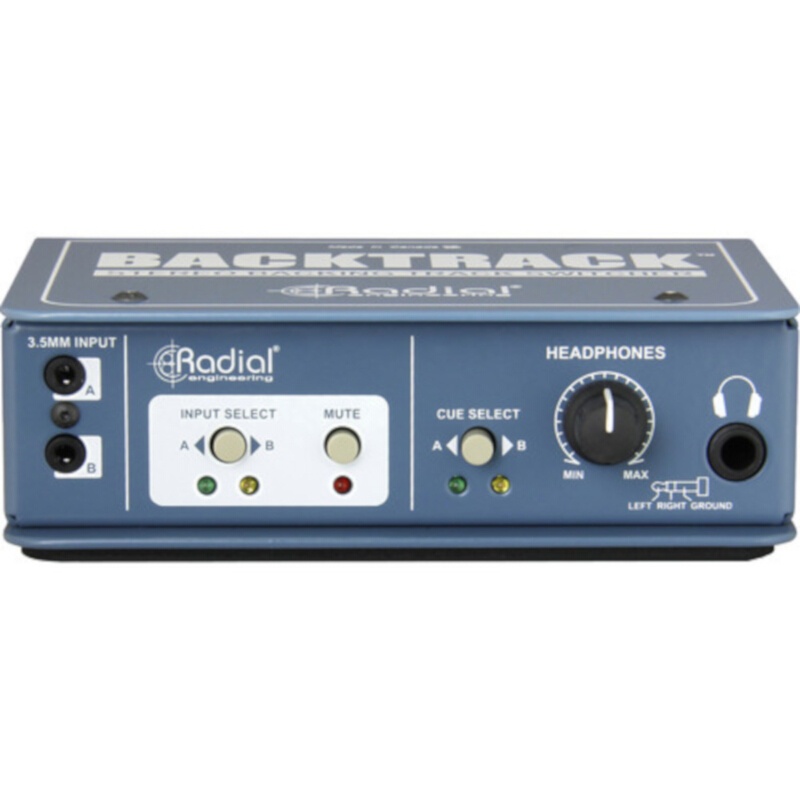

    Once you've connected two audio sources to the Backtrack, you can switch between them, or mute them both as you please. Front panel controls are provided for this purpose, though you can also use a JR-2 remote footswitch, available separately.

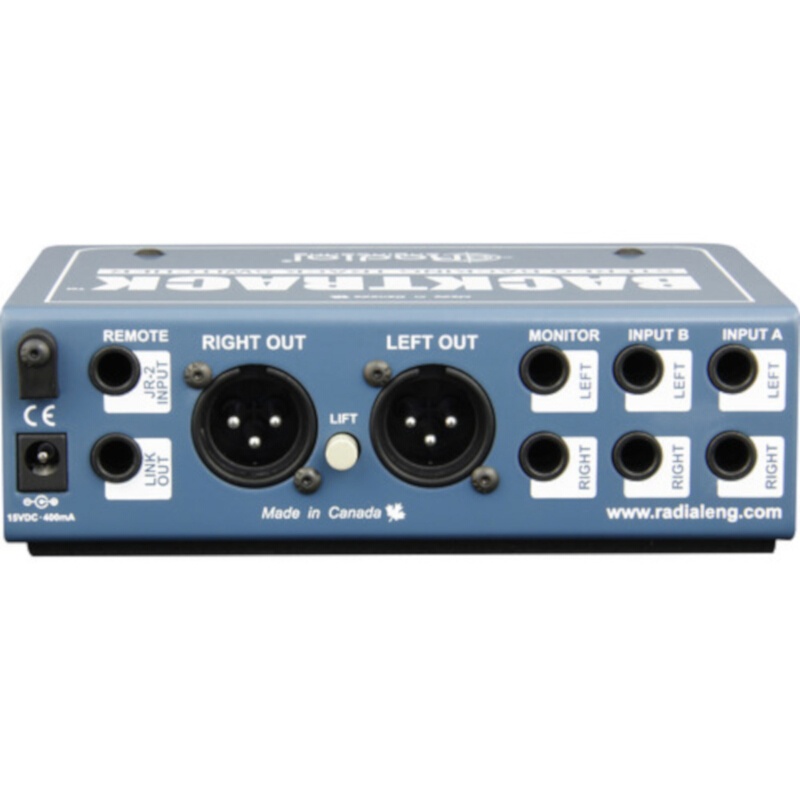

    Level controls on the headphone output let you monitor either input whenever you wish, while a 1/4" monitor output can route sound to powered speakers. For the PA system, you'll find dual transformer-isolated XLR outputs, complete with a ground-lift switch to mitigate any noise, buzz, or hum often associated with ground loops.

  • Radial Engineering Backtrack Specifications:



    I/O 2 x TRS 3.5 mm inputs, stereo
    4 x 1/4" inputs, stereo pairs
    1 x 1/4" Remote input
    1 x 1/4" Headphone output, stereo
    2 x 1/4" Speaker outputs
    2 x XLR Outputs
    Controls Select button
    Mute button
    Headphone select button
    Level knob (monitor)
    Level knob (line out)
    Level knob (headphones)
    Ground Lift Switch on rear
    Remote JR 2 Footswitch, available separately
    Frequency Response 20 Hz to 20 kHz (±0.5 dB)
    THD 0.007% @ 0 dBu, 1 kHz
    Noise Floor -105 dBu
    Dynamic Range > +130 dBu
    Maximum Input > +25 dBu
    Intermodulation Distortion 0.002% @ 0 dBu, 1 kHz
    CMMR 34 dBu @ 60 Hz, 42 dBu @ 3 kHz
    Power Requirements 15 VDC, 100 mA (power adapter included)
    Construction Material 14-gauge steel chassis
    Finish: Powder Coat


    Dimensions 4.6 x 5.9 x 1.9 / 11.7 x 15 x 4.8 cm
    Weight 2.2 lb / 1 kg
