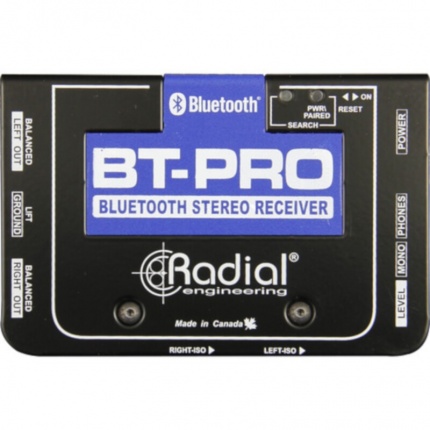

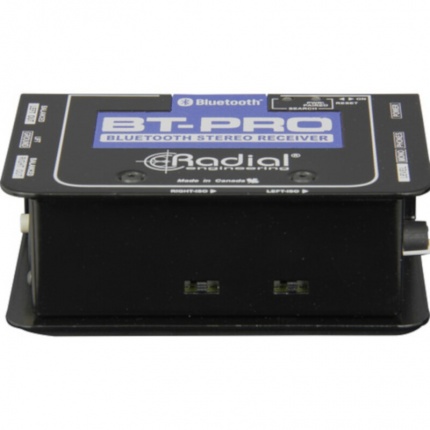

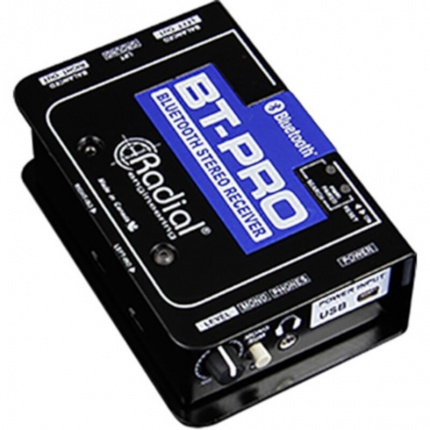

BT-Pro | Replaced by the Radial BT-PRO V2

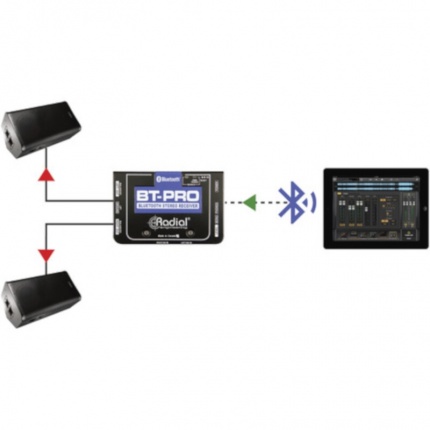

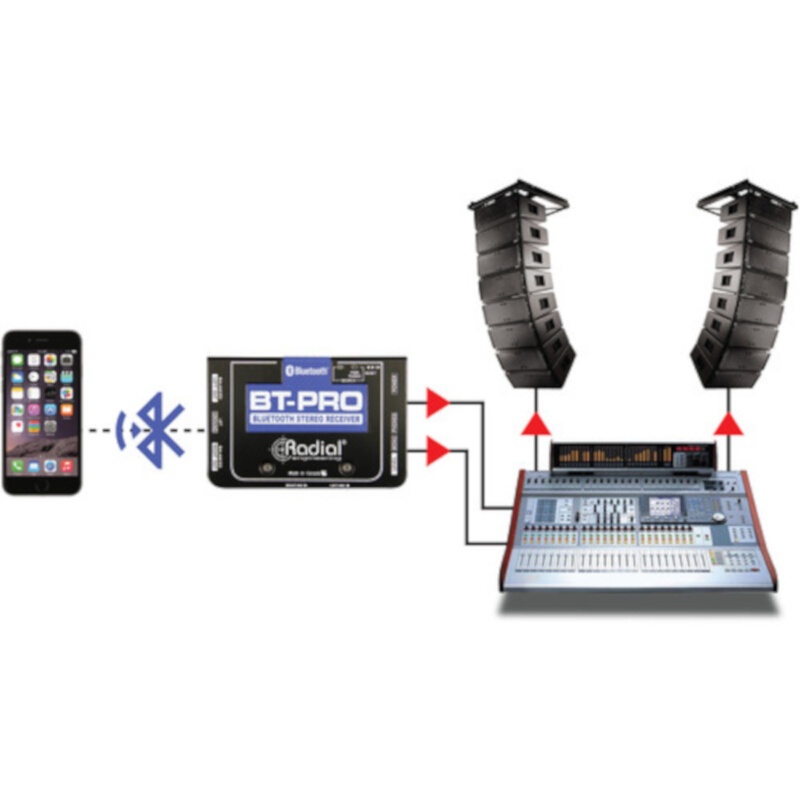

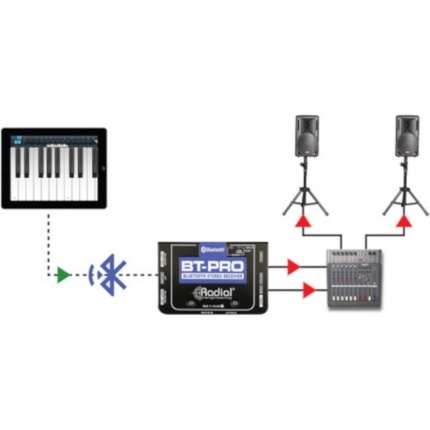

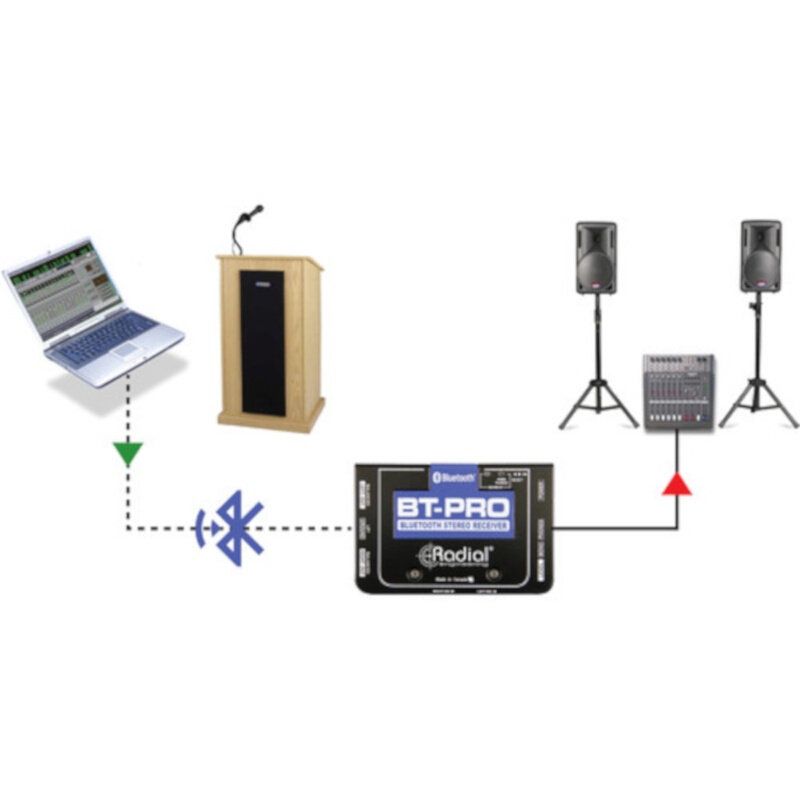

Designed by Radial Engineering to capture wireless transmission from Bluetooth devices, the BT-Pro converts Bluetooth signal to a balanced audio path for use in PA or recording systems. Using the Bluetooth 2.0 EDR standard, this device employs a 16-bit wireless compressed format which allows the source-device to determine the actual bit-rate. Then, the BT-Pro converts the transmission to a stereo analog signal whose output level can be manipulated and whose stereo-image can be summed from the device itself.
Note that multiple units of this version of Bluetooth DI is not recommended to be used in close proximity to each other due to it having the same device ID. If you want unique IDs, choose the all-new Radial BT-PRO V2
FEATURES:
Noise & Hum Eliminators
Isolation transformers and a ground-lift switch can be utilized to mitigate external noise, hum, and buzzLong Range
The BT-Pro offers a range of 40'Buss-Powered
The BT-Pro is powered by an external 5V supply via mini-USB port, and thus, can be powered from a laptop or USB hubHeadphone Amp
A built-in headphone amp with a 3.5mm stereo output is provided for trouble-shooting and other usesRadial Engineering BT-Pro Specifications:
Audio
Bluetooth 2.0 with EDR
Bluetooth Range 40.0' / 12.2 m
Audio Circuit Type Bluetooth A2DP transceiver with audio line drive
Bluetooth Compatibility All Bluetooth A2DP compliant devices
Frequency Response 20 Hz to 20 kHz
Dynamic Range 96 dB
S/N 96 dB
Maximum Gain +8 dBu (source-file dependent)
Harmonic Distortion 0.01%
Stereo Separation 75 dBu
Output Impedance 300 Ohms nominal
Features

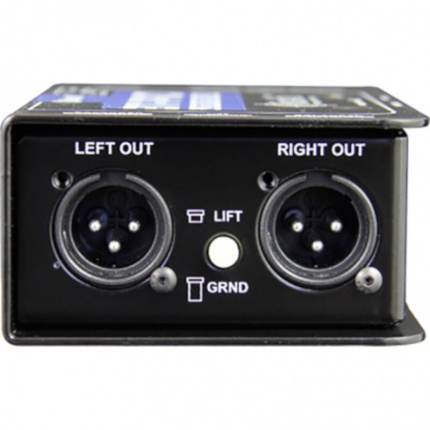

Audio Output 2 x XLR stereo balanced, mic level
Headphone Output 1/8" / 3.5 mm TRS

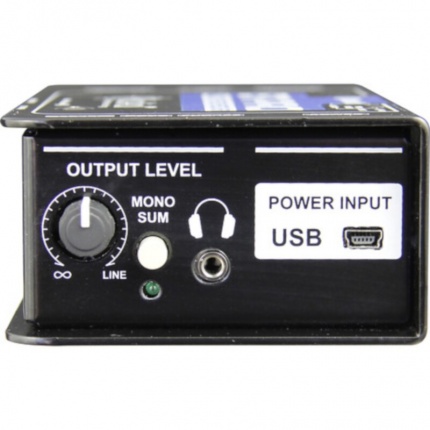

Level Control Variable, works on headphone and XLR
Transformer Isolation Independent for each channel
Mono / Dual Mono switch sums left and right channels
Ground Lift Lifts pin 1 on both XLR outputs
General
Finish Powder coat
FCC Compliance Complies with section 15 of the FCC Rules
Temperature & Humidity For use in dry locations only between 41°F and 104°F (5°C and 40°C)
Power USB-Mini connector (power only)
Dimensions 3.3 x 5.0 x 2" (84 x 127 x 48 mm)
Weight 1.5 lb (680 g)
