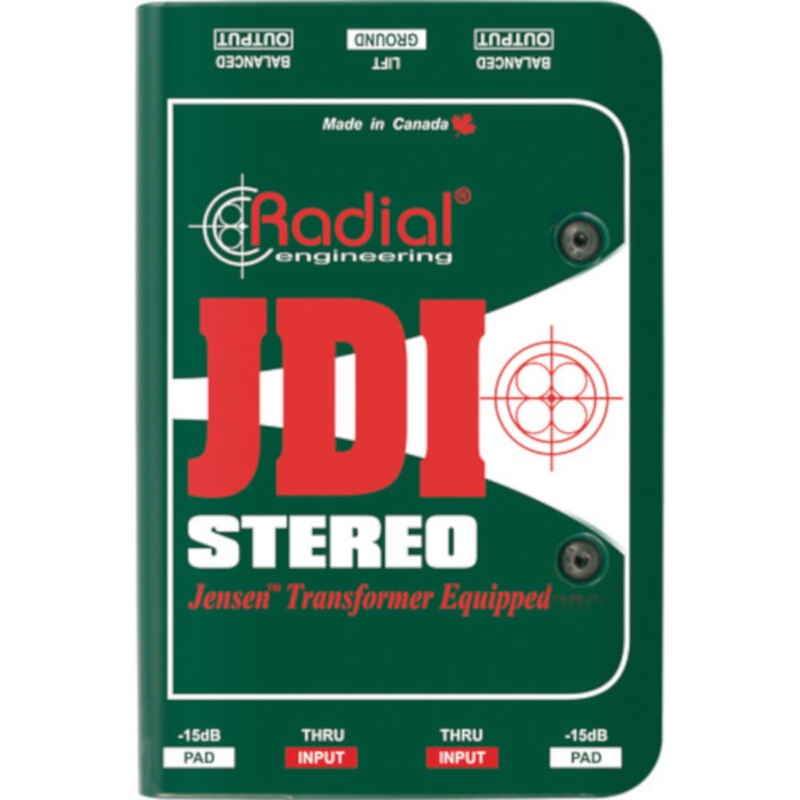

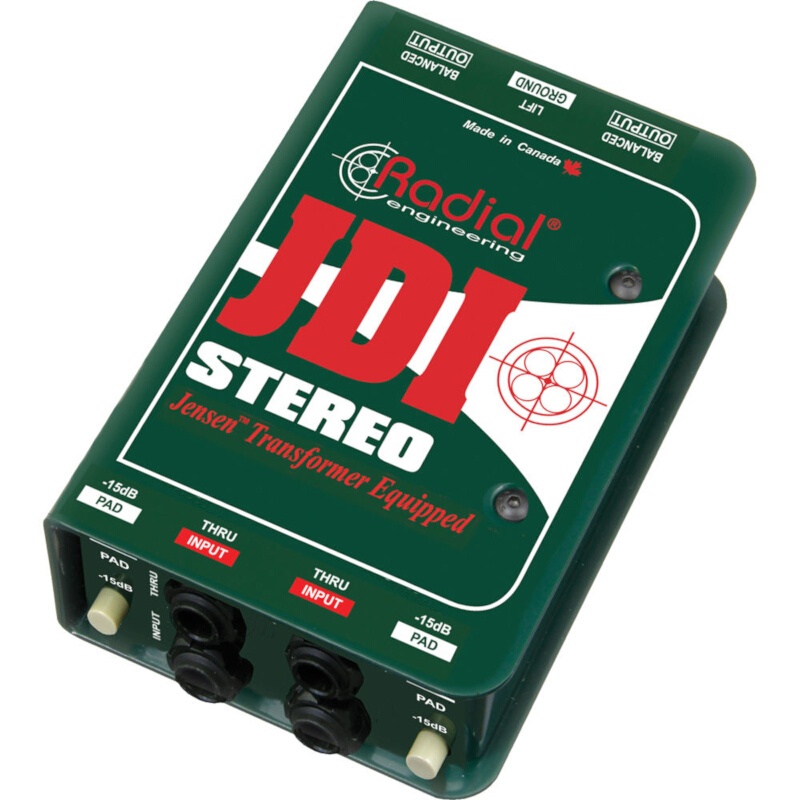

Giving you 2 passive channels for stereo or dual mono DI applications, the JDI Stereo Passive Direct Box from Radial Engineering features Jensen transformers that balance your signal and lower its impedance for driving long cables. The unit boasts a flat frequency response from 10 Hz to 40 kHz, allowing the natural sound of your instrument to be unchanged. Each channel has a -15 dB selectable pad, along with transformer-isolated inputs and outputs, to help reduce noise. Interference is further reduced thanks to its internal Faraday shield. The JDI Stereo's 14-gauge steel construction allows the box to be just as suited for the stage as the studio.
FEATURES:
Jensen transformer-equipped passive DI
Eliminates hum and buzz from ground loops
Virtually zero phase & harmonic distortion
Compact stereo formatRadial Engineering JDI Stereo Specifications:
Audio
Audio Circuit Type Passive, transformer based
Channels 2 (dual mono)
Frequency Response 20 Hz to 20 kHz (± 0.2 dB)
Dynamic Range 135 dB
Maximum Input +21 dB @ 20 Hz to 20 kHz
Total Harmonic Distortion 0.05% from 20 Hz to 20 kHz @ -10 dB
Phase Deviation 0.3° @ 100 Hz; 3° @ 20 Hz
Input Impedance 140 kOhms, unbalanced
Output Impedance 150 ohms, balanced
I/O

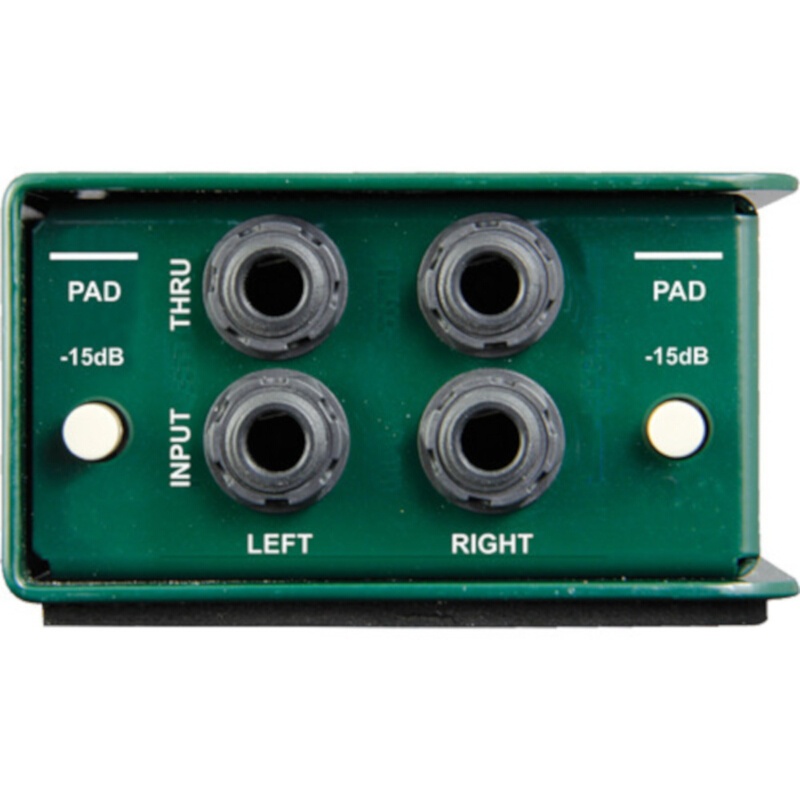

Connectors 2x 1/4" (6.3 mm) inputs
2x 1/4" (6.3 mm) thru

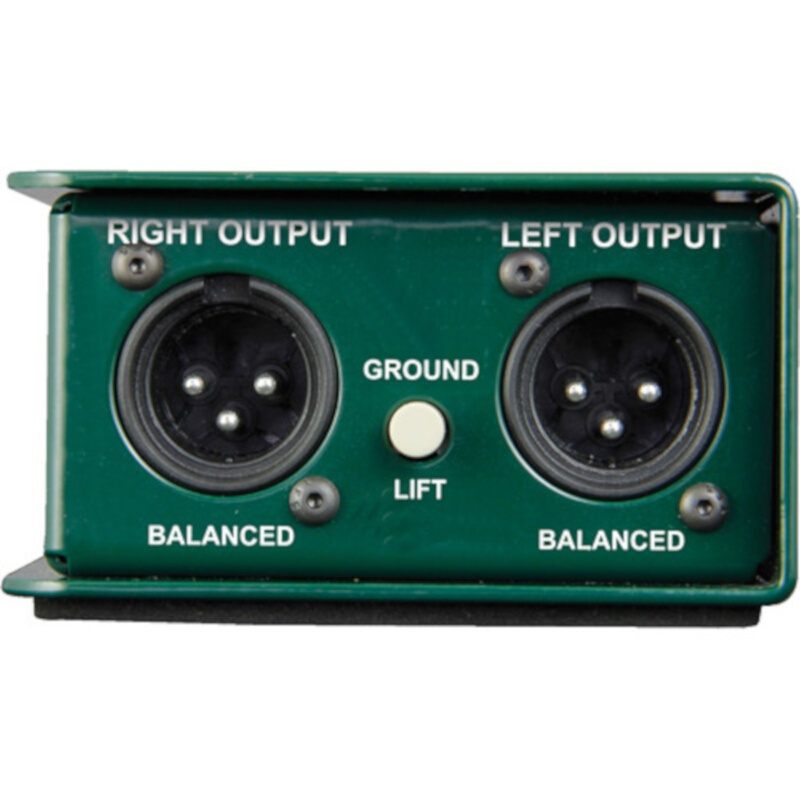

2x XLR-M outputs
Transformer Jensen JT-DBE
Shield Dual Faraday, mu-metal can
Input Pad Switch -15 dB
Polarity Reverse 180° Polarity Reverse: Inverts absolute phase
Ground Lift Disconnects pin-1 at XLR output
XLR Configuration AES standard (pin-2 hot)
General
Construction 14-gauge steel chassis & outer shell
Finish Powder coat
Power Passive, no power required
Operating Conditions For use in dry locations only between 41 and 104°F (5 and 40°C)
Dimensions (L x W x D) 5 x 3.3 x 1.8" (127 x 84.1 x 45.5 mm)
Weight 1.55 lb (703 g)
