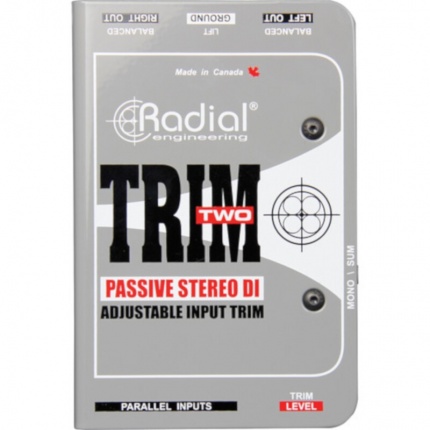

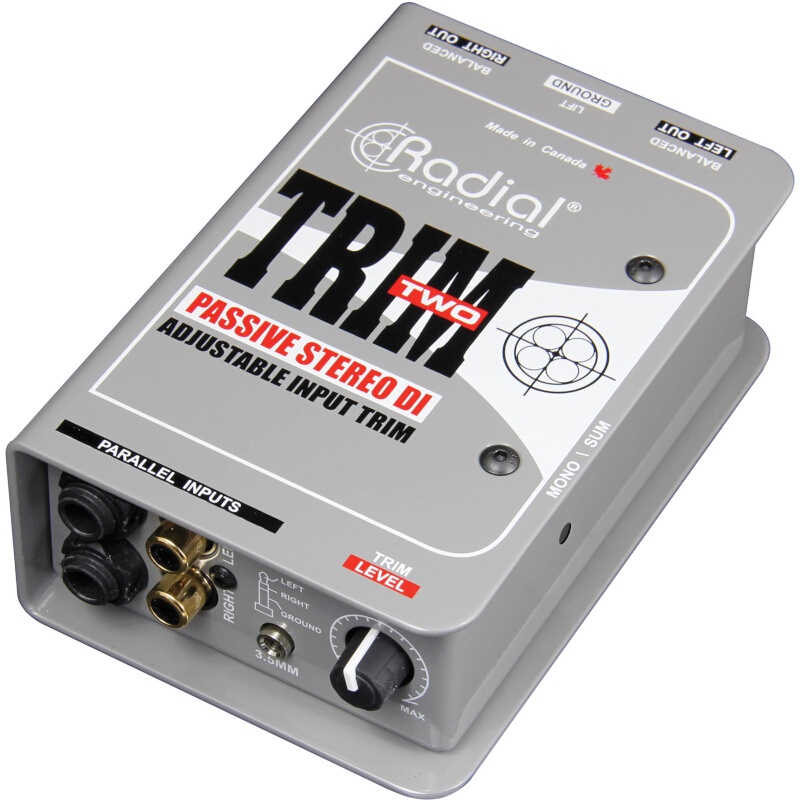

Trim-Two | Buy Radial Engineering direct from Singapore's Authorized Distributor for warranty assurance.

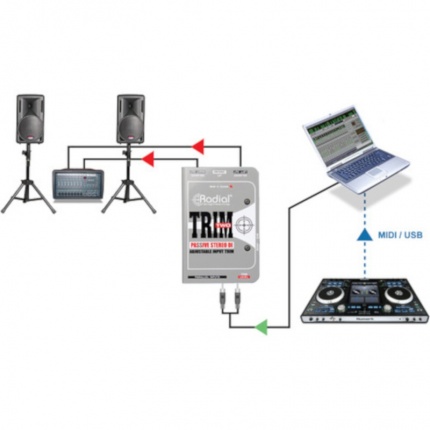

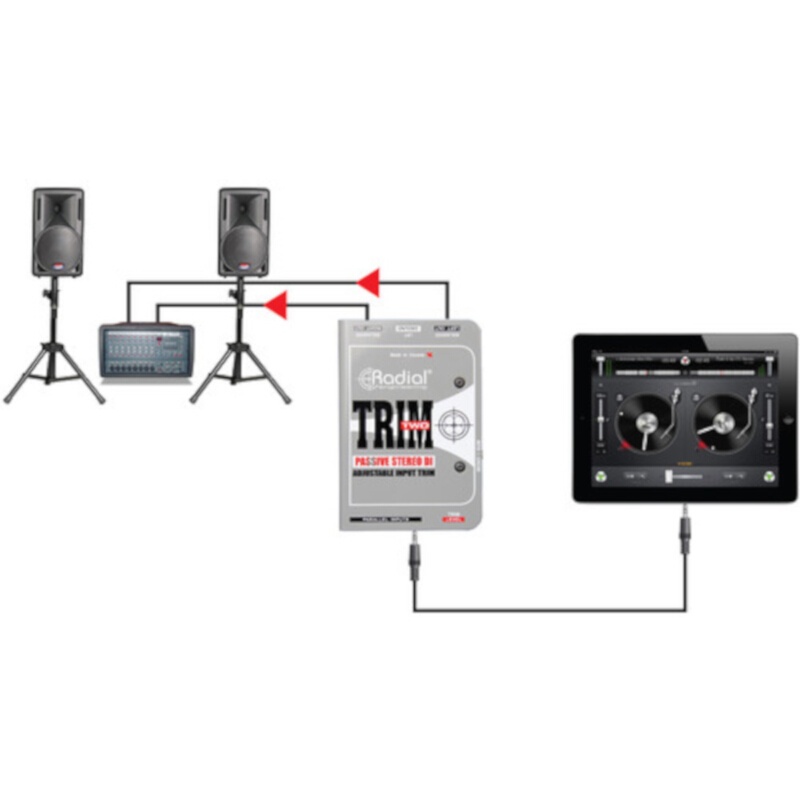

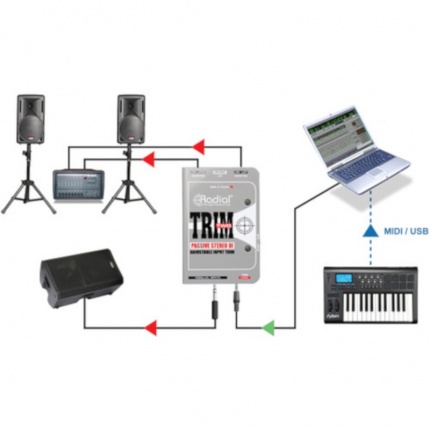

Allowing you to connect your laptop, MP3 player, or other line-level consumer device to a balanced destination, the Trim-Two Stereo DI with Volume Control from Radial Engineering provides a variety of input options, including 1/4", RCA, and stereo 1/8" connections. For additional control, there is a variable level knob that allows you to adjust the output signal level. Designed to provide a linear response from 30 Hz to 20 kHz, the Trim-Two will not color or alter the sound of your input.
The unit features Radial's Eclipse transformers, which help isolate the input signal from the output to eliminate noise and interference, and deliver a linear frequency response from 20 Hz to 18 kHz. The Trim-Two is constructed from 14-gauge steel, making it sturdy enough to use live.
FEATURES:
Stereo direct box for line-level sources
Linear response from 30 Hz to 20 kHz
Easy access front panel volume control
Choice of RCA, 1/4" and 1/8" connectorsIn the Box
Radial Engineering Trim-Two Stereo DI with Volume ControlRadial Engineering Trim-Two Specifications:
Audio
Audio Circuit Type Passive, transformer based
Channels Dual Channel (Stereo)
Frequency Response 20 Hz to 20 kHz
Dynamic Range >100 dB
Maximum Input +20 dB @ 20 Hz
Total Harmonic Distortion 0.009%
Phase Deviation 10°
Input Impedance 10 kOhms, unbalanced
Output Impedance 2.8 kOhms, balanced
I/O

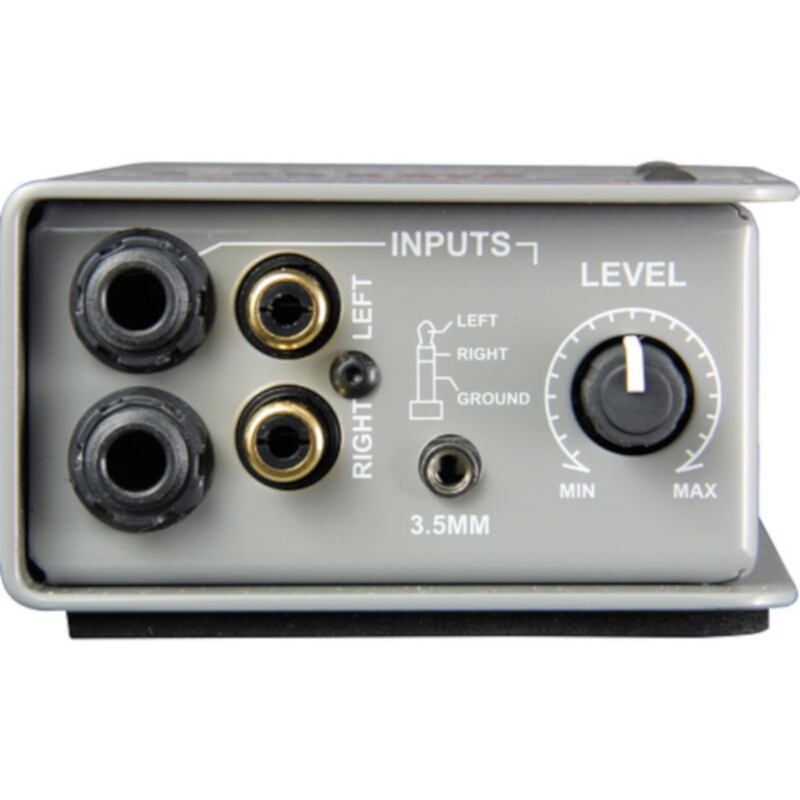

Connectors 2x 1/4" (6.3 mm) inputs
2x RCA (L, R) inputs
1x 1/8" (3.5 mm) input

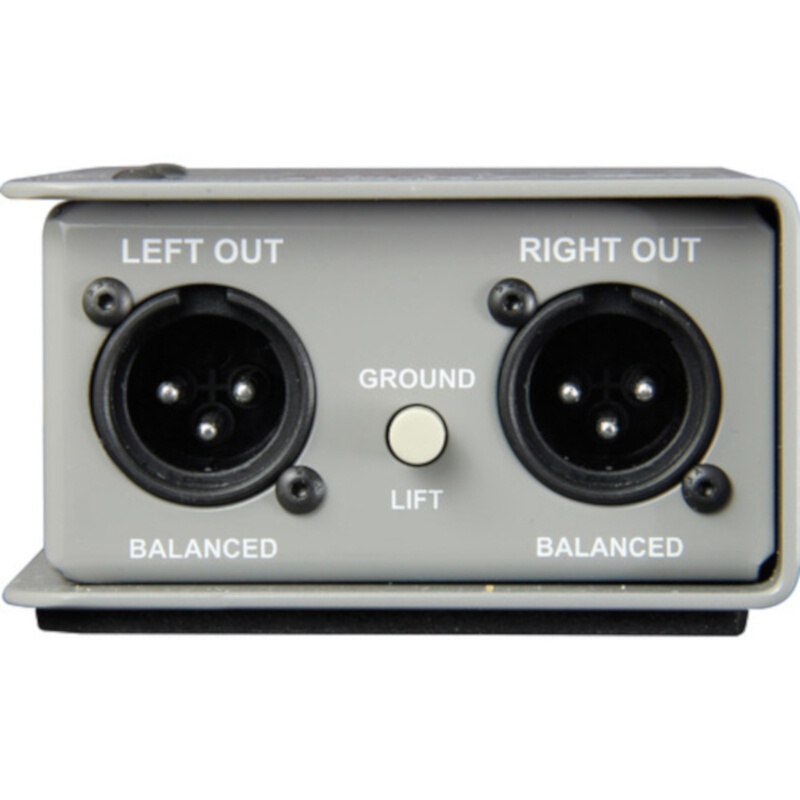

2x XLR-M (L, R) outputs
Transformer Custom
Shield Copper foil
Input Pad Switch Variable level control
Summing Mono Sum: Merges left + right sources to mono
Ground Lift Disconnects pin-1 @ both XLR outputs
XLR Configuration AES standard (pin-2 Hot)
General
Construction 14-gauge steel chassis & outer shell
Finish Durable powder coat
Power Passive, no power required
Operating Conditions For use in dry locations only between 41 to 104°F (5 and 40°C)
Dimensions (WxHxD) 3.3 x 5.0 x 2" (84 x 127 x 48 mm)
Weight 1.55 lb (0.7 kg)
