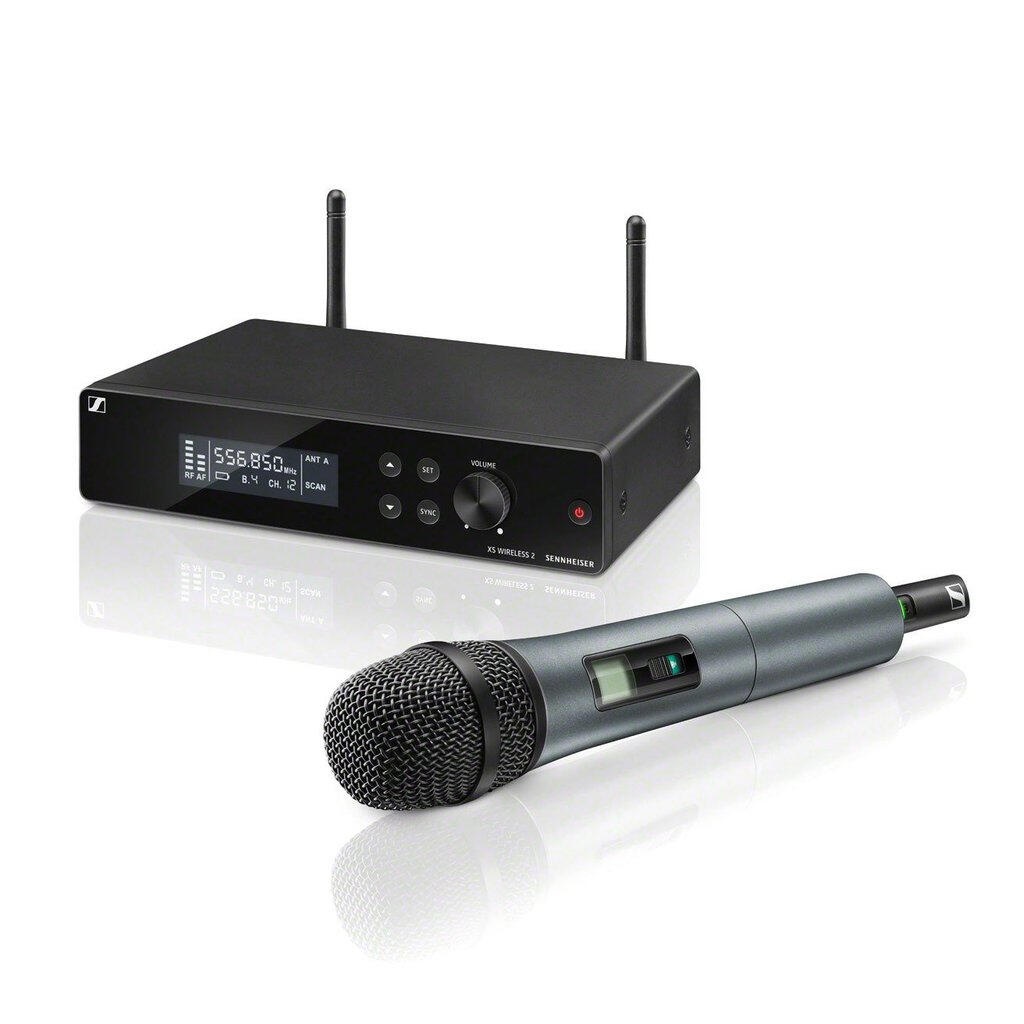

The XSW 2-835 Wireless Handheld Microphone System with e835 Capsule features a true diversity receiver and a handheld transmitter with an intuitive LCD display. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for singers and presenters. The unit has automatic frequency management and synchronization so you don't have to scramble to find an available channel. The transmitter's e835 capsule uses a cardioid polar pattern, which is part of the evolution series and designed for withstanding tougher, live-stage conditions.
In the Box
Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule

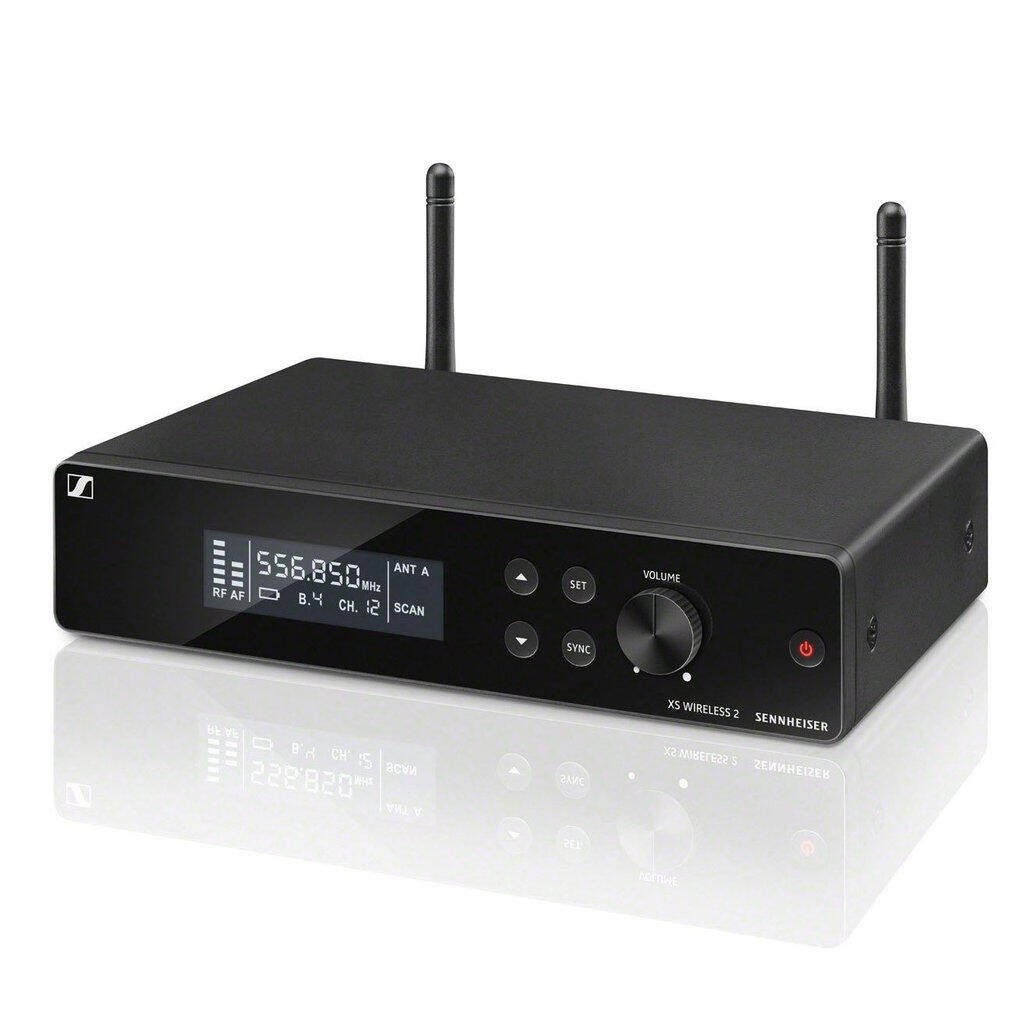

EM-XSW 2 Receiver

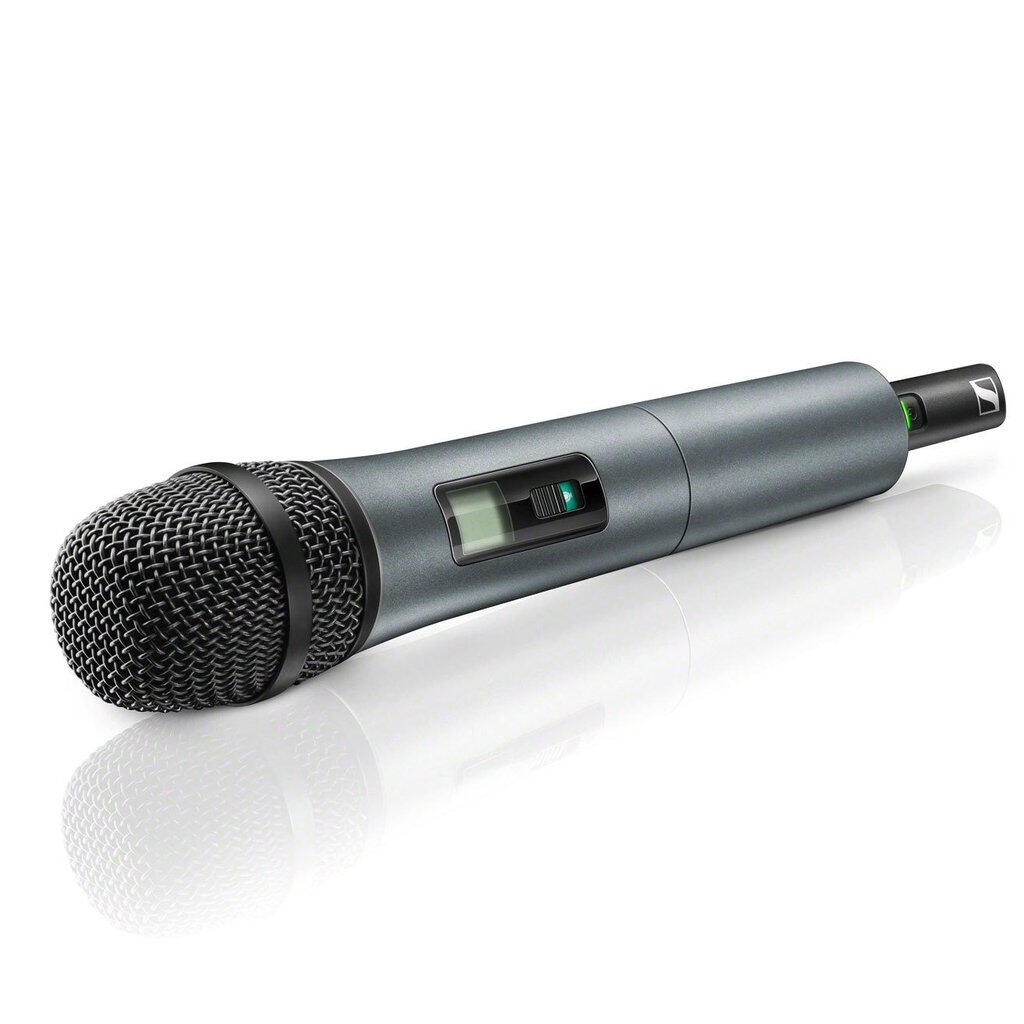

SKM 835-XSW Handheld Transmitter
Sennheiser MZQ1 Microphone Clamp
Power Supply
Rackmount Kit
Protective PouchNot in the Box
XLR Microphone Cable (Not Included)
Microphone Stand (Not Included)As Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
System
- Modulation: Wideband FM
- Frequency ranges
A: 548 to 572 MHz
GB: 606 to 630 MHz
B: 614 to 638 MHz - Switching Bandwidth: Up to 24 MHz
- Frequencies: Adjustable in 25-kHz steps; 8 frequency banks, each with up to 12 factory-preset channels
- Signal to Noise Ratio: ≥ 103 dBA
- Total Harmonic Distortion (THD): ≤ 0.9%
- Temperature Range Operation: 32 to 104°F (0 to +40°C); Storage: -4.0 to 158°F (-20 to +70°C)
- Transmitter Synchronization: 2.4 GHz, low power OQPSK (only active during synchronization)
Receiver
- Principle of Operation: Double superheterodyne
- Diversity Method: True diversity
- Sensitivity: 3 µV at 52 dBA rms S/N at (peak deviation)
- Frequency Response: 50 Hz to 16 kHz (-3 dB)
- Maximum AF Output Voltage: At peak deviation, 1 kHz AF; 1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu; XLR Socket (Balanced): +12 dBuAt peak deviation, 1 kHz AF)
- Adjustment Range: Audio 40 dB, adjustable in 5-dB steps
- Power Supply: Nominal Input: 100 to 240 VAC 50/60 HzInput Current: 200 mA (Max.)Nominal Output: 12 VDC 300 mA
- Squelch: Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone)
- Line/Mic Level: 20 dB, switchable
- Housing Material: Rugged metal housing
- Dimensions (W x H x D): 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
- Weight: 24 oz (680 g)
Transmitter
- RF Output Power: 10 mW
- AF Frequency Response: 80 Hz to 16 kHz
- Power Supply: 2 x AA size batteries, 1.5 V
- Operating Time: Approximately 10 hours
- Microphone Type: Dynamic
- Input Sensitivity: Capsule: 1.5 mV/Pa
- Polar Pattern: Cardioid
- Sensitivity Adjustment: Range: 0 to -30 dB, adjustable in 10-dB steps
- Housing Material: Rugged ABS housing
- Dimensions (L x Diam): 10.2 x 2.0" (260 x 50 mm) approximate
- Weight: 8.6 oz (245 g) approximate
