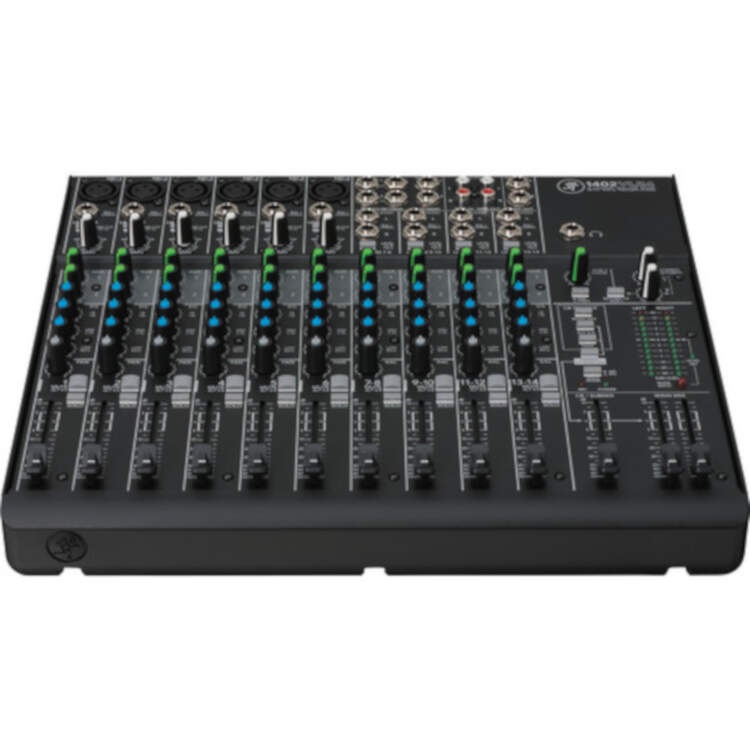

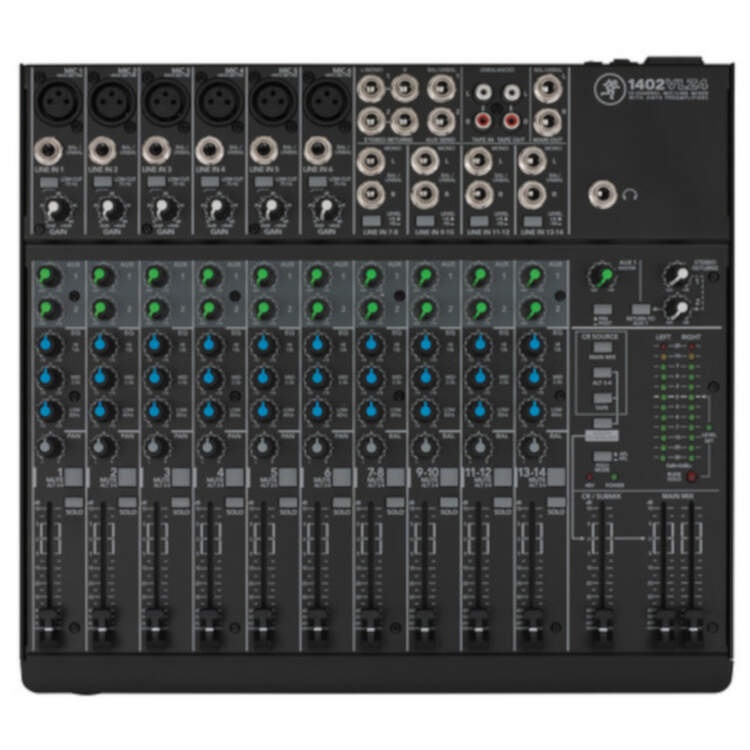

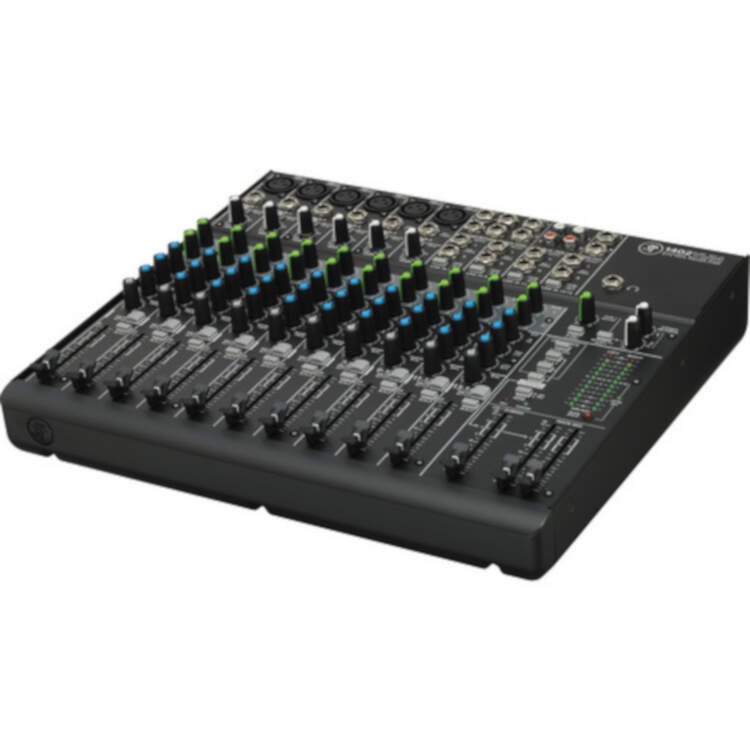

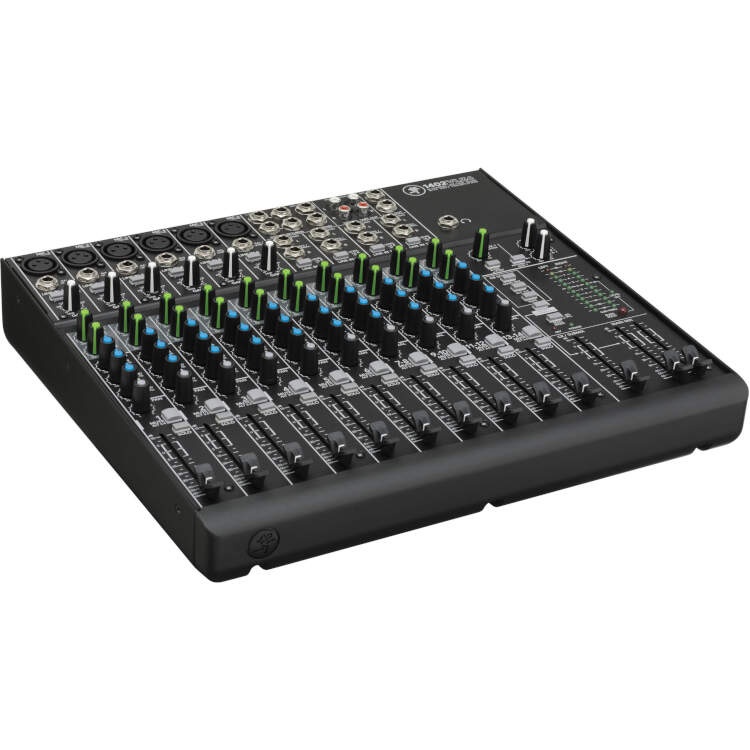

The Mackie 1402VLZ4 14-Channel Compact Mixer features Onyx preamps in a professional compact mixer used for applications that demand flexibility. From every input to every output, the mixer provides the highest headroom and lowest noise for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like a dedicated control room section and smooth, accurate fader control, the 1402VLZ4 14-Channel Compact Mixer is a good choice for anybody who demands a professional performance.
14-Channel mixer featuring signature high-headroom, low-noise design
6 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz)
Improved RF rejection, suitable for broadcast applications
Phantom power for condenser microphones
14 High-headroom line inputs with +4/-10 operation control
3-Band EQ (80 Hz, & 2.5 and 12 kHz)
18 dB/octave 75 Hz low-cut filter on microphone input channels
Two AUX sends, and level, pan, and PFL solo on each channel
60mm long-wearing log-taper faders
Two stereo returns for connecting FX processor or other stereo source
ALT 3/4 stereo bus for added routing flexibility
Control room / phones source matrix
High-resolution 12-segment stereo meters
Sealed rotary controls resist dust and grime
Built-like-a-tank rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
Rack-mountable design using a rack ear kit (sold separately)
Multi-voltage power supply for worldwide use
Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many moreMackie 1402-VLZ4 Specifications:
Noise Main Mix Fader Down, Channel Faders Down: -101 dBu
Main Mix at Unity, Channel Faders Down: -91 dBu (95 dB signal to noise ratio, ref +4 dBu)
Main Mix Fader at Unity, Channel Faders at Unity: -86 dBu
Total Harmonic Distortion (THD) Microphone Pre @ Insert: 0.0007%
Crosstalk / Attenuation Main Mix Fader Down: -100 dBu
Channel Alt / Mute Switch Engaged: -90 dBu
Channel Fader Down: -90 dBu
Frequency Response Microphone Input to Main Output (Gain at Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, 100 kHz
Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain
Common Mode Rejection Ratio Better than -70 dB @ 1 kHz
Maximum Level Microphone In: +22 dBu
Tape In: +16 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu
Impedance Microphone In: 2.5 kΩ
Channel Insert Return: 2.5 kΩ
All Other Inputs: 10 kΩ or greater
Tape Out: 1.1 kΩ
All Other Outputs: 120 Ω
Equalizer High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz
Low Shelving: ±15 dB @ 80 Hz
Power Consumption 25 W, 100 to 120 VAC, 50 to 60 Hz
Operating Temperature 32 to 104°F (0 to 40°C)
Fuse Rating 100 to 120 V: 500 mA slo blo, 5 x 20 mm
220 to 240 V: 250 mA slo blo, 5 x 20 mm
Dimensions (H x W x D)12.5 x 14.0 x 3.2" (317.0 x 356.0 x 81.0 mm)
Weight9.5 lb (4.5 kg)
