Buy commercial sound system bundles online from Singapore's Premier AVL Superstore. Great for cafes, restaurants, offices, homes or anywhere background music is desired.

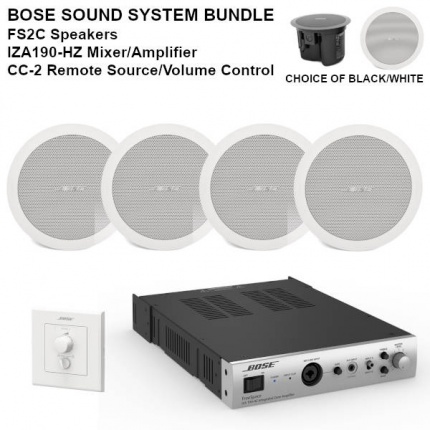

We have curated a fuss-free sound system kit for you, combining the ever-popular Bose Freespace FS2C speakers and all-in-one IZA-190HZ amplifier. We can even supply the hookup diagram when you purchase the bundle from us. All you need is to have the cables run and hook up the speakers according to the simple diagram and you will be in business.
This minimal-fuss installation kit is designed to playback music without meddling with many complicated controls.
This kit is supplied with FS2C-White color unless FS2C-Black is requested and acknowledged by our order team.Package consists of
4 x Bose Professional FreeSpace FS2C In-Ceiling loudspeaker (White/Black)
1 x Bose Professional FreeSpace IZA 190-HZ integrated zone amplifier
1x Bose Professional CC-2 Wall-Mount Volume/Source Control
1x 3.5mm minijack to RCA cable for connection to laptop or music playback
1x Professional speaker cable AWG18, grey jacket, tinned x 30m rollBose Professional FreeSpace FS2C In-Ceiling loudspeaker
The Bose sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation — all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.
- Full-range 2.25-inch transducer, low-frequency range down to 83 Hz, 16-ohm, and 70/100V operation
- Front baffle-mounted tap settings and front-baffle audio connections
- Pick your power — FS2 models feature a 2.25-inch full-range transducer, low frequency down to 83 Hz, 16-ohm and 70/100V operation
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
- Bring quality sound to more places
- Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
- Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signalling systems in life safety applications
FreeSpace IZA 190-HZ integrated zone amplifier
For background/foreground music and paging applications, the Bose® FreeSpace® IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set-up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. When used with FreeSpace FS2 and FS4 loudspeakers, even further sound optimization is possible through onboard selectable EQ presets.
- Amplification for premium sound from a reliable, high-quality Class-D amplifier provides optimized performance and premium sound quality through the use of internal digital signal processing
- Installation made simple with set-up done locally from the front and rear panels of the amplifier—no computer is required
- Opti-voice® paging provides smooth automatic transition between the music and page signals
- End-user friendly front panel allows users to connect devices easily, make tonal adjustments or select between two sources. Optional wall mountable Bose Volume control with A/B switch user interface allows volume and source selection controls to be placed away from the amplifier for user convenience
- Compact, lightweight design enables the FreeSpace integrated zone amplifier to be placed out of the way—on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory
Alternatively, if you want a bundle that is listed on another competitor's site, send us the link via WhatsApp or send us a message with the details and we will make you a competitive offer.All equipment should be set up by a professional installer, and we will not be liable for any improperly installed or equipment damaged due to mishandling or a failure to follow the instructions provided in the installation manual. Service calls for rectifications will follow our standard service call rates.
5-Years warranty applies only to Bose passive speakers. Amplifier & electronics warranty is only 2-years.
Not included - Get in touch with us to arrange a site visit and quote
Cabling and conduit
Height access by M.O.M Approved Scaffold Contractor
Installation, testing & commissioning by W.A.H certified workmen by BizSafe Level 3 contractor.Bose FSC Technical Summary
SINGLE LOUDSPEAKER PERFORMANCE
Frequency Response (-3 dB) (1) 95 – 16,000 Hz
Frequency Range (-10 dB) (1) 83 – 19,000 Hz
Nominal Coverage Angle (1 - 4 kHz) 150°
Nominal Coverage (1 – 10 kHz) 145°
AES transducer test (5) Bose extended-lifecycle test (4)
Power Handling, Long-term Continuous 20 W 16 W
Power Handling, Peak 80 W 64 W
Sensitivity SPL/1W @ 1m (2) 86 dB 86 dB
Calculated Maximum SPL @ 1 m (3) 99 dB 98 dB
Calculated Maximum SPL @ 1 m, Peak 105 dB 104 dB
Loudspeaker EQ
No Bose EQ required when speaker used for general use. Bose EQ Voicing and SmartBass available. EN54-24 Equalization is required for EN54-24 use; refer to FS2P EN54-24 Certified ratings
document on pro.bose.com for details.
Recommended High-Pass Protection 85 Hz with minimum 24-dB/octave filter
Transformer taps 70V: 1, 2, 4, 8, 16 W, bypass
100V: 2, 4, 8, 16 W, bypass
TRANSDUCERS
Full-Range Driver 1 x 2.25-inch woofer (57 mm)
Nominal Impedance 16 ohms (transformer bypass) of 86 dB SPL / 1 W @ 1 m.
Footnotes
(1) Frequency response and range measured on-axis in half-space environment with recommended EQ
(2) Sensitivity measured on-axis in half-space environment averaged 100 Hz – 10 kHz using recommended high-pass protection
(3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
(4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
(5) AES standard 2-hour duration with IEC system noise
(6) Measured in whole-space environment
PHYSICAL
Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
Grille Perforated steel, powder-coated finish
Logo Rotatable, removable
Color Black (similar to Ral 9005), White (similar to Ral 9003)
Environmental Indoor only, suitable for use in plenum locations
Safety Agency Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for
Speakers for Fire Alarm and Signaling Systems, in compliance with UL 2043 for plenum-space installation. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32
For EN54-24 specifications, refer to FS2C EN 54-24 Certified Ratings document on pro.bose.com.
EN54-24 equalization required for EN54-24 use.
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Connectors Euroblock 6-pin connector with loop-through, front-baffle mounted
Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
Wire/Conduit Entry Top and side wire entry-point 12.7 mm (1/2 in) knockouts allow for 9.5 mm (3/8 in)
conduit and fittings
Suspension/Mounting Two (2) standard mounting arms plus one (1) safety cable tab
Maximum Ceiling Thickness 38 mm (1.5 in)
Product Dimensions (Baffle Diameter × Depth) 182 × 132 mm (7.2 x 5.2 in)
Backcan Dimensions (Diameter × Depth) 127 × 125 mm (5.0 x 4.9 in)
Ceiling Cutout 160 mm (6.3 in)
Net Weight, Loudspeaker with Grille (Single) 1.63 kg (3.6 lb)
Shipping Weight (Pair) 4.4 kg (9.7 lb)
Included Accessories Each FS2C includes one (1) cutout template per box
Optional Accessories Adjustable Tile Bridge (6-pack), DesignMax DM2CRI Rough-in kit (6-pack), Retrofit Kit (2-pack), Ceramic terminal w/ Fuse kit
PRODUCT CODES
841153-0310 FREESPACE FS2C PAIR BLK
841153-0410 FREESPACE FS2C PAIR WHT---
FreeSpace IZA 190-HZ integrated zone amplifier
Amplifier Power
1 x 90W @ 70/100V
Frequency Response
60 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)THD+N
≤1 % (at full rated power)Dynamic Range
88 dBBuilt-in Loudspeaker EQ
Bose FreeSpace FS2 or FS4, HPF only
Input Channels
Mic/Line Inputs: 1 Balanced mic/line
Line Inputs: 2 Unbalanced line
Page Inputs: 1 Balanced mic
Auxiliary Input: 1 Unbalanced line
