Shure GLXD24R/BETA58 Digital Wireless Handheld Microphone System
DESCRIPTION

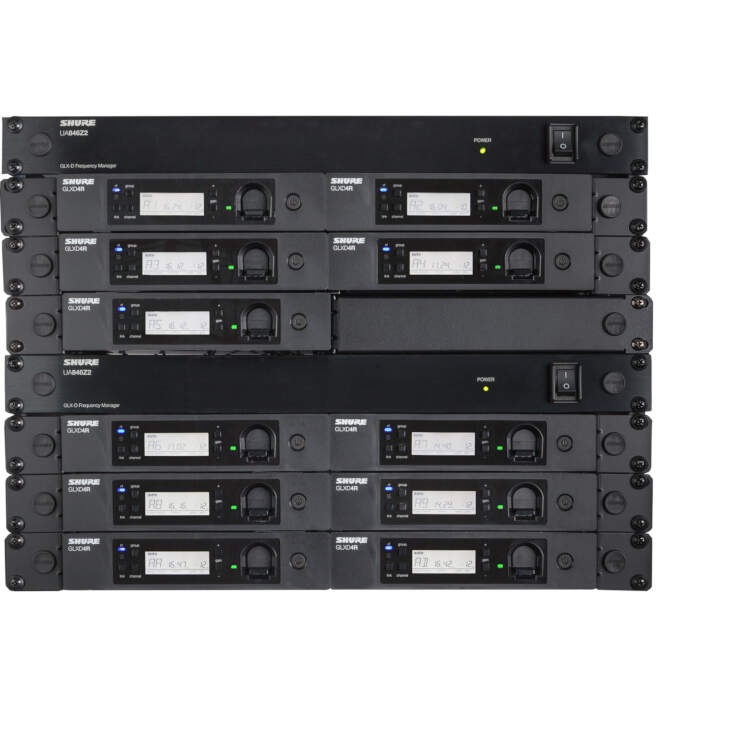

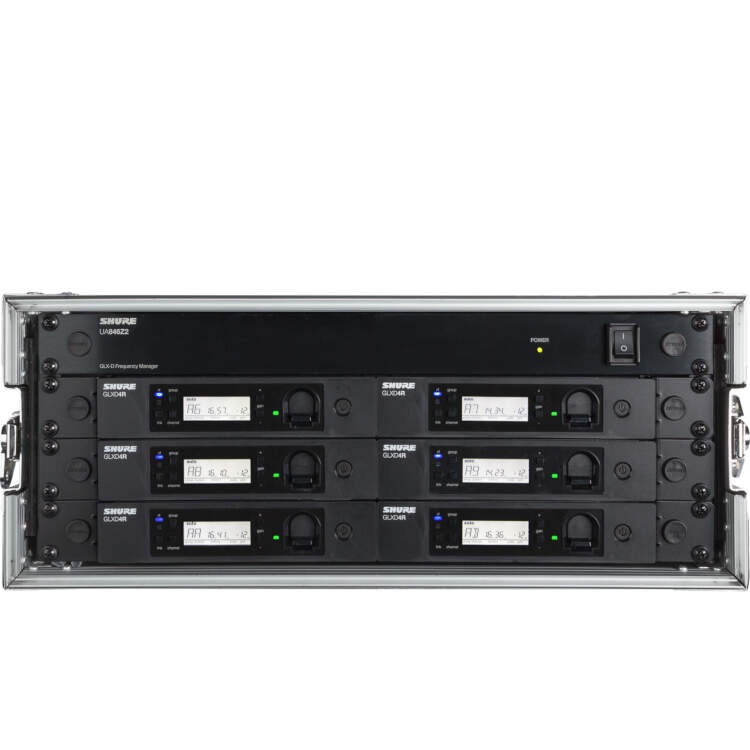

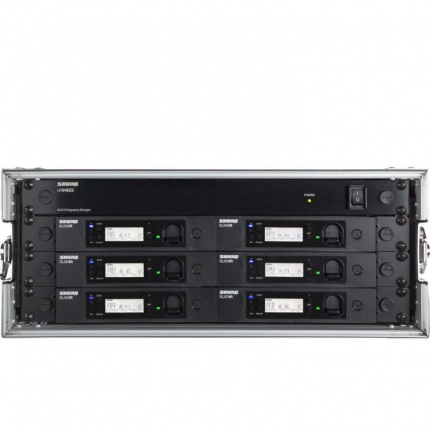

The GLX-D Advanced Digital Wireless Vocal System features intelligent battery rechargeability, and the precision-engineered Beta58A vocal microphone capsule optimized for lead vocal performance and the GLXD4R metal rack mount receiver. For use with GLX-D Advanced Frequency Managers, providing robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation.GLXD24R/B58 provides intelligent battery rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The precision-engineered BETA 58A vocal microphone capsule is optimized for lead vocal performance. For use with GLX-D® Advanced Frequency Managers (UA846Z2).
Includes GLXD4R rack mount receiver, GLXD2/BETA58 handheld transmitter with integrated BETA 58A supercardioid dynamic microphone capsule, microphone clip, SB902 rechargeable lithium-ion battery, USB charge cable, 2 detachable antennas, rack mount hardware, and user guide.
FEATURES

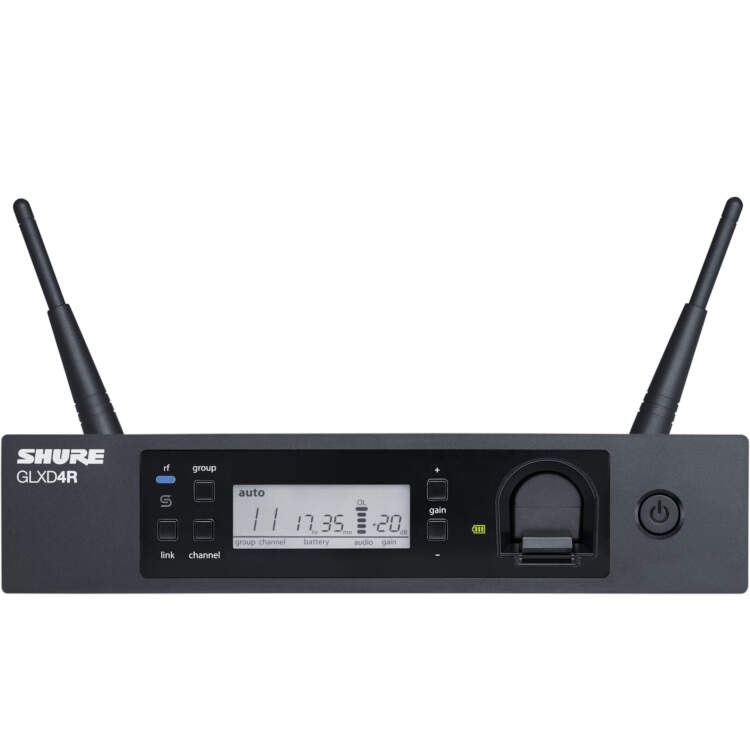

GLXD4R Rack Mount Receiver for GLX-D Advanced Digital Wireless SystemsIntegrated battery charge port for intelligent Shure lithium‐ion transmitter batteries, two‐color charge indicator LED
Detachable antennas for remote mounting
Remote adjustable transmitter gain control
Hi‐res LCD screen status display
XLR and ¼ʺ output connectors
Rugged metal chassis design

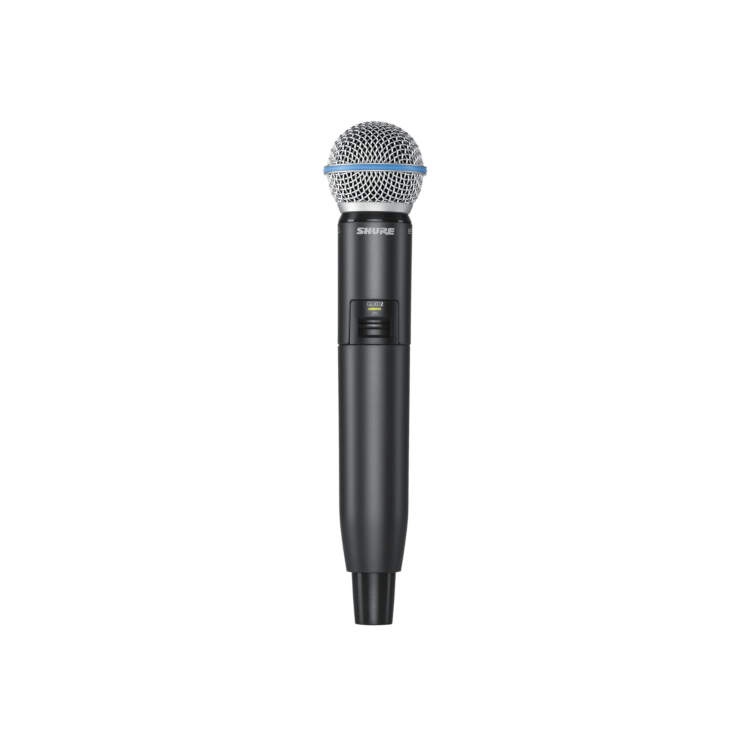

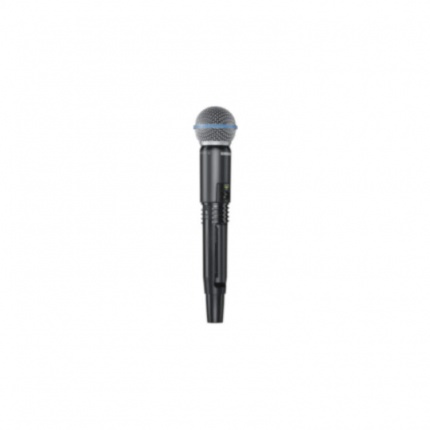

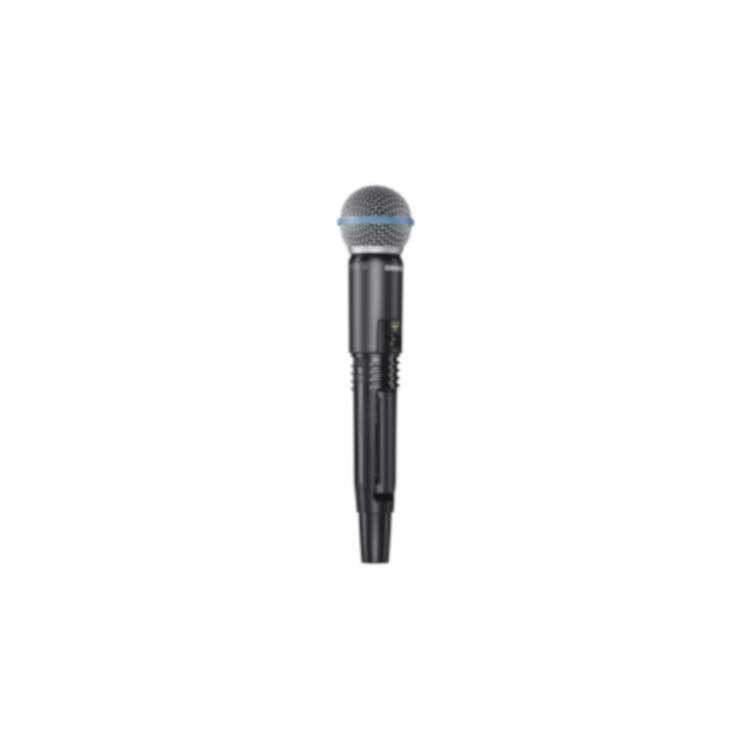

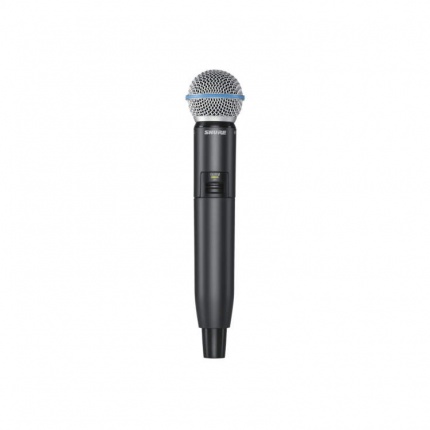

Included rack mount hardwareGLXD2/B58 Digital handheld transmitter with Beta 58A Capsule
Automatically links with GLX-D wireless receivers for seamless frequency changing and any necessary gain adjustment
Integrated microphone capsule design
Sophisticated design with durable, lightweight construction
Operating range of 20-30 m under typical conditions
Two-color transmitter status indicator LED
The Digital Wireless Transmitter provides Shure Digital Power Management with multiple charging solutions such as car-, wall- or USB-chargers (GLXD4: In-receiver charger)
Custom lithium ion batteries provide up to 16 hours of continuous transmitter use.
Connect for a 15-minute quick charge and count on up to 1.5 hours of performance.GLX-D4R Receiver
Configuration XLR Output: Balanced1/4" / 6.35 mm Output: Impedance balanced
Impedance XLR Output: 100 Ohms1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced)
Full Scale Output XLR Connector:Line Setting: +18 dBVMic Setting: -12 dBV1/4" / 6.35 mm Output: +12 dBV

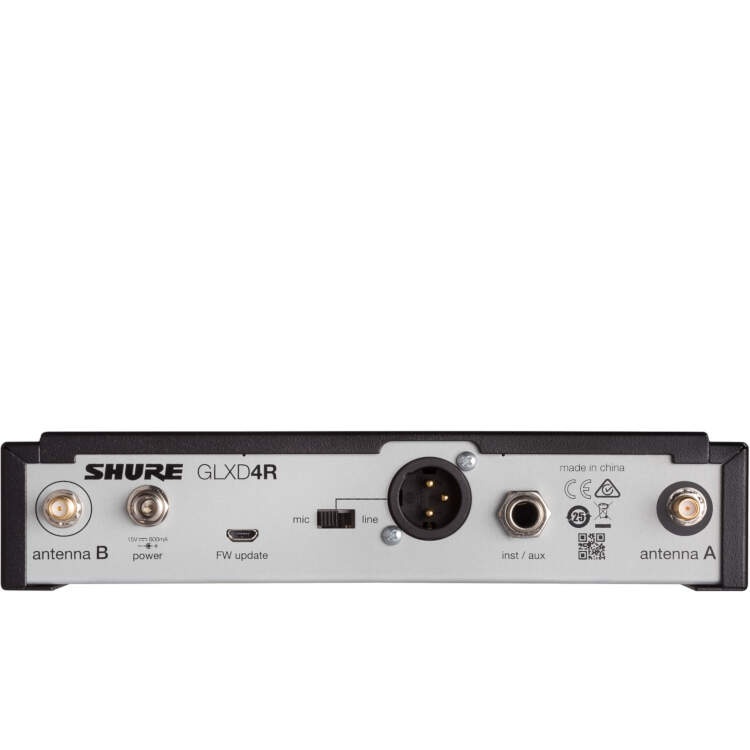

Pin Assignments XLR Output: 1=ground, 2=hot, 3=cold1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground
Mic/Line Switch 30 dB pad
Spurious Rejection >35 dB, typical
Gain Range -18 to 42 dB in 1 dB steps
Phantom Power Protection YesGLX-D2 Transmitter
RF Power Output 10 mW E.I.R.P, maximum
Maximum Input Level 147 dB SPL
Power Requirement 3.7 V Rechargeable Li-Ion
Battery Life Up to 16 hours
Operating Range Indoors: Up to 100' (30 m) typical, with a maximum of 200' (60m)Outdoors: Up to 65' (20 m) typical, with a maximum of 165' (50 m)
Housing Molded plastic
Dimensions Body Length: 9.9" (252 mm)Body Width: 1.5" (37 mm)Capsule Width: 2" (51 mm)
Weight 221 g without batteriesBETA 58A Microphone
Type Dynamic (Moving Coil)
Frequency Response 50 Hz to 16 kHz
Polar Pattern Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
Output Level Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) *1 Pa = 94 dB SPLfrequency range:2.4GHz (2050-2700 MHz)
