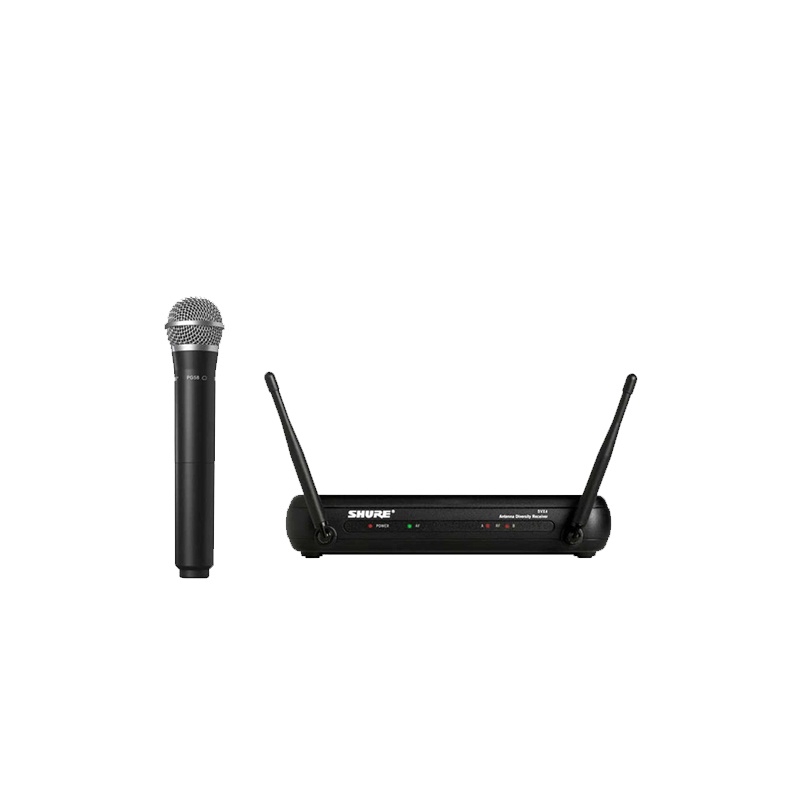

Shure SVX24/PG58 Handheld Wireless System
DESCRIPTION
Includes SVX4 Diversity Receiver, and SVX2 Handheld Microphone Transmitter with PG58 Microphone
FEATURES
PG58 with SVX2 Wireless handheld Transmitter
RF Level Switch between 1mW and 10mW
2 “AA” batteries
Up to 10 hours of battery life
Bottom on/off switch design
Anti-rolling ring on grille for PG28
Power and battery status LED
6 color rings for microphone identification
Transmitter Type: Handheld
Dimensions: 254 mm X 51 mm diameter
RF Output Power: 1
Battery, endurance: 10 h
Weight: 270 g
Audio Input Level: –20 dBV maximum
Input Impedance: 22 kΩ
RF Output (dependent on applicable country regulations):RF Output (dependent on applicable country regulations):
HI power mode: 10 mW maximum
LO power mode: 1 mW maximum
SVX 4 Receiver
Up to 8 selectable channels
Up to 4 compatible systems
Antenna Switching Diversity
Adjustable Squelch Level
Mic / Line Switch
2 Audio Output:
1/4" Connector
XLR Connector
Available with Handheld and Lavalier system packages
Frequency Range:
G15 (505–518 MHz)
H14 (541–553 MHz)
J9 (558–570 MHz)
