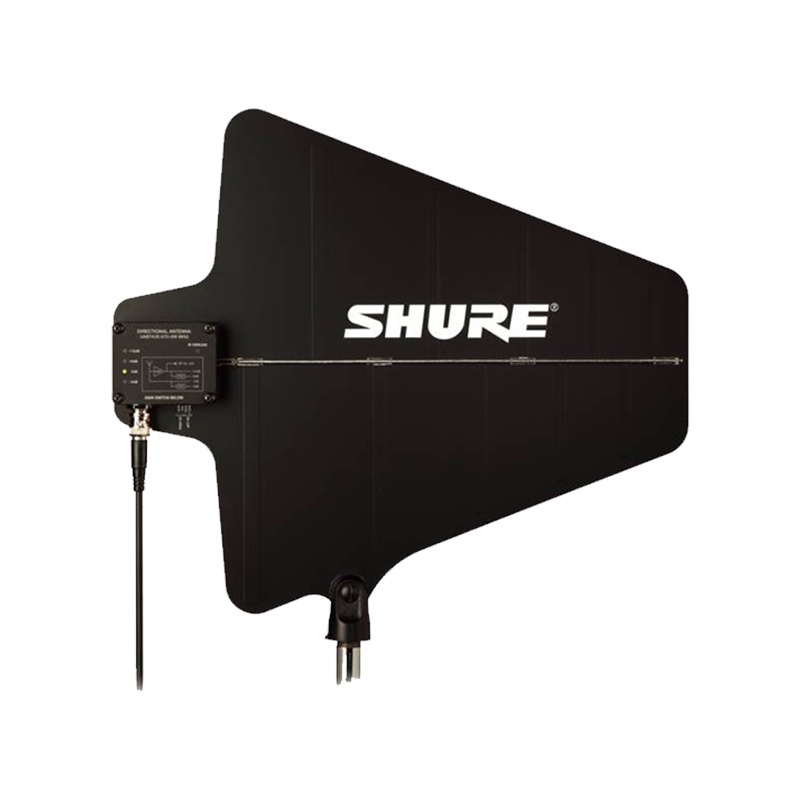

Shure UA874WB Active Directional Antenna (pair)
DESCRIPTION
Active directional UHF and VHF antenna delivers improved wireless signal reception with integrated amplification. Features include greater rejection of RF signals outside the coverage area and an integrated amplifier with 4 gain settings.
UA874 uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas. An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.
The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.
FEATURES
UA874WB = 470 - 900 MHz
UA874WB:
Connector Type: BNC, Female
Impedance: 50 ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
Reception Pattern: 70 degrees
Third-order Intercept Point: >30 dBm
Antenna Gain (On Axis): 7.5 dBi
Signal Gain +/- 1dB: Switchable
Active: +12 dB, +6 dB
Passive: 0 dB, -6 dB
RF Overload LED Threshold: -5 dBm
