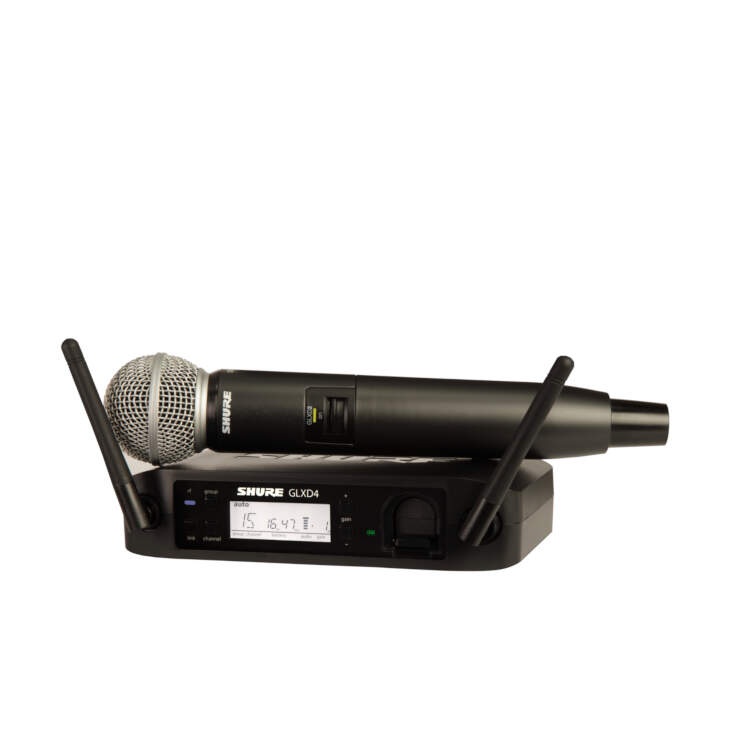

Shure GLXD24/SM58 Digital Wireless Handheld Microphone System
DESCRIPTION
Digital wireless microphone system provides intelligent technology and convenient rechargeable power options for musicians who run their own sound. Features include operation of up to 8 systems and LINKFREQ Automatic Frequency Management.The Beta 58A dynamic vocal microphone is precision-engineered for live performance and project studio recording. A tailored frequency response accentuates vocals, and the supercardioid pattern isolates from other sound sources. It combines automatic frequency management with true digital diversity for a rock-solid wireless signal with exceptional digital audio clarity.
FEATURES
Available Transmitter Form factors: Handheld
Operating range (up to): 20-30 m (Under typical conditions)GLXD4 Digital Wireless Receiver
Operates globally license-free in the 2.4GHz spectrum
Allows operation of up to 8 compatible systems (depending on operation mode)
LINKFREQ quickly identifies the best open channels and enables the transmitter to automatically follow any frequency change on the receiver without signal interruption by automatically and seamlessly switching to backup frequencies.

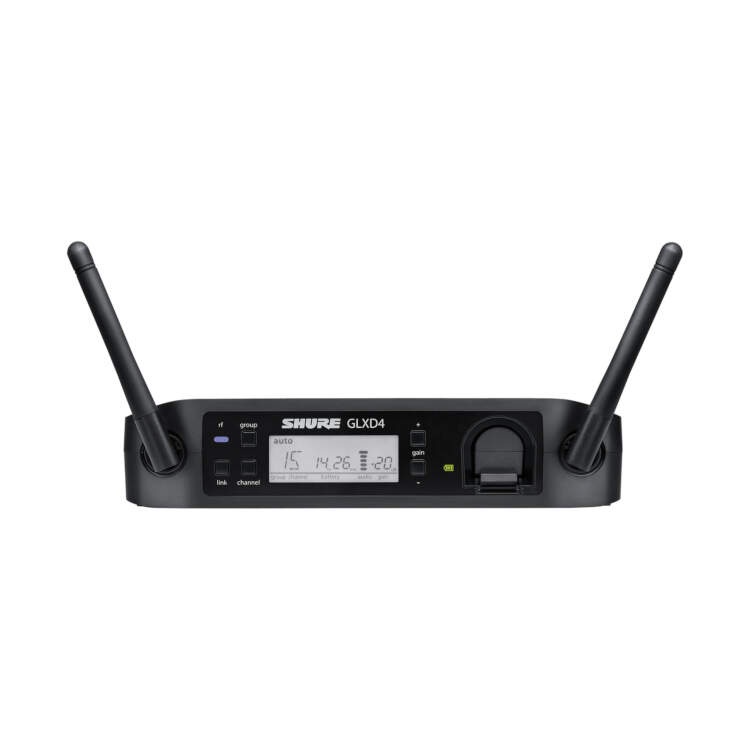

Hi-resolution LC display
Transmitter battery status monitor in hours and minutes
Identifies Transmitter from Receiver and vice versa
Remote adjustable transmitter gain control
20 Hz to 20 kHz
120 dB dynamic range
24 bit
Real-time battery run-time displayed in hours and minutes (accurate within +/- 15 minutes)

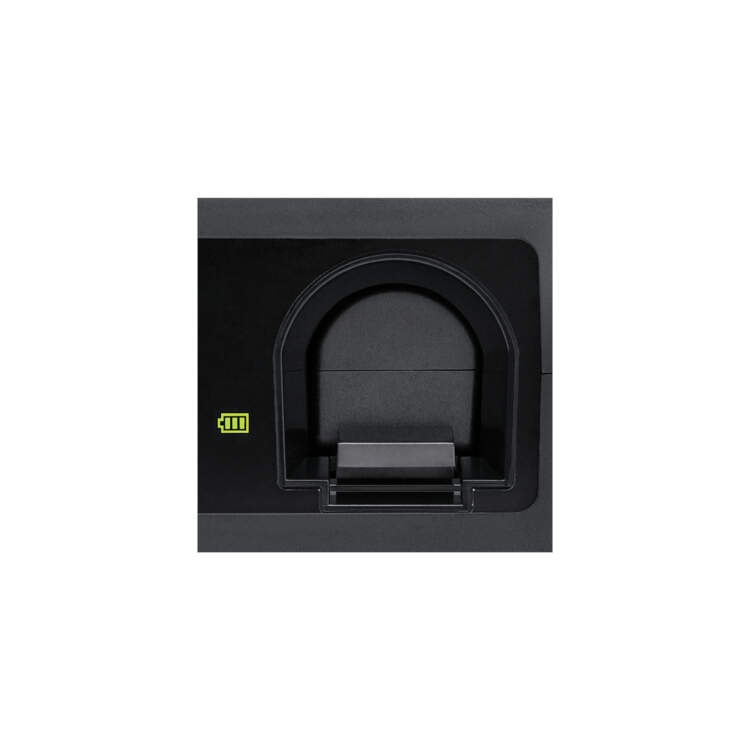

Integrated battery charge port for proprietary Shure Lithium-Ion transmitter batteries
XLR and ¼“ output connectors
Custom lithium ion batteries provide up to 16 hours of continuous transmitter use.
3 hour charge = up to 16 hours use
1 hour charge = up to 6 hours use
30 minute charge = up to 3 hours use
15 minute charge = up to 1.5 hours use

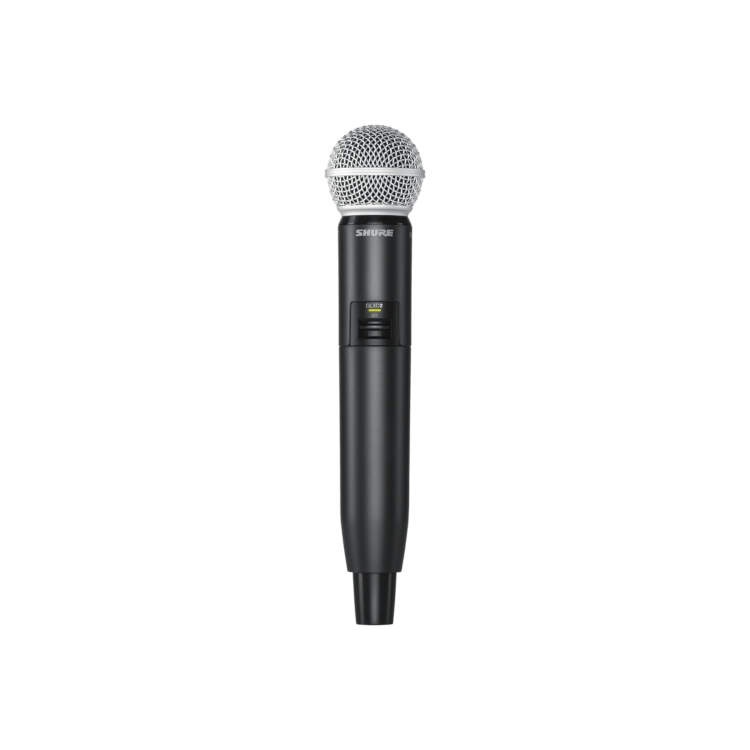

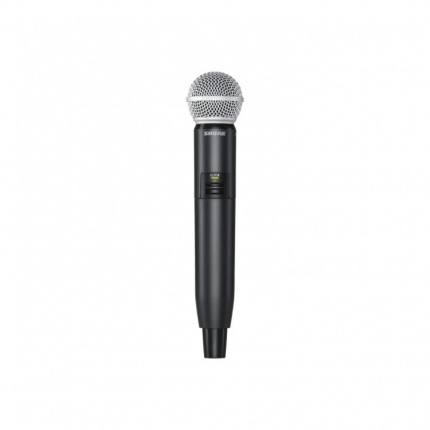

Accurate battery metering in hours / minutes (+/- 15 minutes) displayed on LED screen (GLXD4 only)GLXD2/SM58 Digital handheld transmitter with SM58 Capsule
Automatically links with GLX-D wireless receivers for seamless frequency changing and any necessary gain adjustment
Integrated microphone capsule design
Automatically links with GLX-D wireless receivers for seamless frequency changing
Sophisticated design with durable, lightweight construction
Operating range of 20-30 m under typical conditions
Lightweight and rugged construction
Two-color transmitter status indicator LED
The Digital Wireless Transmitter provides Shure Digital Power Management with multiple charging solutions such as car-, wall- or USB-chargers (GLXD4: In-receiver charger)
Custom lithium ion batteries provide up to 16 hours of continuous transmitter use.
Connect for a 15-minute quick charge and count on up to 1.5 hours of performance.GLXD24/SM58:

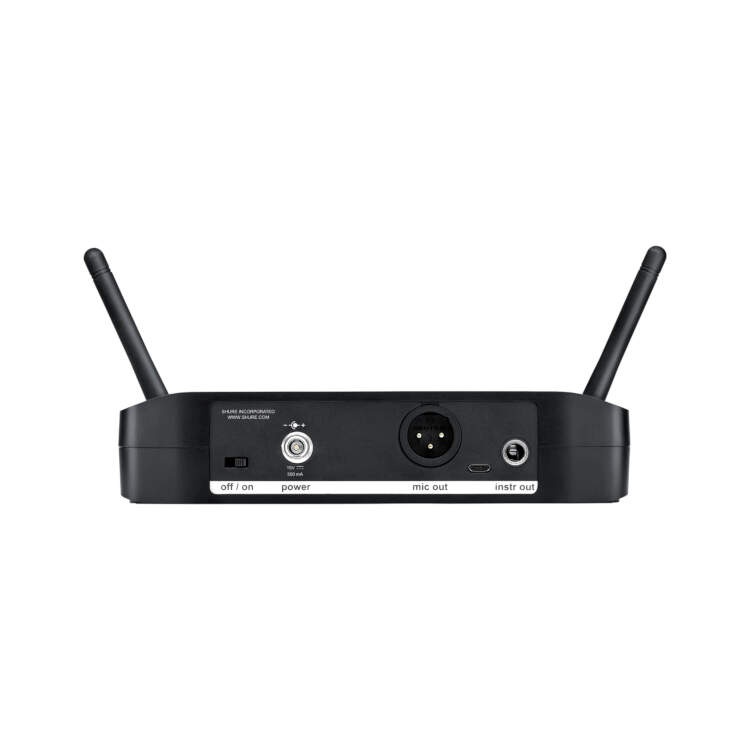

Outputs 1x XLR Output1x 1/4" (6.35 mm) Output
Output Impedance XLR: 100 Ω1/4": 100 Ω, 50 Ω unbalanced
Maximum Audio Output Level Analog XLR: 1 dBV (into 600 Ω load)1/4": 8.5 dBV (into 3 kΩ load)
Tuning Frequency Range 2400 to 2483.5 MHz
Range of Operation 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference)
Transmit Mode Frequency Hopping
Frequency Response 20 Hz to 20 kHz
Dynamic Range 120 dB, A-weighted
RF Sensitivity -88 dBm, typical
Total Harmonic Distortion 0.2%, typical
RF Output 10 mW E.I.R.P., maximum
Operating Temperature Range 0° to 135°F (-18° to 57°C)
Storage Temperature Range -20° to 165°F (-29° to 74°C)
Pin Configuration XLR: 1= ground, 2= hot, 3=cold1/4": Tip= audio, ring= no audio, sleeve= ground
Antenna Impedance: 50 ΩType: 1/2 wave sleeve dipole, non-removableMax Input Level: -20 dBm
Power Requirements 14 to 18 V DC (tip positive with respect to ring), 550 mA
Spurious Rejection >35 dB, typical
Gain Adjustment Range -20 to 40 dB in 1 dB steps
Phantom Power Protection Yes
Housing Molded plastic
Dimensions (HxWxD) 40 x 183 x 117 mm
Weight 286 gFrequency Range:2.4GHz (2050-2700 MHz)
