Shure GLXD16 Guitar Pedal Wireless System
DESCRIPTION
Precision-engineered wireless system for guitarists and bassists with digital pedal board receiver that combines automatic frequency management with true digital diversity for a rock-solid wireless signal and exceptional digital audio clarity. The pedal board receiver also features a fantastic integrated strobe tuner.
Revolutionary Shure GLX-D® Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.

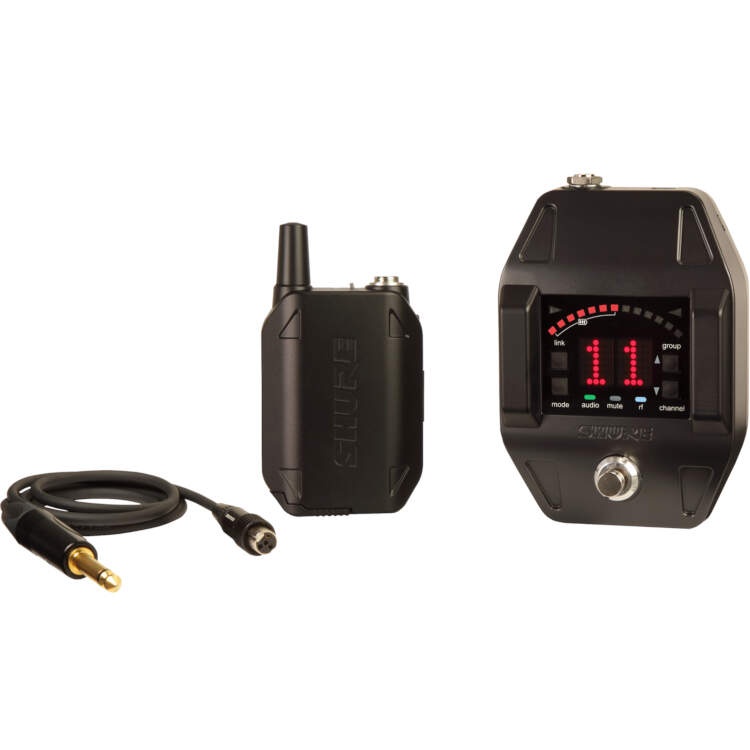

Includes GLXD6 guitar pedal receiver, GLXD1 bodypack transmitter, guitar cable, rechargeable battery, power supply, wall battery charger, and user guide.
FEATURES
Available Transmitter Form factors: Bodypack
Operating range (up to): 20-30 m (Under typical conditions)GLXD6 Digital Wireless Receiver
Pedal Receiver
Strobe and meter tuning options – tune while mute or live
Operates globally license-free in the 2.4GHz spectrum
Allows operation of up to 8 compatible systems (depending on operation mode)
Hi-resolution LED display
20 Hz to 20 kHz
120 dB dynamic range
24 bit LINKFREQ quickly identifies the best open channels and enables the transmitter to automatically follow any frequency change on the receiver without signal interruption by automatically and seamlessly switching to backup frequencies.GLXD1 Digital Wireless Bodypack Transmitter
Automatically links with GLX-D wireless receivers for seamless frequency changing
Sophisticated design with durable, lightweight construction
Up to 16 hours of continuous use with Shure proprietary Lithium-Ion rechargeable batteries
Operating range of 20-30 m under typical conditions
All-metal construction
Two-color transmitter status indicator LED
Provides Shure Digital Power Management with multiple charging solutions such as car-, wall- or USB-chargers (GLXD4: In-receiver charger)
Connect for a 15-minute quick charge and count on up to 1.5 hours of performance.MULTIPLE RECHARGEABILITY OPTIONS:
Charge battery alone:
GLXD4 integrated charge port
SB902 GLX-D Lithium-ion battery (available separately)
Charge a spare battery while system is in use:
SBC902 USB battery dock charger (available separately)
Charge battery in-transmitter:USB charge cable (included)
SBC10-USB USB wall charger (available separately)
SBC-CAR USB car charger (available separately)ALSO IN THE BOX
1 - SB902 LITHIUM-ION RECHARGEABLE BATTERY
1 - WA305 Instrument cable
1 - PS24 power supply
1 - 95E16526 Carrying case

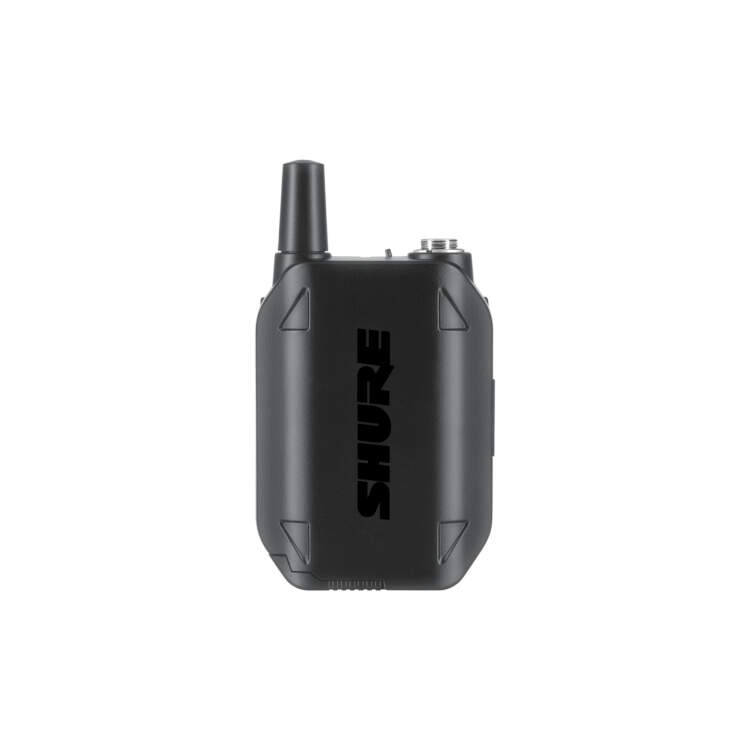

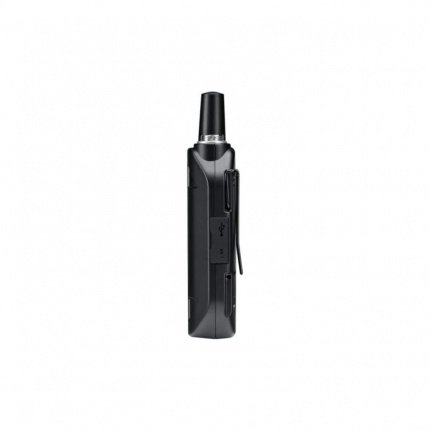

1 - 95A21651 USB cableGLXD1 Transmitter:

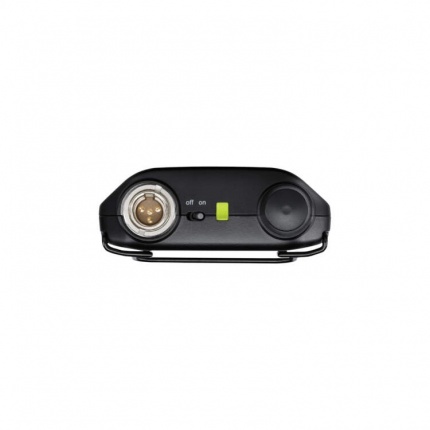

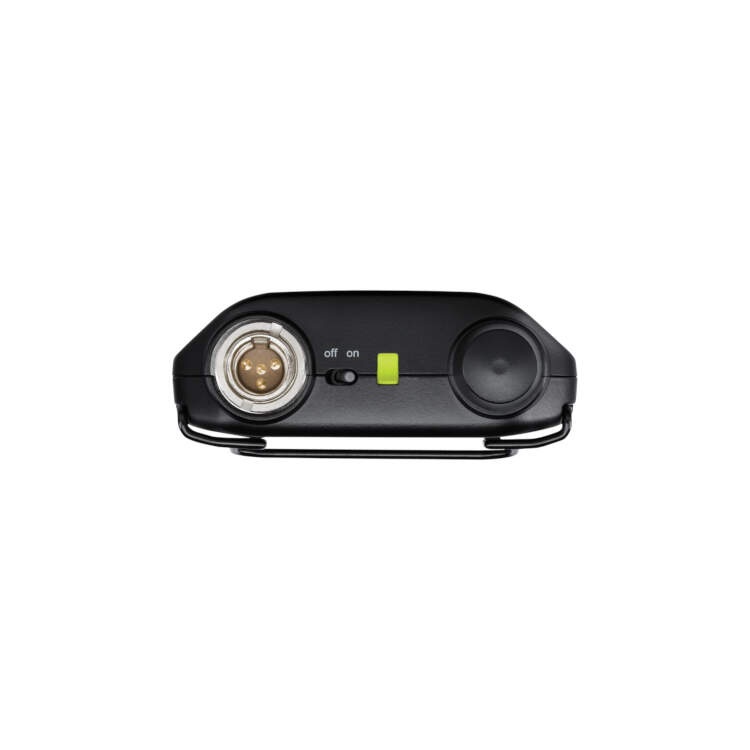

Connector 1x Unbalanced 4-pin TA4M male mini-connector
Tuning Frequency Range 2400 to 2483.5 MHz
Range of Operation 200' (60 m) (typical, depends on RF signal absorption, reflection, and interference)
Transmit Mode Frequency Hopping
Frequency Response 20 Hz to 20 kHz
Dynamic Range 120 dB, A-weighted
RF Sensitivity -88 dBm, typical
Total Harmonic Distortion 0.2%, typical
RF Output 10 mW E.I.R.P, maximum
Operating Temperature Range 0° to 135°F (-18° to 57°C)
Storage Temperature Range -20° to 165°F (-29° to 74°C)
Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output
Battery Life Up to 16 hours
Power Requirements 3.7 V Rechargeable Li-Ion
Input Impedance 900 kΩ
RF Output 10 mW E.I.R.P. maximum
Maximum Input Level 1 kHz at 1% THD8.4 dBV (7.5 Vp-p)
Antenna Internal Monopole
Pin Configuration 1: ground (cable shield)2: +5 V bias3: Audio4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
Housing Cast Metal
Dimensions (H x W x D) 3.56 x 2.54 x 0.90" (90.4 x 64.5 x 22.9 mm), without antennaFrequency Range: 2.4GHz (2050-2700 MHz)
GLX-D6 Receiver:
Configuration XLR Output: Balanced1/4" / 6.35 mm Output: Impedance balanced
Transmission Digital on 2.4 GHz
RF sensitivity -88dBm, for 12dB SINAD, typical
Antenna Input Impedance 50 Ohms
Power Requirements Connect DC power supply (9 to 15 V DC, 250)
Spurious Rejection 35 dB, typical
Tuning Range 2400 MHz
Phantom Power Protection Yes
Dimensions & Weight 46 x 95 133mm / 504 grams
