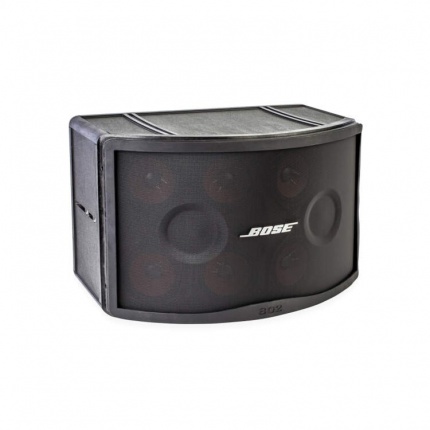

The Bose Professional Panaray 802 Series V is a passive, weather-resistant loudspeaker designed for many indoor or outdoor installed sound-reinforcement applications including auditoriums, gymnasiums, restaurants, bars, fitness clubs, theme parks, houses of worship, and outdoor event venues.Designed with an articulated array, the Panaray 802 utilizes eight 4.5" full-range drivers to deliver a wide coverage angle (120 x 100°) with a frequency range of 52 Hz to 15 kHz at an impressive 122 dB peak SPL output. The use of full-range drivers eliminates the need for tweeters and crossovers adding to the speaker's overall reliability and vocal clarity.The enclosure is made from mineral-reinforced HDPE with a powder coated steel grille. Two Neutrik NL4 connectors are wired in parallel, while eight M8 threaded inserts have been installed for easy fly rig deployment and installation.
FEATURES
- Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity.
8x Bose 4.5-inch full-range drivers for legendary reliability - 120° x 100° Articulated Array® design covers a very wide area, which can reduce the number of loudspeakers required
- 52 Hz - 15 kHz Frequency Range eliminates need for subwoofers for moderate full-range music levels
- 123 dB Peak SPL for sound-reinforcement and foreground music
- Rugged, lightweight enclosure with threaded inserts for easy installations
- Weather-Rated Design for indoor or outdoor installations
- Requires Active Equalization
- Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity.
Technical Summary
Frequency Range (-10 dB)
52 Hz - 15 kHzNominal Coverage Pattern (H x V)
120° H x 100° VLong-Term Power Handling
Bose extended-lifecycle test⁴: 240 W
AES transducer test⁵: 300 WPower Handling, Peak
Bose extended-lifecycle test⁴: 960 W
AES transducer test⁵: 1200 WSensitivity (SPL / 1 W @ 1 m)
92 dB SPLCalculated Maximum SPL @ 1 m
Bose extended-lifecycle test⁴: 116 dB SPL
AES transducer test⁵: 117 dBCalculated Maximum SPL @ 1 m, peak
Bose extended-lifecycle test⁴: 122 dB
AES transducer test⁵: 123 dBNominal Impedance
8 Ω
