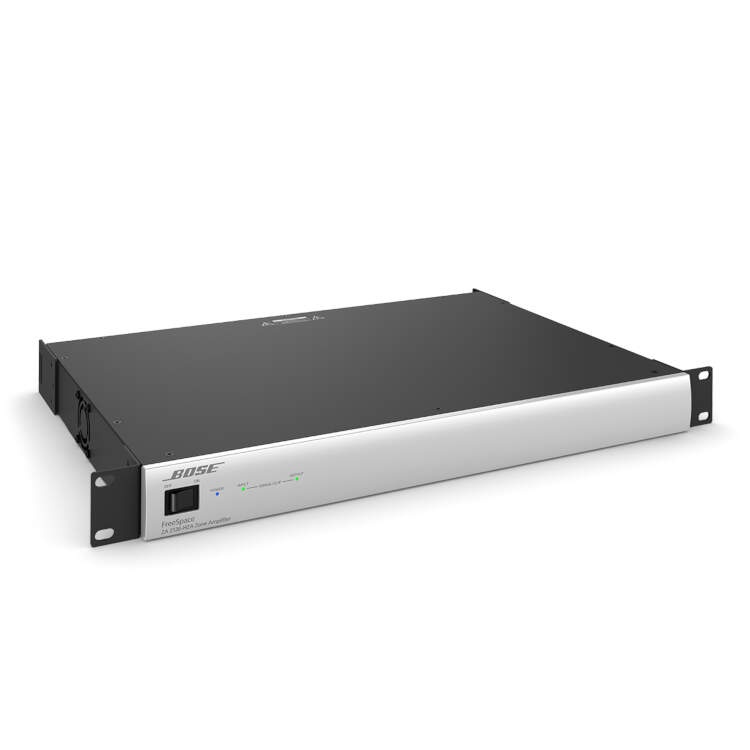

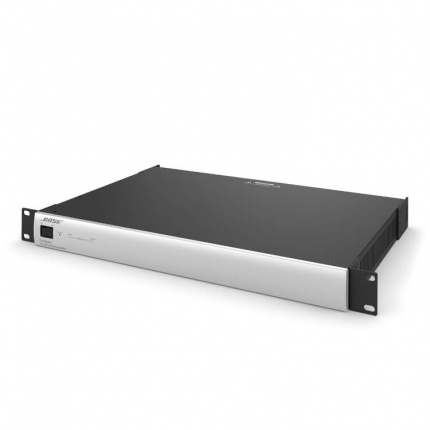

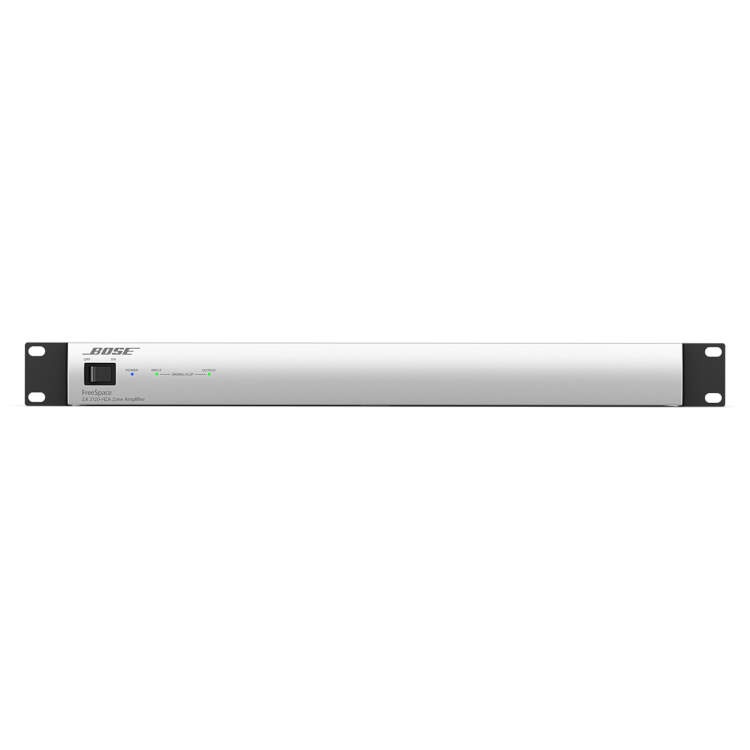

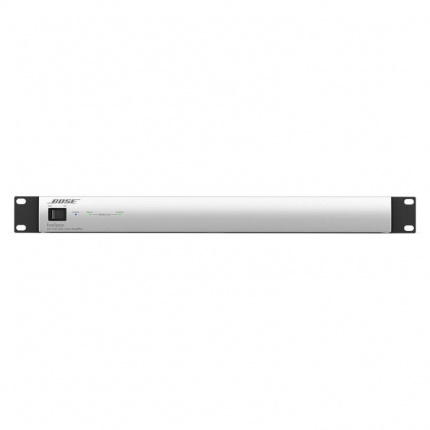

Bhe Bose® FreeSpace® ZA 2120-HZA zone amplifier is designed to provide basic amplification and sound system expansion when using front-end Bose products such as FreeSpace® integrated zone amplifiers and ControlSpace® engineered sound processors. With the inclusion of AmpLink, up to 8 digital audio channels can be sent to the amp from a Bose DSP via a shielded CAT 5 cable.
FEATURES
Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applicationsAmpLink transports up to 8 uncompressed, near zero latency, digital audio channels between Bose DSPs and the ZA 2120-HZA via shielded CAT 5 cable. The amp also supports a THRU path for daisy-chaining digital audio to other Bose AmpLink products at a distance of up to 10 m between products
Dual Remotes support optional volume adjustment for -independent, or combined, zone control which eliminates the need for bulky, -inefficient, and sound-altering 70/100V in-line volume controls
Expansion-ready connectivity with FreeSpace® IZA amplifiers and ControlSpace® engineered sound processors when additional sources and loudspeaker processing is required
Intuitive feature setup enables the amplifier to be configured without a PC for remote, input, output and automatic standby options
Auto-Standby feature allows the amplifier to consume less power when not in useRemote muting allows the amplifier to be muted via a centralized control system
Bose Professional FreeSpace ZA 2120-HZA Zone Amplifier | Buy Bose Professional gear from us and feel assured with our 1-to-1 replacement warranty. (Replacement may be a refurbished unit, or brand new unit depending on availability and assessment)
Technical Summary
THD+N
≤ 0.3 % (at rated power)Amplifier Power
2 x 120 W @ 70/100VFrequency Response
55 Hz - 20 kHz (+0/–3 dB, @ 1 W reference 1 kHz)Dynamic Range
88 dBInput Channels
Analog: 1 unbalanced, 1 balanced
AmpLink: 8 digital
