Klark Teknik DN32-DANTE Audinate Dante Expansion Module with up to 32 Bidirectional Channels

DN32-DANTE | Buy Klark Teknik direct from Singapore's Authorized Distributor for warranty assurance.

Audinate Dante Expansion Module with up to 32 Bidirectional Channels for the Behringer X32 or Midas M32

The DN32-DANTE expansion card provides up to 32 channels of bidirectional, networked audio to your MIDAS M32 or BEHRINGER X32 mixing console for seamless integration with Dante enabled IP networks. Based on information technology standards, Dante provides uncompressed, multichannel digital media networking, with low latency and synchronisation. By focusing on flexible interoperability on an existing IP network infrastructure, Dante has been widely accepted and adopted by many pro audio manufacturers.

Connectivity and Redundancy
DN32-DANTE features two Gigabit Ethernet ports connected through an internal switch. This allows the simultaneous merging of Ethernet remote control data for your console with bidirectional multichannel audio streams on the same cable.

When both the primary and secondary interfaces are connected, the secondary serves as a redundant connection, and is automatically activated should the primary connection become unavailable. Please note that Dante runs Gigabit or 100 MBit/s network infrastructure and requires QoS capable switches. For a list of compatible switches, visit www.audinate.com.

Clock Synchronisation and Routing
The DN32-DANTE card features a high-precision word clock that can serve as the clock master for the Dante network and your console. Alternately, the console can provide the master word clock that is distributed to the Dante network. Dante supports Unicast and Multicast flows and allows for signal routings on a per-channel basis. All routings and device parameters can be controlled from anywhere in the network, and are exclusively made using the Dante Controller application, which is available free of charge at www.audinate.com.

Computer Audio Interface Option
The Dante Virtual Soundcard application, which is available for PC and Mac computers, allows streaming to and from Dante enabled devices on a networked personal computer – including remote recording or playback over standard IP infrastructure. Live recordings of up to 64 channels are possible by receiving signals from more than one mixing console.

Windows WDM and ASIO, and Mac OS X Core Audio are supported to ensure low-latency signal handling by your PC. The Dante Virtual Soundcard application is optionally available at www.audinate.com.

In the Box

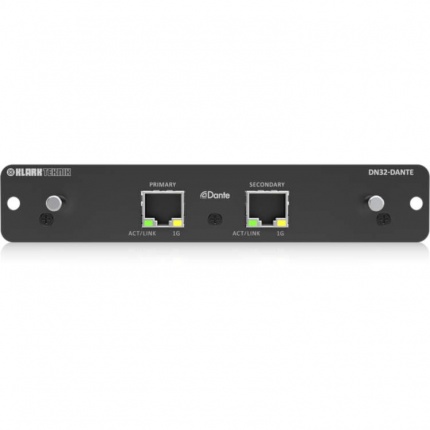

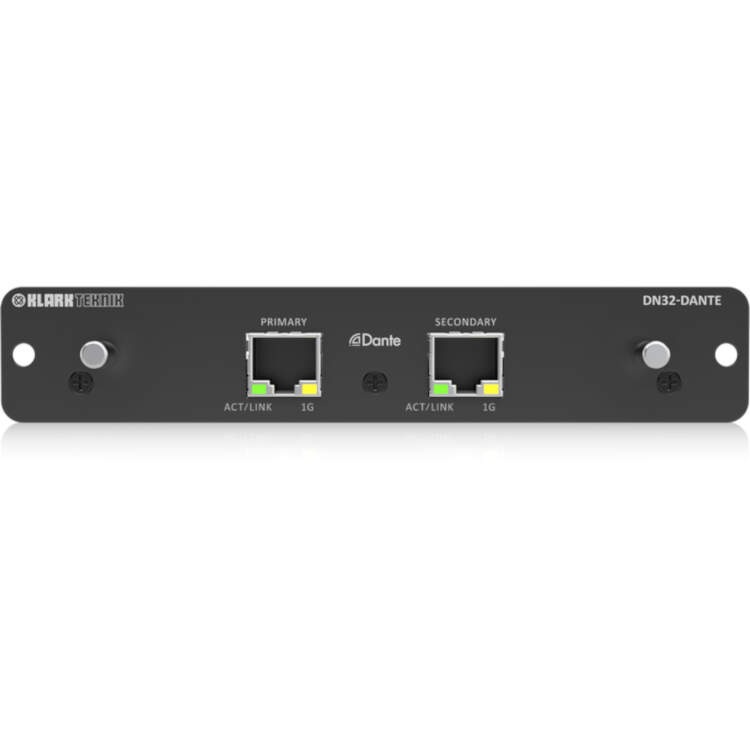

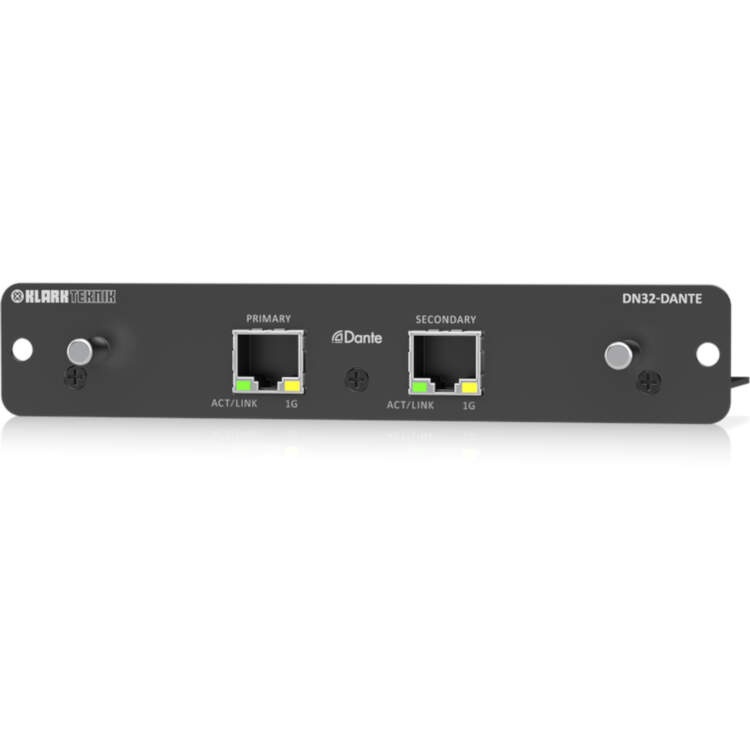

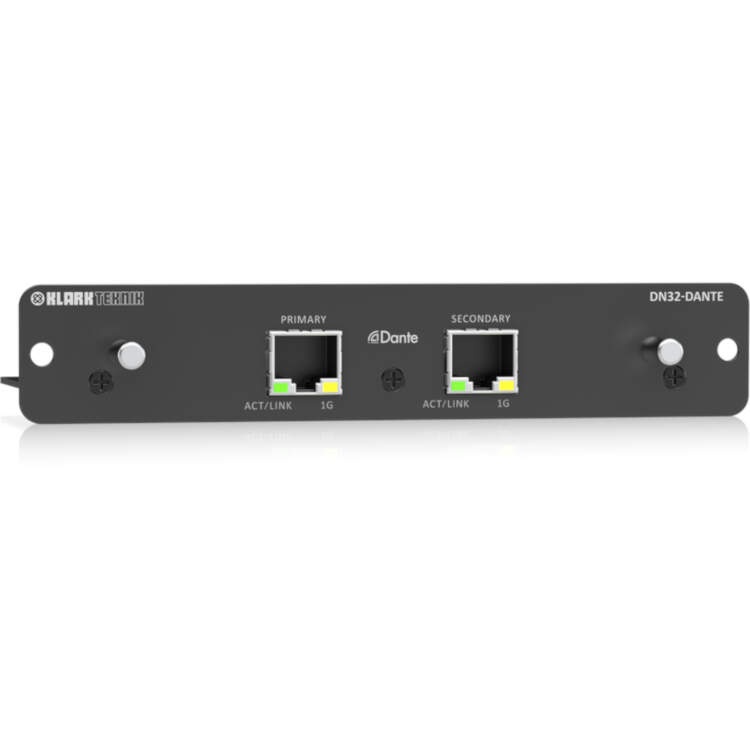

Klark Teknik DN32-DANTE 32-Channel Dante Expansion Card for M32 & X32 Consoles
